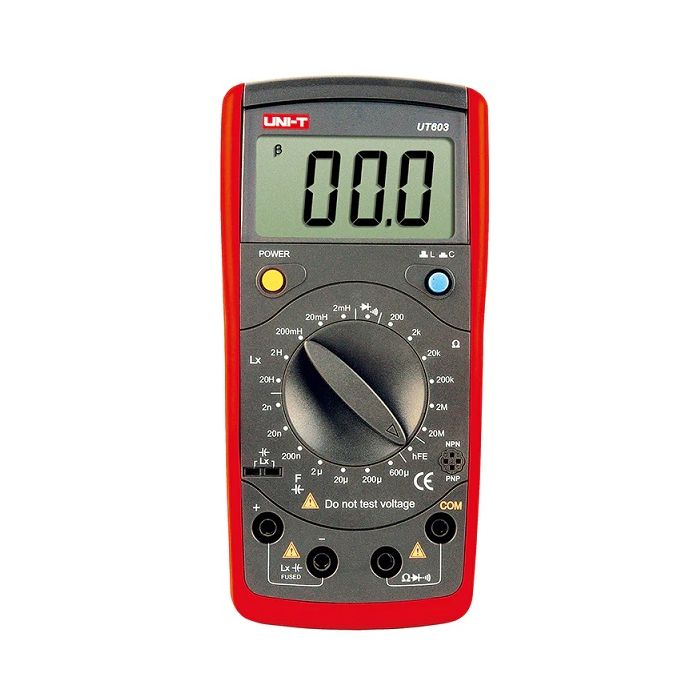

Uni-T: Digital Inductance Capacitance LCR Meter - UT603

FEATURES:

• Display Count: 1999
• Manual Range
• Diode
• Transistor
• Low Battery Indication
• Resistance
• Capacitance
• Inductance
• Continuity test (with buzzer)
• Diode test
• Transistor test

SPECIFICATION:

• Brand: UNI-T
• Model: UT603
• Resistance (Ω): 200Ω/2KΩ/20KΩ/200KΩ/2MΩ/20MΩ ±(0.8%+1)
• Capacitance (C): 2nF/20nF/200nF/2uF/20uF/200uF/600uF ±(1%+5)
• Inductance (H): 2mH/20mH/200mH/2H/20H ±(2%+8)

General Characteristic:

• Power: 1 x 9V Battery(6F22)
• Product Net Weight: 312g
• Product Size: 172mm x 83mm x 38 mm
• LCD Size: 61mm x 32 mm
• Product Color: Red and Grey
• Package Size: 21.5 x 16 x 6cm / 8.5 x 6.2 x 2.2in
• Package Weight: 418g / 14.7oz

Package included:

• 1 x UNI-T UT603 Modern Inductance Capacitance Meter
• 2 x Allligator Clips(Red & black)
• 1 x English Manual
