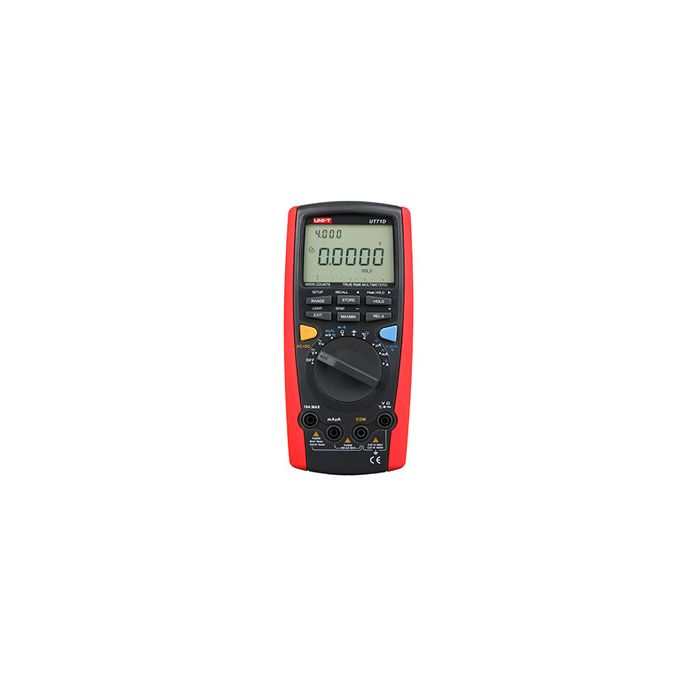

UNI-T (UT71D) Intelligent Digital Multimeter With 2.9" LCD

FEATURES:

1. LCD backlight makes you see your testing data clearly
2. USB data transmission / full icon display / function setting
3. With analog section / 10A fuse / true RMS
4. With current measurement offset alarm
5. Strong case for protection, do not be afraid of dropping.
6. Suitable for voltage / current / capacitor / resistance / frequency testing and analysis
7. Powered by 1 x 9V 6F22 battery

SPECIFICATIONS:

1. Dual backlight LCD screen 19999 count, can set up two analogue bars display
2. Auto range / Manual range switch, 0.05% basic DCV accuracy
3. Function setting: Full function slot can be set; can set up to measure the upper and lower limits, over range alarm.MAX/MIN/REL
4. Peak hold function: The highest / lowest value of the automatic pulse signal
5. USB data transmission: quickly send data to the PC through USB.
6. Bluetooth data transmission: Real time monitoring measurement data by bluetooth connection to the phone.
7. AC+DC Voltage measurement.
8. 45 Hz-100 KHz response measurements of high frequency signals.
9. 100 sets of data storage function: can set the storage interval automatic recording measurement data.
10. （4-20mA)% loop test : For the measurement of current transmitter.
11. Temperature measurement function, equipped with K type point contact temperature probe
12. Data hold, auto power off , misplug alarming, full range overload protection.
13. Instrument design meet safety standards for IEC 61010-1, double insulation, over voltage standard, (CAT II 1000V、CAT III 600V) pollution level 2.
14. Conforms to the standard of EU 16.Conforms to the standard of UL

PHYSICAL DIAGRAM:

RELATED DOCUMENTS:

1. Datasheet.
2. Software.

PACKAGE INCLUDES:

1. 1 X UNI-T (UT71D) Intelligent Digital Multimeter With 2.9" LCD
