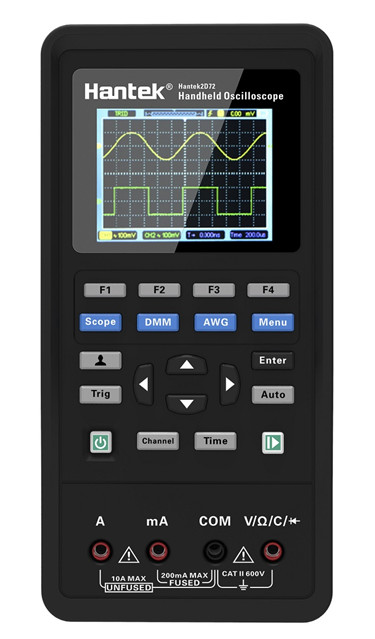

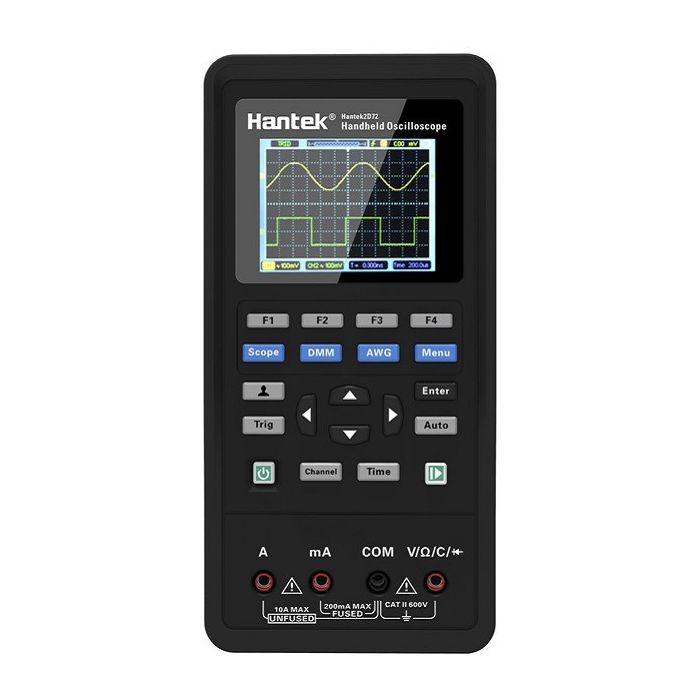

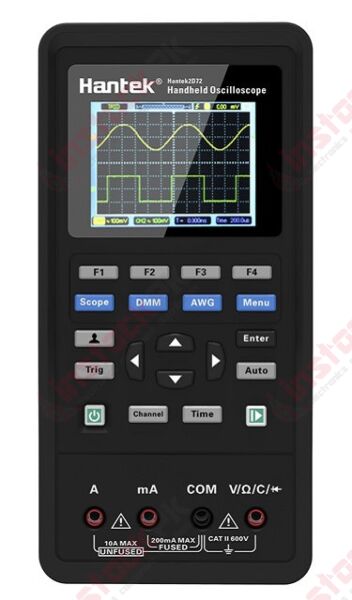

Hantek2D72 3-in-1 70 MHz Oscilloscope, Waveform Generator & Digital Multimeter

Features:

2 Channel Oscilloscope + Digital multimeter + arbitrary waveform generator
Oscilloscope: 70MHz Bandwidth with 2 Channels
Digital Multimeter: AC/DC voltage, AC/DC current, resistance, break, capacitance, and diode function
Arbitrary Waveform Generator: 0~10MHz Output, Sine, Square, Ramp, Pulse, Noise, etc
320*240 TFT Display, 5200mAh Lithium Battery,Over 24 Hours Cruising Ability
Auto-scale function
Ships with 2 Oscilloscope probes and 2 BNC to 2 alligator clip test lead sets

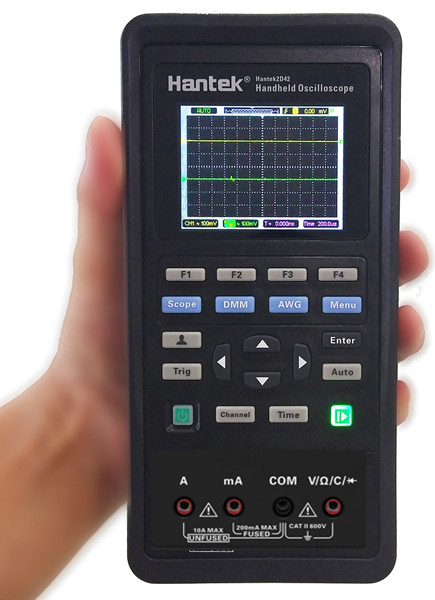

The HANTEK2D72 is an all-new 70 MHz handheld oscilloscope from Hantek featuring a compact and lightweight design with a new generation of 3-in-1 multifunction tester that offers an oscilloscope, signal source and multimeter. It has a small form factor that is easy to hold in one hand and it has a stand that was designed to support multi-angle viewing adjustment. Ultra-low-power design with a Type C charging interface affords a full day or standbytwo months 2 hours battery charge allow working one full day of us or a standby time of two months. It also has a High-definition color LCD screen with a nice clear display with a simple easy to operate Minimalist keyboard design.

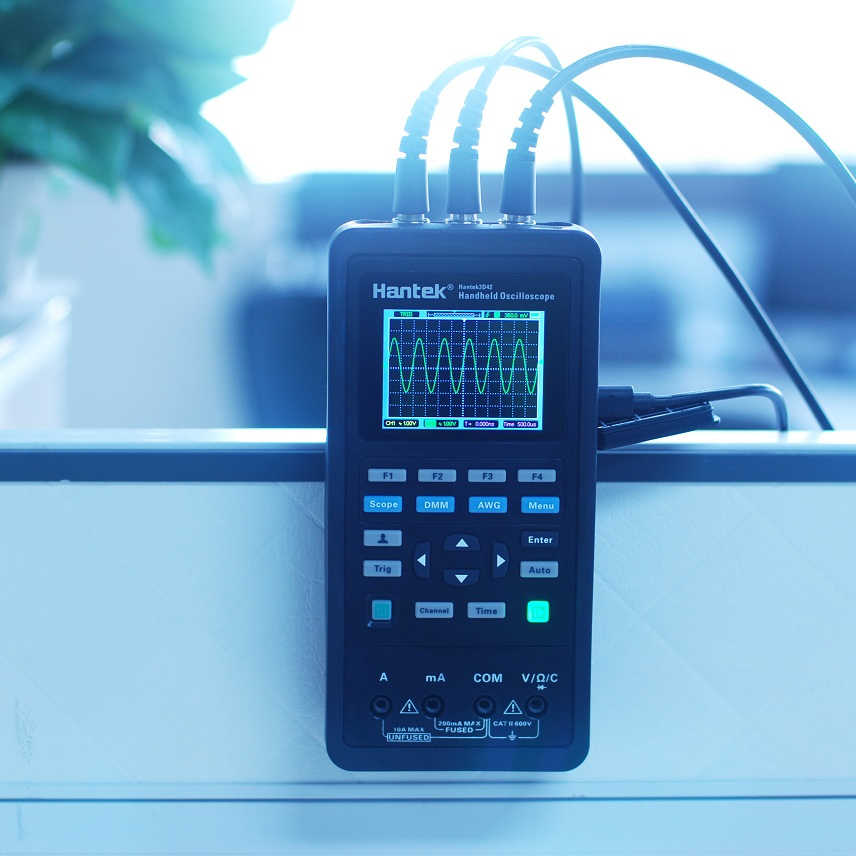

	Great Functions with a small size! Color LCD Screen Legible even in bright sunlight Soft colors for a clear waveform display High quality case with silicon protective cover for impact and heat resistance Powered by two 18650 lithium batteries for a full day of run time or 8+ weeks stand by. Easy to use Minimalist keyboard design to simplify operation.
	3-IN-1 Dual Channel Oscilloscope + Waveform Generator = Multimeter OSCILLOSCOPE 250M Sampling Rate 70 MHz Bandwidth 10mV~10V Vertical resolution Auto automatic measuring function Key tone settings Adjustable backlight brightness, backlight duration & auto power off time Digital voltmeter function Cursor measurement reference waveform waveform Storage function
	WAVEFORM GENERATOR 250MSa/s Sampling rate 12 bits vertical resolution Sine: 1Hz~25MHz Square: 1Hz~10MHz Triangular: 1Hz~1MHz Trapezoid: 1MHz~5MHz Frequency resolution: 1Hz Output impedance: 50Ω 4 types of arbitrary waveforms
	MULTIMETER Multi-functional multimeter that can be used to measure: AC/DC voltage/current Resistance Diode Capacitance On-Off Ttest High sensitivity and accuracy, clear display, strong overload ability, and ultra portable.
	INTELLIGENT CHARGING CONTROL Can be recharged by either high-current 5V/2A or via standard computer USB interface. Unit can be charged while in use.

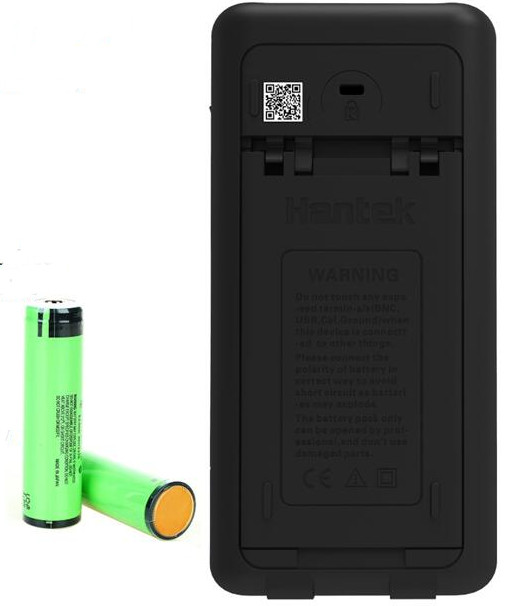

	BUILT-IN LARGE CAPACITY LITHIUM BATTERY 18650 replaceable lithium battery power system. 5V/2A CHARGER TYPE C CHARGING & DATA TRANSMISSION CABLE Type C power + data transfer interface, can share the charger and data cable with your mobile phone. ULTRA LOW POWER DESIGN Each 2 hour battery charge allows a full day of use or two months of standby.

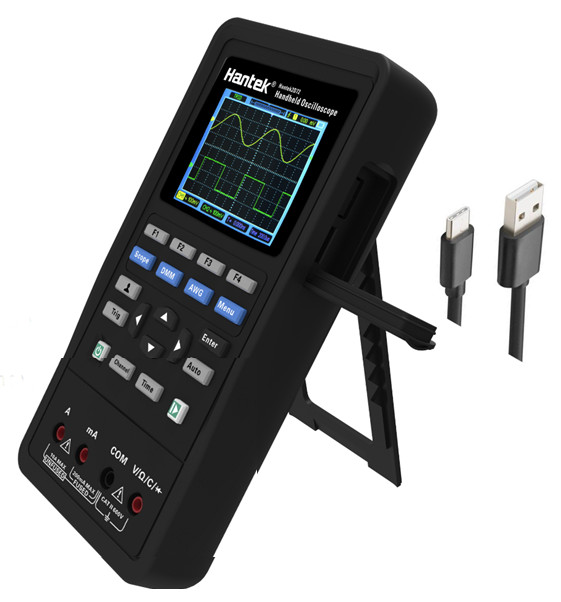

	Multi position support stand allows for convenient viewing angle.

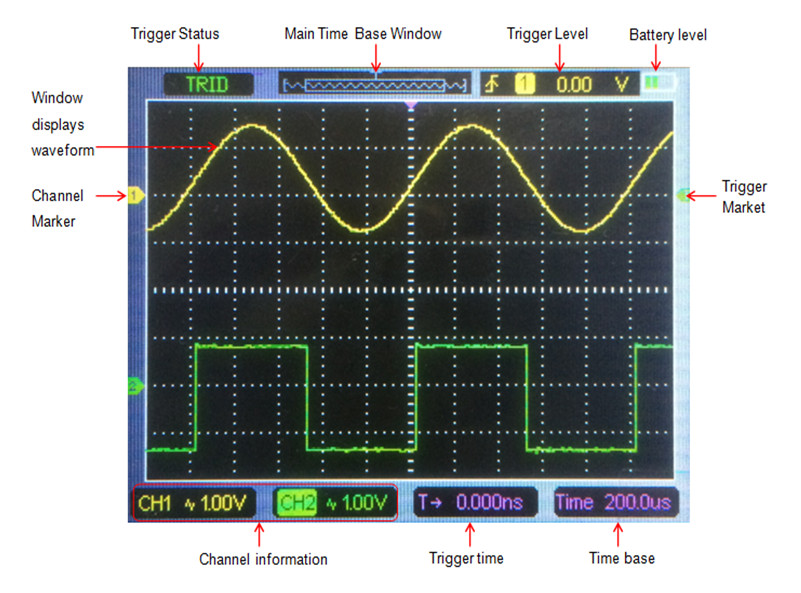

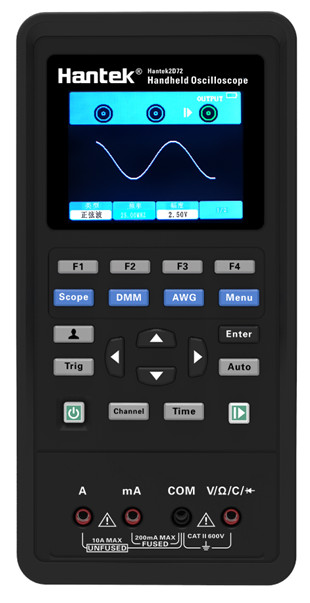

FUNCTION REVIEW

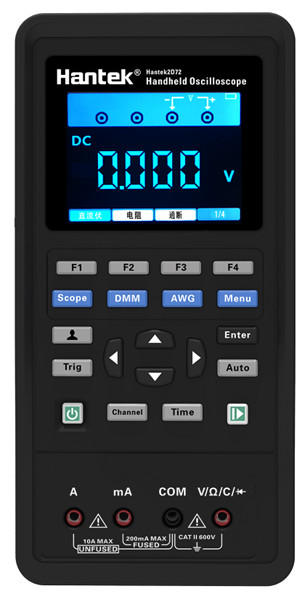

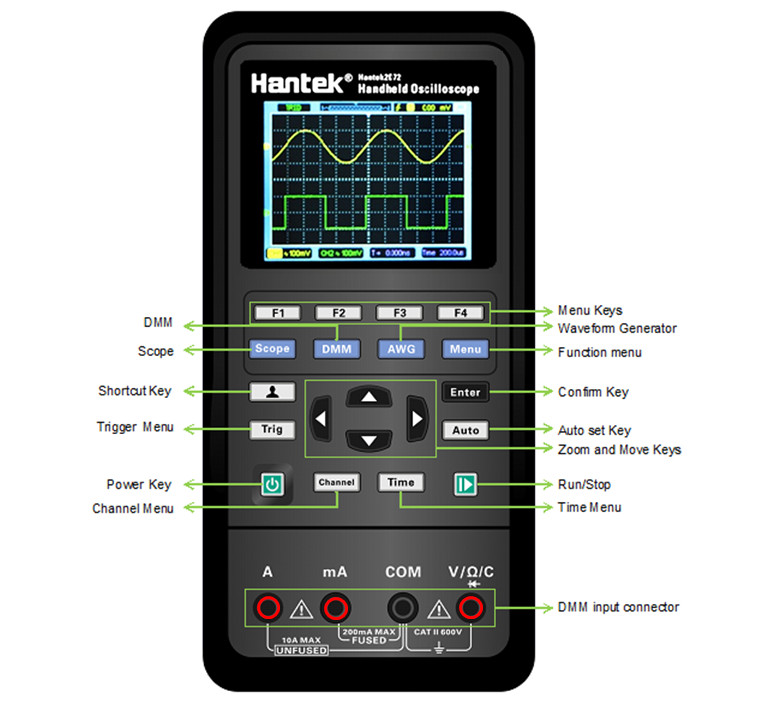

CONNECTIONS REVIEW

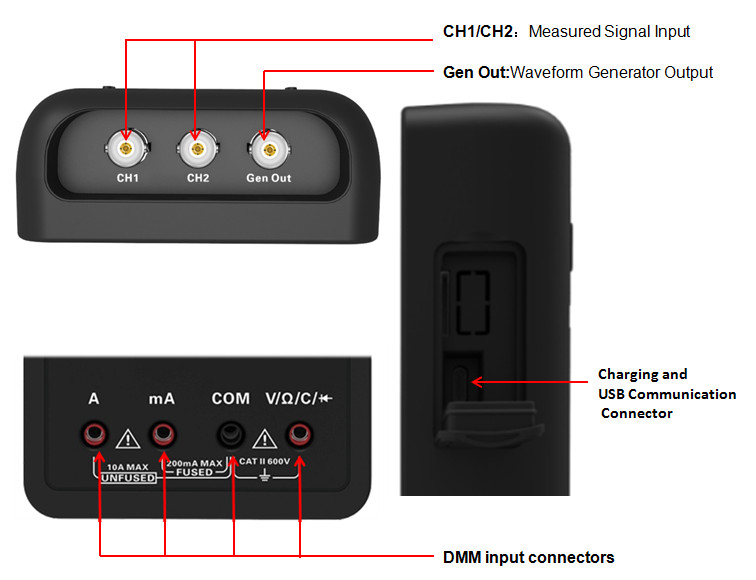

INTERFACE REVIEW

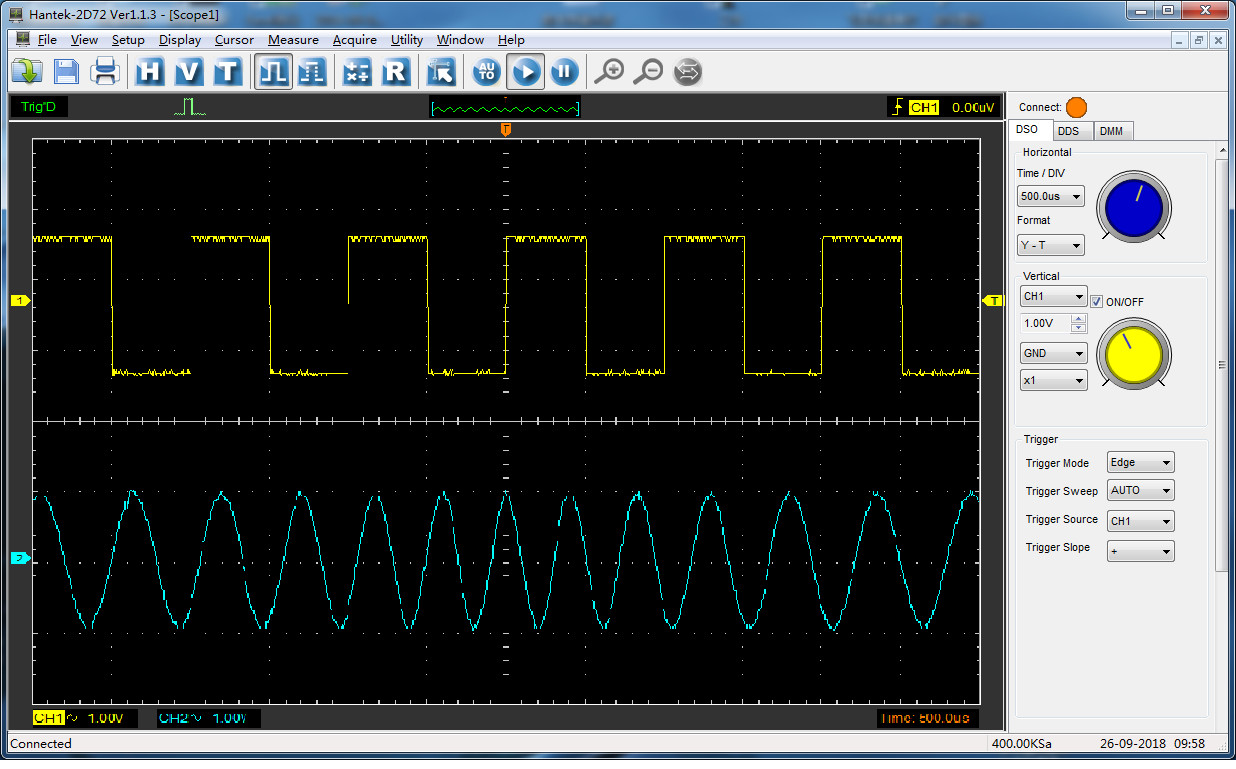

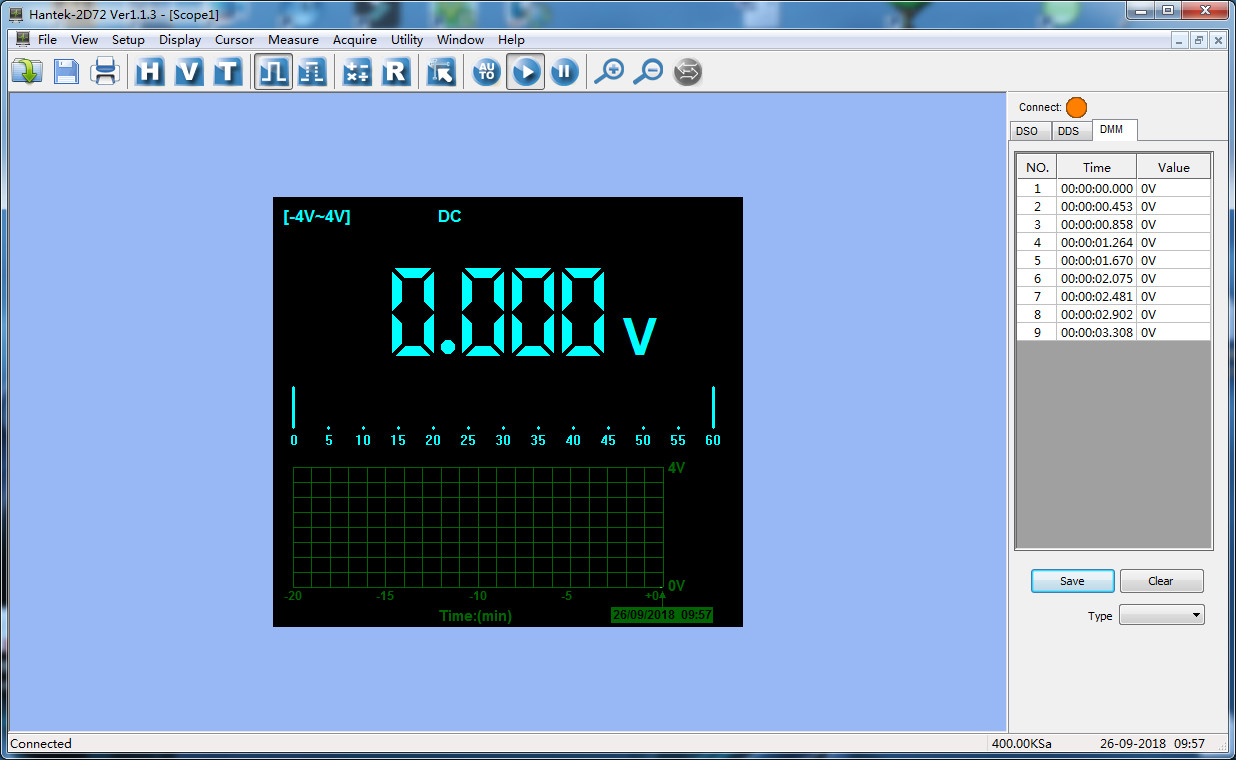

Powerful PC Software Powerful oscilloscope functions: 20 kinds of automatic measurement, curcor measurement, waveform printing and saving functions, REF and Math functions, Pass / Fail functions.

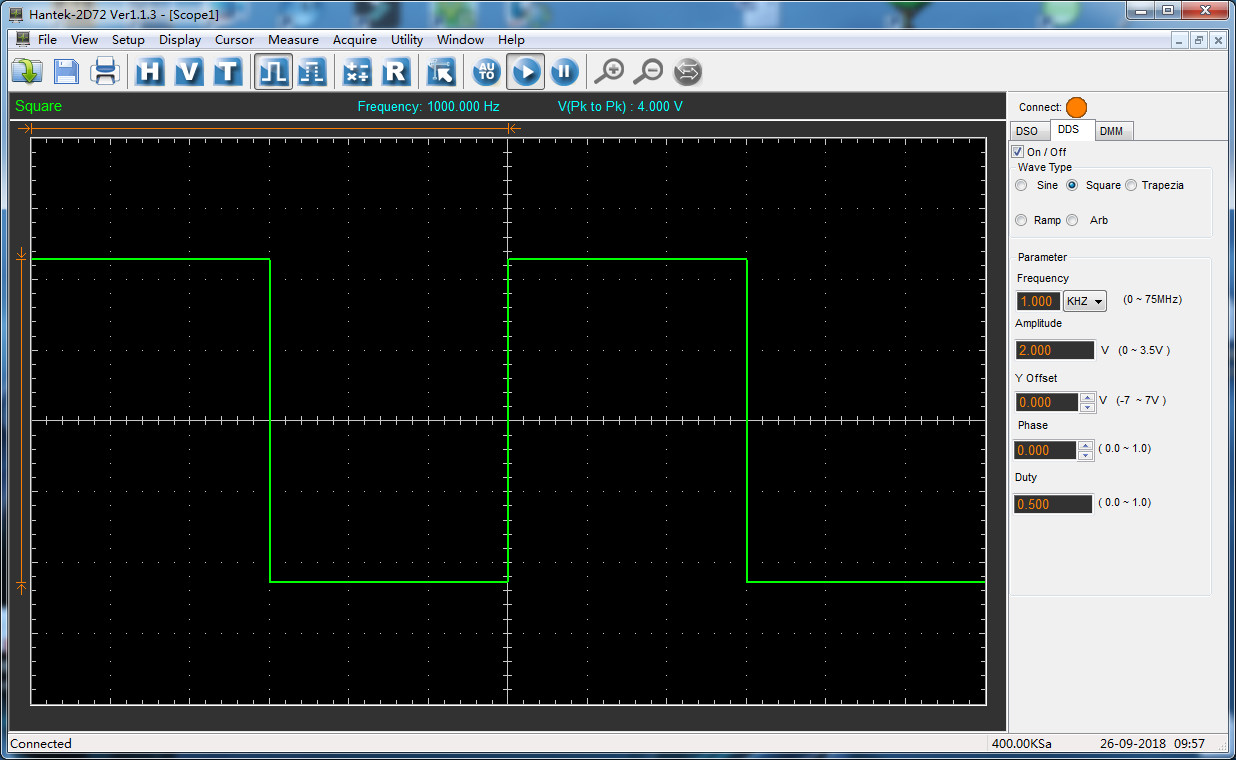

The waveform generator is able to draw and output arbitrary waveforms on its PC software
Its multimeter with recorder function, which support the measurement resultsto nerate the curves and analyze them.

Specifications
Aquisition	Channel	OSC+ DMM + AFG
	Bandwidth	70MHz
	Sample Rate	250MSa/s
	Mode	Normal, Peak Detect,
	Average	N acquisitions, all channels simultaneously, N is selectable from 1-128
Input	Input Coupling	DC, AC, GND
	Input Impedance	Resistance: 1MΩ; Capacitance: 25pF
	Probe Attenuation Factors	1X, 10X, 100X, 1000X
	Maximum Input Voltage	200Vpk (DC + peak)
Horizontal	Scanning Speed Range(Sec/Div)	5ns/div ~ 500S/div (1-2-5 sequences)
	Delay Time Accuracy	±50ppm (any interval ≥1ms)
	Wave form Interpolation	Step, Linear, Sin(x)/x
	Memory Depth(Sample Points)	6k
Vertical	A/D converter	8 bit resolution
	Vertical Scale(Volt/div) Range	10mV ~ 10V/div @ x1 probe
		100mV ~ 100V/div @ x10 probe
		1V ~ 1000V/div @ x100 probe
		10V ~ 10KV/div @ x1000 probe
	Position Range	±4division
	Selectable Analog Bandwidth Limit(typical)	20MHz
	Lower Frequency Response(-3dB)	≤ 10Hz (at input BNC)
	Rise Time at BNC(typical)	≤7ns
	DC Gain Accuracy	±3%
Trigger	Trigger Source	CH1, CH2
	Trigger Mode	Auto, Normal and Single
	Trigger Type	Edge trigger, Alternate trigger
	Trigger Sensitivity	0.02 div increments
	Trigger Level Range	±4V
Input	Input Coupling	DC, AC or GND
	Input Impedance, DC coupled	1MΩ ±2% for 20pF ± 3 pF
	Probe Attenuation	1X, 10X
	Max. Input Voltage	CAT I and CAT II: Installation type: 300VRMS(10×)
Signal Source Mode	Waveform Impedance	DC~10MHz
	DAC Clock	2K~100MHz adjustable
	Frequency Resolution	0.1%
	Channel Count	1CH Waveform Output
	Waveform Depth	4KSa
	Waveform Range	±3.5V Max.
Meter Mode	Maximum Resolution	4,000 Counts
	DMM Testing Modes	Voltage, Current, Resistance, Capacitance, Diode & Continuity
	Maximum Input Voltage	AC: 400V, DC: 400V
	Maximum Input Current	AC: 10A, DC: 10A
	Input Impedance	40 MΩ
	Measurement	Range	Accuracy	Resolution
	DC Voltage	400.00mV	± (0.8% + 5)	100uV
		4.000V		1mV
		40.00V		10mV
		400.0V		100mV
		600.0V	± (1% + 2)	1V
		Overload protection: 400mV: 250V, other: 600Vrms.
	AC Voltage	4.000V	± (1.2% + 5)	1mV
		40.00V		10mV
		400.0V		100mV
		600.0V	± (1% + 2)	1V
		Frequency: 40Hz~400Hz;
		Frequency of 400V and 600V: 40Hz~100Hz
	DC Current	40.00mA	± (1% + 2)	10uA
		200.0mA	± (1.5% + 2)	100uA
		4.000A	± (1.8% + 2)	1mA
		10.00A	± (3% + 2)	10mA
		Overload protection:
		self restoring fuse: 200mA/250V, 4A and 10A range no fuse.
	AC Current	40.00mA	± (1.3% + 2)	10uA
		400.0mA	± (1.8% + 2)	100uA
		4.000A	± (2% + 3)	1mA
		10.00A	± (3% + 5)	10mA
		Frequency: 40Hz~400Hz
		self restoring fuse: 200mA/250V, 4A and 10A range no fuse.
	Resistance	400.0Ω	±(1% + 3)	0.1Ω
		4.000KΩ	±(1.2% + 5)	1Ω
		60.00KΩ		10Ω
		400.0KΩ		100Ω
		4.000MΩ		1KΩ
		40.00MΩ	± (1.5%±3)	10KΩ
		Overload protection: 220Vrms
	Capacitance	40.00nF	±(3% + 5)	10pF
		400.0nF		100pF
		4.000uF		1nF
		40.00uF		10nF
		100.0uF		100nF
		Overload protection: 220Vrms
	Diode	0V~2.0V
	On-Off	<50Ω
General Features	Display	320*240 TFT LCD
	Interface	USB Device
	Voltage	DC Input: 5V, 5200mAh Lithium Battery
	Size	7.83" x 3.86" 1.61" / 199 X 98 X 41 (mm)
	Weight	10.85 oz / 0.3kg
	Included accessories	2 oscilloscope probes 2 BNC to 2 alagator clip test lead sets 1 DMM test lead set 1 USB Charging/Data Cable 1 USB Charger (110V AC Input) 1 Users Manual/Support Software on CD-ROM

Tech Specs

Channels: 2

Sampling Rate: 0-1GSa/s

Memory: <50k

Rise Time: >3.5ns

Screen Type: LCD

Portable: Handheld

Bandwidth: 0-99MHz

Exact Bandwidth: 70MHz

Exact Sampling Rate: 250MSa/s

More Information

Part Number	2D72
Manufacturer	Hantek
Weight (KG)	1.200000
Product Availability	In Stock
