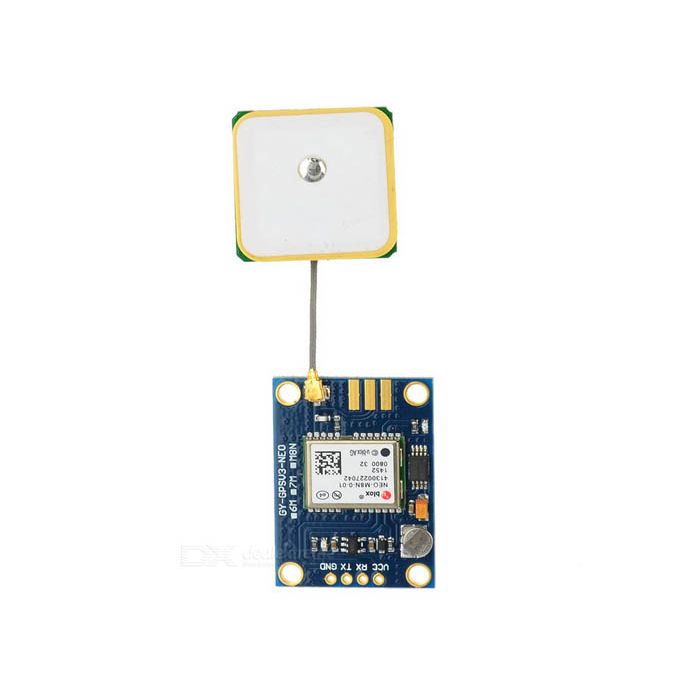

Ublox: Flight Controller GPS Module NEO-M8N-001

The NEO-M8 series of standalone concurrent GNSS modules is built on the exceptional performance of the u-blox M8 GNSS (GPS, GLONASS, BeiDou, QZSS, SBAS and Galileo-ready1) engine in the industry proven NEO form factor.The NEO-M8 series provides high sensitivity and minimal acquisition times while maintaining low system power.The NEO-M8M is optimized for cost sensitive applications, while NEO-M8N/M8Q provides best performance and easier RF integration. The NEO form factor allows easy migration from previous NEO generations. Sophisticated

RF-architecture and interference suppression ensure maximum performance even in GNSS-hostile environments.The NEO-M8 series combines a high level of robustness and integration capability with flexible connectivity options. The future-proof NEO-M8N includes an internal Flash that allows simple firmware upgrades for supporting additional GNSS systems. This makes NEO-M8 perfectly suited to industrial and automotive applications.

FEATURES:

1. Adopt original imported u-blox NEO-M8N-0-01 GPS module;
2. With ceramics active antenna, it has super signal;
3. EEPROM power-down parameter data configuration and storage;
4. With data backup battery, LED;
5. Diameter of Mounting Recess: 3mm;
6. Supply Voltage: 3~5V;
7. The Default Baud Rate: 9600;
8. Compatible with different flight control module;
9. With GPS computer testing software.

SPECIFICATIONS:

1. Noise figure On-chip LNA (NEO-M8M). Extra LNA for
2. Anti jamming Active CW detection and removal.
3. Memory ROM (NEO-M8M/Q) or Flash (NEO-M8N)
4. Supported antennas Active and passive
5. Odometer Travelled distance
6. Data-logger For position, velocity, and time (NEO-M8N)
7. Operating temp. –40° C to 85° C
8. Storage temp. –40° C to 85° C (NEO-M8N/Q)
9. RoHS compliant (lead-free)
10. Supply voltage 1.65 V to 3.6 V (NEO-M8M)
11. 2.7 V to 3.6 V (NEO-M8N)
12. Power consumption4 23 mA @ 3.0 V (continuous)
13. 5 mA @ 3.0 V Power Save Mode
14. (1 Hz, GPS mode only)
15. Backup Supply 1.4 to 3.6 V

PIN CONFIGURATIONS:

GPS CHIP PARAMETERS:

1. Receiver type 72-channel u-blox M8 engine
2. GPS/QZSS L1 C/A, GLONASS L10F, BeiDou B1
3. SBAS L1 C/A: WAAS, EGNOS, MSAS
4. Galileo-ready E1B/C (NEO-M8N)
5. Nav. update rate1 Single GNSS: up to 18 HZ
6. Concurrent GNSS: up to 10 Hz
7. Position accuracy2 2.0 m CEP
8. Acquisition2 Cold starts: 26 s
9. Aided starts: 2 s
10. Reacquisition: 1.5 s
11. Sensitivity2 Tracking & Nav: –167 dBm
12. Cold starts: –148 dBm
13. Hot starts: –156 dBm
14. Assistance AssistNow GNSS Online
15. AssistNow GNSS Offline (up to 35 days)3
16. AssistNow Autonomous (up to 6 days)
17. OMA SUPL & 3GPP compliant
18. Oscillator TCXO (NEO-M8N/Q).

RELATED DOCUMENTS:

1. Datasheet.

PACKAGE INCLUDES:

1. 1 X U-blox Flight Controller GPS Module NEO-M8N-001
