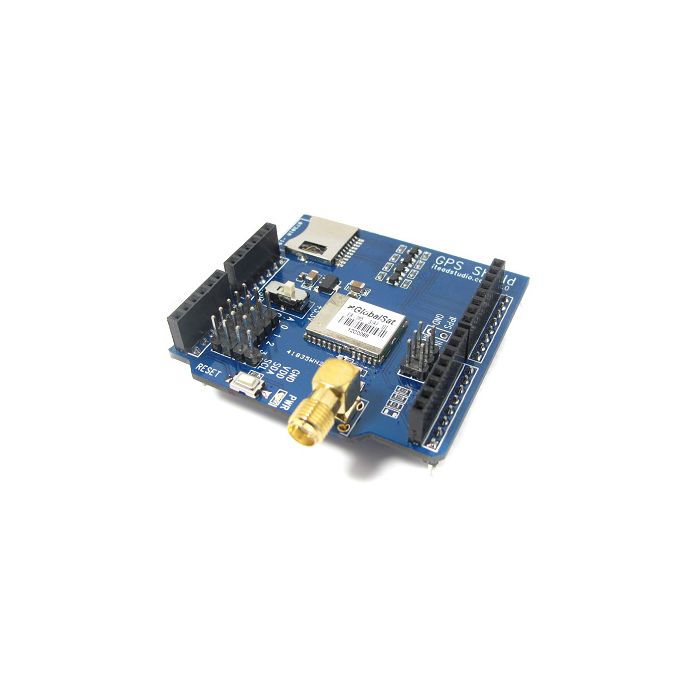

GPS Shield EB-5365RE (V3.1) For Arduino

SKU
MD-00264
PKR5,000.00
Quantity: 0
Arduino GPS shield is a GPS module breakout board designed for Global Positioning System receiver with SD interface. It is easy to use for recording the position data into SD card.
  • Buy 3 for PKR4,750.00 each and save 5%
  • Buy 10 for PKR4,600.00 each and save 8%
  • Buy 50 for PKR4,500.00 each and save 10%



Arduino GPS shield is a GPS module breakout board designed for Global Positioning System receiver with SD interface. It is easy to use for recording the position data into SD card. 5V/3.3V compatible operation voltage level make it compatible with Arduino boards, leaf maple, IFlat32 and other arduino compatible boards. It is a compact, high performance, and low power consumption GPS engine board. It uses SiRF Star III chipset which can track 48 satellites at a time and perform fast TTFF in weak signal environments.

FEATURES:





  1. With Micro SD interface
  2. Active antenna design with high receive sensitivity, compatible normal antenna
  3. Extremely fast time to first fix at low signal level
  4. UART interface
  5. Operation temperature: -40℃ ~ +85℃
  6. Frequency: L1, 1575.42 MHz
  7. Channel: 48 satellite signals
  8. Sensitivity: -163 dBm
  9. Location: 10 meters , 2D RMS;  5 meters , 2D RMS, WAAS open
  10. Coordinates: WGS-84
  11. Repositioning: Average 0.1 seconds
  12. Height restrictions: Maximum 18,000 meters (60,000 feet)
  13. Speed limit: maximum 515 m / sec (1000 section)
  14. Shake limit: 20m / sec ** 3
  15. Power consumption: 42mA (search positioning mode) /25mA ( tracking mode )
  16. Transmission speed: 4,800 to 57,600 bps adjustable
  17. Antenna: active or passive

RELATED D0CUMENTS:





  1. GPS Shield EB-5365RE (V3.1) For Arduino Datasheet
  2. GPS Shield EB-5365RE (V3.1) For Arduino schmatic

APPLICATIONS:





  1. Automotive navigation
  2. Personal positioning
  3. Fleet management
  4. Marine navigation

PACKAGE INCLUDES:





  1. 1 X GPS Shield EB-5365RE (V3.1) For Arduino




Part Number NA
Weight (KG) 0.100000
Manufacturer Made in China
Voltage (Min) 3.3V
Voltage (Max) 5V
Output Voltage NA
Power NA
Current (A) 42mA (search positioning mode) /25mA ( tracking mode )
Frequency 1575.42 MHz
Load Cell (kg) NA
Output Type Digital and Analog
Range 10 meters , 2D RMS
Temperature Range (Min) -40°C
Operating System NA
Resistance Value (Ohm) NA
Baud Rate NA
Interface NA
Num of Pin's NA
Size (mm) 55.88mm X 54.1mm X 1.6mm
