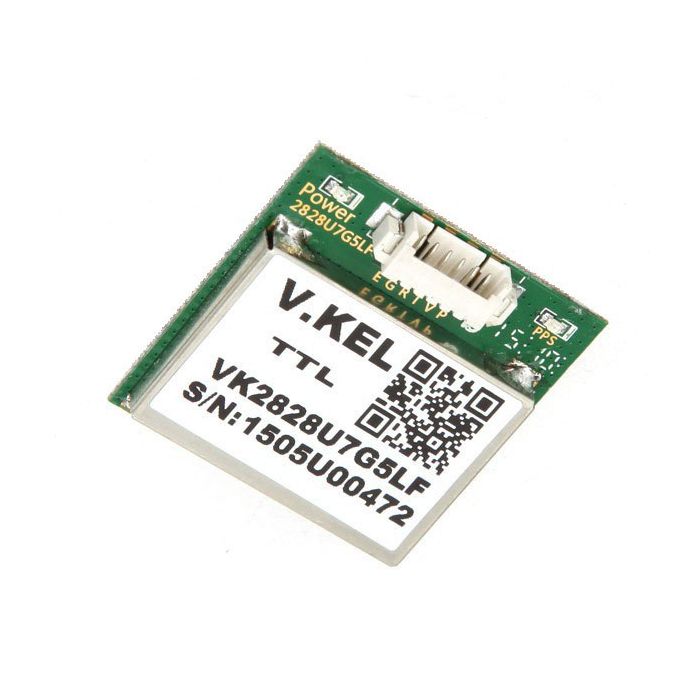

V.KEL U7 Single Mode GPS Module VK2828U7G5LF with Antenna

SKU
MD-00182
-11%
Special Price PKR1,550.00 was PKR1,750.00
Quantity: 20
V.KEL GPS Module VK2828U7G5LF with Antenna



FEATURES:





  1. Standard 25*25*4MM high sensitivity GPS antenna
  2. UART/TTL,232 optional interface
  3. Adopt KDS 0.5 PPM High Precision TCXO
  4. Built-in SQI Flash
  5. Built-in RTC crystal and Picofarads capacitance.faster hot root
  6. Built-in LNA,Low-noise amplifier
  7. Support AssistNow Online and AssistNow Offline
  8. GPS,GLONASS,GALILEO,SBAS(WAAS,EGNOS,MSAS,GAGAN) Hybrid Engine

SPECIFICATIONS:





  1. Chip:UBX-G7020-KT
  2. C/A code,1.023MHz Stream
  3. Receive frequency:L1 [1575.42MHz]
  4. Receive channel:56CH
  5. S11 SWR:<=1.3
  6. S11 Smith:50Ohm+(-)5%
  7. S21 Log Mag:>=20.0dB
  8. S22 SWR:<=1.3

PARAMETERS:




  1. Horizontal position accuracy: <2.5m
  2. Rate:<0.1m/s
  3. Direction:<0.5 Degrees
  4. Timing accuracy:30ns
  5. Reference coordinate system:WGS-84
  6. Maximum altitude:50,000 m
  7. Acceleration:<4g
  8. Tracking sensitivity:-162dBm
  9. Catch sensitivity:-160dBm
  10. Root time:29s (in average)
  11. Warm root time:28s(in average)
  12. Hot root time:1s(in average)
  13. AGPS:3s
  14. Rate:9600bps.(optional:1200,2400,4800,19200,39400,57600,115200,460800,921600)
  15. Operation temperature:-40 ~ +85
  16. Wide voltage:+3.3V ~ +5V

PACKAGE INCLUDES:





  1. 1 X V.KEL VK2828U7G5LF GPS Module with Antenna
Part Number VK2828U7G5LF
Manufacturer Made in China
Weight (KG) 0.010000
