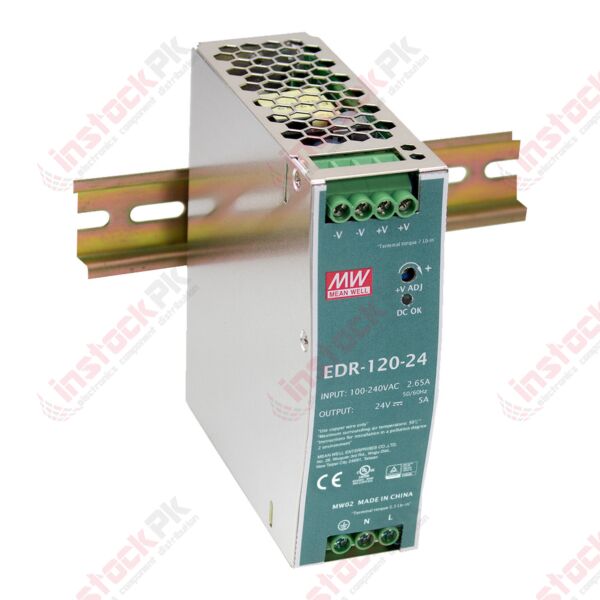

MeanWell: EDR-120-24, Single Output Industrial DIN Rail Power Supply (24V, 5A, 120W)
SKU
MD-02319
PKR 10,500.00
🔥 High Demand Allocation:
1 Units
⚠️ Limited Quantity Remaining
- Buy 3 for PKR 9,975.00 each and save 5%
- Buy 10 for PKR 9,660.00 each and save 8%
Category: Power Supply
The MEAN WELL EDR-120-24 is an economical, slim-line 120W AC-to-DC DIN rail power supply designed for space-sensitive industrial enclosures. Delivering a highly stable 24V, 5A output, it features a robust metal housing that maximizes heat dissipation through natural air convection. Fully approved under the UL 508 standard for industrial control systems, this unit incorporates complete protection circuits against short circuits, overloads, overvoltages, and high temperatures, making it a dependable choice for automation and manufacturing lines.
Technical Specifications
| Parameter | Specification Details |
|---|---|
| Output DC Voltage | 24V |
| Rated Current | 5A |
| Current Range | 0 ~ 5A |
| Rated Power | 120W |
| Voltage Adj. Range | 24 ~ 28V (Adjustable via built-in potentiometer) |
| Input Voltage Range | 90 ~ 264VAC or 127 ~ 370VDC |
| Input Frequency | 47 ~ 63Hz |
| Efficiency (Typ.) | 87.5% |
| Ripple & Noise (Max.) | 120mVp-p |
| Voltage Tolerance | ±1.0% |
Physical & Mechanical Properties
- Form Factor: Slim-line metal case design
- Width: 40 mm (saves premium cabinet space)
- Height: 125.2 mm
- Depth: 113.5 mm
- Net Weight: 0.60 kg per unit
- Mounting Compatibility: Snap-on installation for standard TS-35 / 7.5 or TS-35 / 15 mounting rails
- Wiring Connection: Heavy-duty screw terminal blocks
Protections & Safety Standards
- Overload Protection: 105 ~ 150% rated output power (Constant current limiting type, automatic recovery)
- Overvoltage Protection: 29 ~ 33V (Shuts down output voltage, requires re-powering to recover)
- Overtemperature Protection: Shuts down output voltage, automatically recovers when the temperature drops
- Cooling: Built-in cooling mechanism by free air convection
- Industrial Safety Standards: UL 508 (Industrial Control Equipment), TUV EN62368-1 approved
- EMC Immunity: Compliant with EN61000-6-2 (EN50082-2) heavy industrial immunity level
Commercial Package Info
- Standard Factory Box: 20 pieces per carton
- Total Carton Weight: 13.0 kg
| Part Number | EDR-120-24 |
|---|---|
| Manufacturer | Mean Well |
| Weight (KG) | 1.200000 |
| Packing Unit | 1 Piece |
| Product Availability | In Stock |
