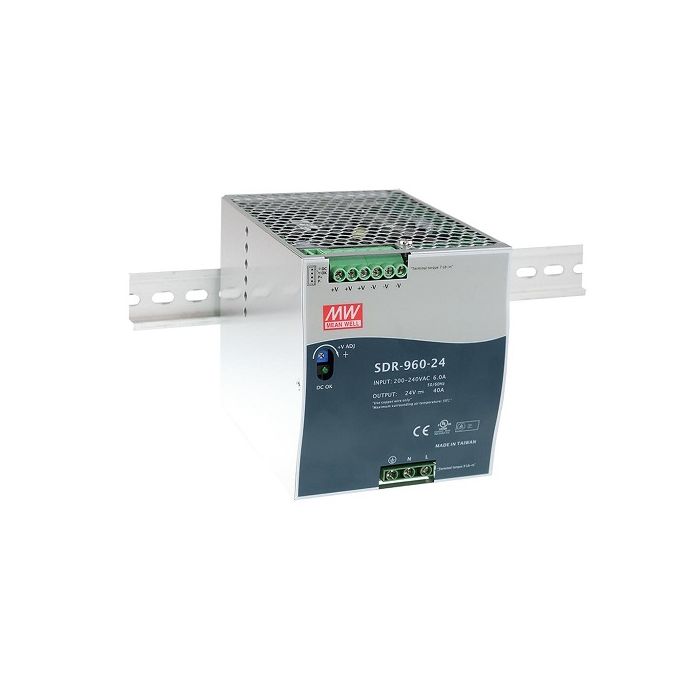

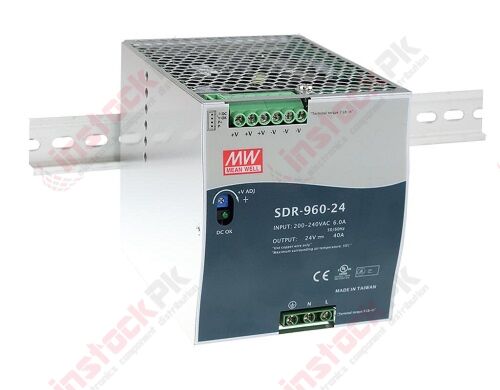

Meanwell: AC-DC Industrial Power Supply DIN rail 24VDC, 40A - SDR-960-24

SKU
MD-01626
-10%
Special Price PKR109,000.00 was PKR121,600.00
Quantity: 1
AC-DC Industrial DIN rail power supply; Output 24Vdc at 40A; Metal casing; Ultra slim width 110mm; Parallel function

Specifications

Technical data Information
Brand
Mean Well
Commodity
8504409090
Item number
SDR-960-24
Warranty pack
36 Months Bring-In
Series
SDR-960
RoHS
Compliant
Description
AC-DC Industrial DIN rail power supply; Output 24Vdc at 40A; Metal casing; Ultra slim width 110mm; Parallel function
Packing quantity
6
Application
Installation UL 508
ITE EN/UL/IEC 60950
Net weight (gram)
2540
Technology
AC/DC

Power Format
DIN rail

Output Power (W)
960

Output Voltage (V)
24

Output Current (A)
40

Input Voltage (V)
180 - 264

IP Rating
No IP assigned

Width (mm)
110

Height (mm)
125.2

Depth (mm)
150

Control Signals
DC OK

Dimming Technology
No Dimming


Datasheet

Datasheets & test reports provided by Mean Well

Manual

Mean Well instruction manuals

Downloads

Part Number SDR-960-24
Manufacturer Mean Well
Weight (KG) 2500.000000
Packing Unit 1 Piece
Product Availability Available on Demand
