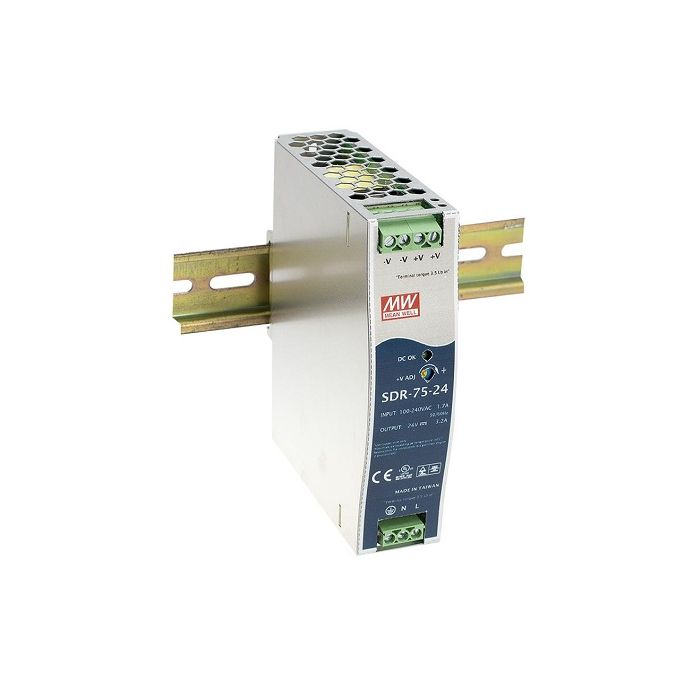

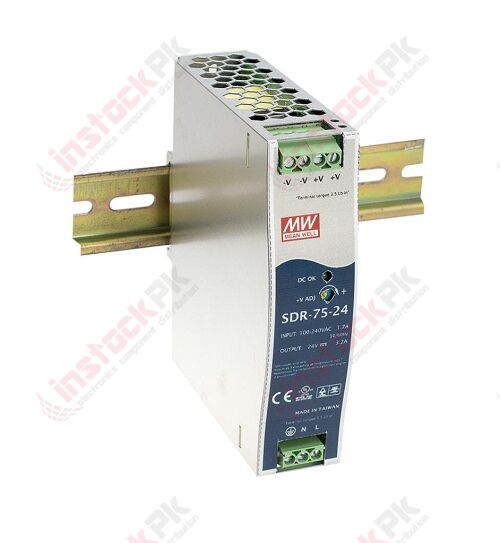

Meanwell: AC-DC Industrial DIN-rail Power Supply; 24VDC; 3.2A - SDR-75-24
SKU
MD-01628
PKR10,900.00
Quantity: 0
AC-DC Industrial DIN rail power supply; Output 24Vdc at 3.2A; Metal casing; Ultra slim width 32mm
- Buy 3 for PKR10,573.00 each and save 3%
- Buy 10 for PKR10,355.00 each and save 5%
- Buy 50 for PKR10,028.00 each and save 8%
Categories: Power Supplies, Power Supply
Specifications
| Technical data | Information | ||
|---|---|---|---|
|
Brand
|
Mean Well
|
Commodity
|
8504409090
|
|
Item number
|
SDR-75-24
|
Warranty pack
|
36 Months Bring-In
|
|
Series
|
SDR-75
|
RoHS
|
Compliant
|
|
Description
|
AC-DC Industrial DIN rail power supply; Output 24Vdc at 3.2A; Metal casing; Ultra slim width 32mm
|
Packing quantity
|
28
|
|
Application
|
Installation UL 508
ITE EN/UL/IEC 60950
|
Net weight (gram)
|
520
|
|
Technology
|
AC/DC
|
||
|
Power Format
|
DIN rail
|
||
|
Output Power (W)
|
75
|
||
|
Output Voltage (V)
|
24
|
||
|
Output Current (A)
|
3.2
|
||
|
Input Voltage (V)
|
88 - 264
Universal Input 110/230V
|
||
|
IP Rating
|
No IP assigned
|
||
|
Width (mm)
|
32
|
||
|
Height (mm)
|
125.2
|
||
|
Depth (mm)
|
102
|
||
|
Dimming Technology
|
No Dimming
|
||
Certification
All available certificates from Mean WellManual
Mean Well instruction manuals-
Manual DIN rail- English
Downloads
- Short Form DIN Rail Power
| Part Number | SDR-75-24 |
|---|---|
| Manufacturer | Mean Well |
| Weight (KG) | 0.520000 |
| Product Availability | Available on Demand |
