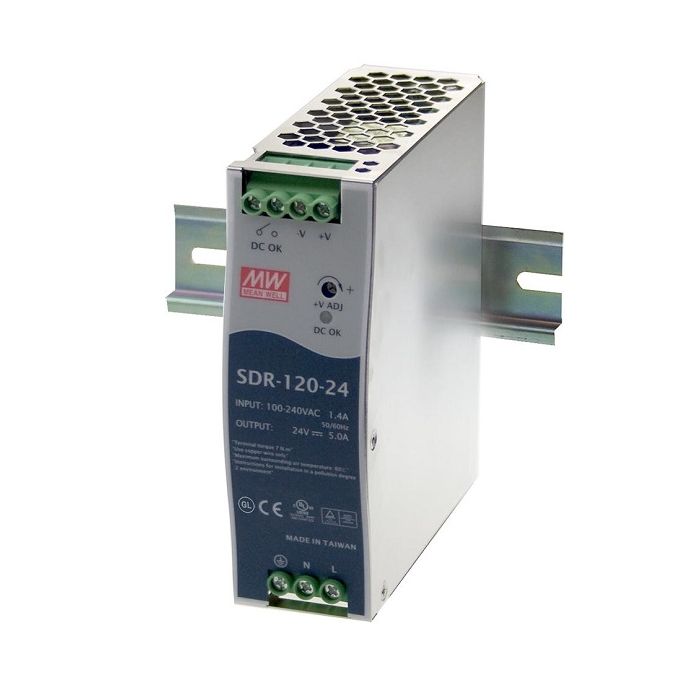

Meanwell: AC-DC Industrial DIN-rail Power Supply; 24Vdc; 5A; SDR-120-24
SKU
MD-01627
PKRĀ 18,900.00
AC-DC Industrial DIN rail power supply; Output 24Vdc at 5A; Metal casing; Ultra slim width 40mm
š¦ Pre-Order Queue:
0 Units
ā Available on Backorder (In 15-30 business days)
- Buy 3 for PKRĀ 18,333.00 each and save 3%
- Buy 10 for PKRĀ 17,955.00 each and save 5%
- Buy 50 for PKRĀ 17,388.00 each and save 8%
Categories: Power Supplies, Power Supply
Specifications
| Technical data | Information | ||
|---|---|---|---|
|
Brand
|
Mean Well
|
Commodity
|
8504409090
|
|
Item number
|
SDR-120-24
|
||
|
Series
|
SDR-120
|
RoHS
|
Compliant
|
|
Description
|
AC-DC Industrial DIN rail power supply; Output 24Vdc at 5A; Metal casing; Ultra slim width 40mm
|
Packing quantity
|
20
|
|
Application
|
Installation UL 508
ITE EN/UL/IEC 60950
|
Net weight (gram)
|
680
|
|
Technology
|
AC/DC
|
||
|
Power Format
|
DIN rail
|
||
|
Output Power (W)
|
120
|
||
|
Output Voltage (V)
|
24
|
||
|
Output Current (A)
|
5
|
||
|
Input Voltage (V)
|
88 - 264
Universal Input 110/230V
|
||
|
IP Rating
|
No IP assigned
|
||
|
Width (mm)
|
40
|
||
|
Height (mm)
|
125.2
|
||
|
Depth (mm)
|
113.5
|
||
|
Control Signals
|
DC OK
|
||
|
Dimming Technology
|
No Dimming
|
||
Certification
All available certificates from Mean WellDownloads
-
Catalog - Short Form DIN Rail Power
| Part Number | SDR-120-24 |
|---|---|
| Manufacturer | Mean Well |
| Weight (KG) | 680.000000 |
| Product Availability | In Stock |
