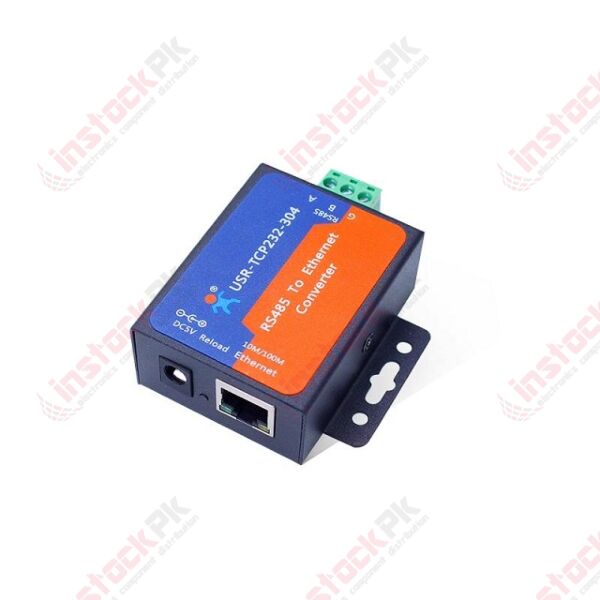

USRIoT: 1 Port RS485 to TCP/IP Ethernet Converter - USR-TCP232-304
SKU
MD-02096
PKR 9,200.00
📦 Pre-Order Queue:
0 Units
⚠ Available on Backorder (In 15-30 business days)
- Buy 3 for PKR 8,740.00 each and save 5%
- Buy 10 for PKR 8,464.00 each and save 8%
Related Products
Categories: Wireless & Networking Module, Others, Converters
USR-TCP232-304
- ● Single RS485 to Ethernet converters
- ● Bidirectional data transmission between RS485 port and Ethernet
- ● Modbus gateway： Modbus RTU to Modbus TCP, multi-host Modbus polling
- ● Support multiple work mode
- ● Easy to config: built-in webpage, AT command, config softeware
- ● Compact, Small size, Light Weight
Specification parameters
|
Model |
USR-TCP232-302 |
USR-TCP232-304 |
USR-TCP232-306 |
|
Processor |
ARM Cortex-M0, 48MHz |
||
|
Power Supply |
DC: 5.0～7.0 V，
Connector: DC 5.5*2.1 mm
|
DC: 5.0～7.0 V，
Connector: DC 5.5*2.1 mm
|
DC: 5.0～36.0 V，
Connector: 5.5*2.1 mm & 2 pin terminal block
|
|
Power Input |
DC: 5.0～7.0 V，
Connector: DC 5.5*2.1 mm
|
DC: 5.0～7.0 V，
Connector: DC 5.5*2.1 mm
|
DC: 5.0～36.0 V，
Connector: 5.5*2.1 mm & 2 pin terminal block
|
|
Consumption |
|||
|
Ethernet Port |
|
|
|
|
Ethernet Port |
1 x RJ45, 10/100Mbps, auto MDI/MDIX |
||
|
Serial Port |
|
|
|
|
Serial Port |
RS232 |
RS485 |
RS232/485/422(Not work at the same time) |
|
Baud Rate |
600~230.4 Kbps |
||
|
Data Bits |
5,6,7,8 |
||
|
Stop Bit |
1,2 |
||
|
Parity Bit |
None, Odd, Even, Mark, Space |
||
|
Serial Packeting |
Packeting Time: Four-byte sending time
Packeting Length: 400 Bytes
|
||
|
Serial Packet Cache |
Receive:2KBytes |
||
|
Reload Button |
√ |
||
|
Physical Parameters |
|
|
|
|
Dimension(L*W*H) |
66.3*70.0*25.0 mm |
73.2*70.0*25.0 mm |
98.0×86.0×25.0 mm |
|
Installation |
Wall Mounting |
||
|
Operating Temp |
-25~75℃ |
||
|
Storage Temp |
-40~105℃ |
||
|
Operating Humility |
5%~95% RH(non-condensing) |
||
|
Storage Humility |
5%~95% RH(non-condensing) |
||
|
Indicators |
None |
None |
PWR, WORK,LINK,TX,RX |
|
Software |
|||
|
Network Protocol |
IP, TCP/UDP, DHCP, RCMP, HTTP, IPv4, DNS |
||
|
IP Mode |
DHCP, STATIC IP |
||
|
DNS Service |
√ |
||
|
Config Method |
AT Command, Built-in webpage,
Config Software, Config Protocol
|
||
|
Work Mode |
TCP Server/TCP Client/UDP Server
/UDP Client/Httpd Client
|
||
|
Modbus Gateway |
Modbus RTU to Modbus TCP, Multi-host Modbus Polling |
||
|
User-Defined Webpage |
√ |
||
|
TCP Server |
16 clients |
||
|
Network Packet Cache |
Send: 6K Bytes
Receive: 4K Bytes
|
||
|
Additional Features |
RFC2217 Similar, Heartbeat Packet, Registration Packet, Index, No Data Restart |
||
|
Others |
|||
|
EMC Level |
IEC61000, Level 3(Surge, ESD, EFT) |
||
|
Certificate |
CE |
||
| Part Number | USR-TCP232-304 |
|---|---|
| Manufacturer | USR IoT |
| Weight (KG) | 0.300000 |
| Packing Unit | 1 Piece |
| Product Availability | In Stock |
