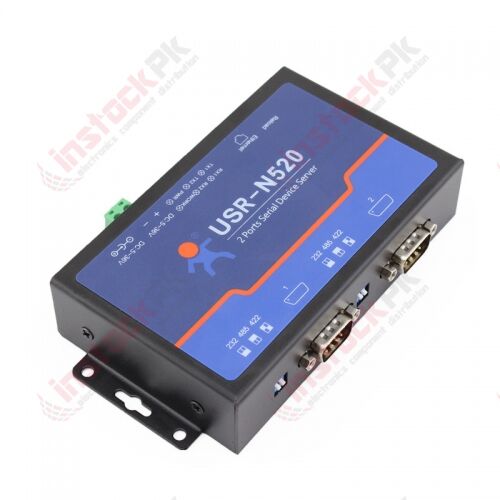

USRIoT - 2 Port RS232/RS485/RS422 to Ethernet Server | Modbus RTU to Modbus TCP USR-N520

SKU
MD-01255
PKR26,500.00
Quantity: 9
USR-N520 is a double serial device server, which can realize transparent transmission between TCP/UDP data package and RS232/RS485/RS422 interface.
  • Buy 3 for PKR25,175.00 each and save 5%
  • Buy 10 for PKR24,380.00 each and save 8%

Unique Features

1. Modbus gateway, Modbus poll

2. Network printer function

3. ESD and Surge protection, watchdog mechanism

Serial Device Server Introduction

USR-N520 is a double serial device server, which can realize transparent transmission between TCP/UDP data package and RS232/RS485/RS422 interface. The device has unique functions such as network printing, Modbus multi-host polling and watchdog mechanism. USR-N520 is based on ARM processor and it is internally integrated with TCP/IP protocol.User can easily realize embedded device networking.

Serial Device Server Features

  • TI Cortex-M4 solution, ARM processor and TCP/IP protocol stack
  • Reload button,one key to restore factory defaults
  • Multiple indicator LEDs for easy debugging
  • DNS, DHCP, Websocket and HTTPD Client supported
  • Keepalive function,rapidly detect dead links
  • Built-in webpage, support customized
  • Can upgrade firmware via network easily
  • Account and password to page login and network settings
  • Support UDP broadcast,send and receive data from all IP in LAN
  • Global unique MAC address bought from IEEE, can be defined
  • Virtual serial port, setup and test software is availiable
  • Provide PC TCP/IP SOCKET programming example: VB, C++, Delphi, Android, IOS

Serial Device Server Parameter

RJ45 Port
Number 1
Standard 4 pin RJ45
Speed rate 10/100Mbps, MDI/MDIX
Protection 2KV electromagnetic isolation
Protocal IP, TCP, UDP, DHCP, DNS, HTTP, ARP, ICMP, Websocket, HTTPD Client
Buffer TX: 16K byte, RX: 16K bytes
COM Port
Number RS232/RS485/RS485 * 2, choose one to use
Standard RS232: DB9 male connector, RS485: A+ B-, RS422: (A, B, Y, Z)
Baud rate 600-230.4K bps
Data bit 5, 6, 7, 8
Parity bit None, Odd, Even, Space, Mark
Stop bit 1, 2
Buffer TX: 2K byte, RT: 2K byte
Flow control RTS/CTS, Xon/Xoff
RS485 resistor 2.2K Ω
Protection ESD 2KV, lighting, surge
Power Input
Voltage 5-36 V
Type DC jacker and + - terminal
Working current 53mA (average) @12 V
Protection ESD, surge, reversed connect
Working Environment
Working tempreture -40 - 85 °C
Storage tempreture -40 - 105 °C
Storage humidity 5% - 95% (no condensation)
Dimensions 150*79*30 mm, without terminal
Certification CE, FCC, ROHS, WEEE, KCC
Download files USR-N520



Serial Device Server Application Sample



Double Serial Device RS232/RS485/RS422 to Ethernet Server

Packing List

  • Serial Device Server * 1
  • RS232 to RS485/RS422 converter *2
  • Power adapter * 1
  • Serial cable * 1
Part Number USR-N520
Manufacturer USR IoT
Weight (KG) 0.680000
