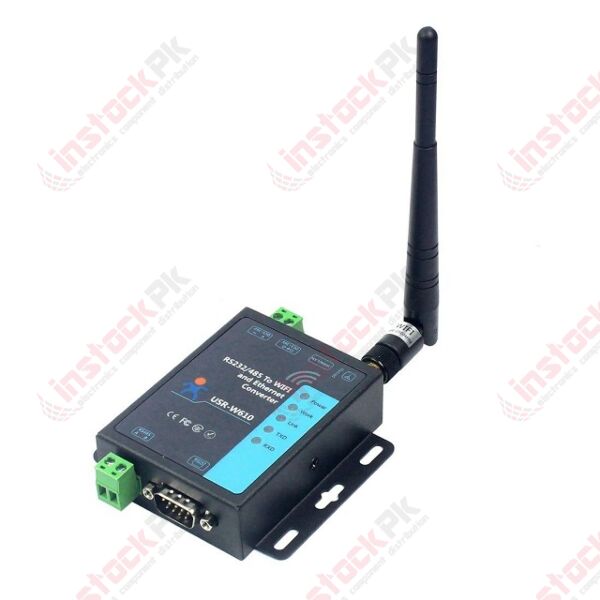

USR_IoT: 1 Port RS232/RS485 Serial to WiFi/Ethernet Converter - USR-W610

SKU
MD-01944
PKR12,800.00
Quantity: 20
USR-W610 is Serial RS232 or RS485 to WIFI converter, which can realize the bi-directional transparent data transmission between RS232/RS485 and WiFi. It also supports wifi to Ethernet.
  • Buy 3 for PKR12,160.00 each and save 5%
  • Buy 10 for PKR11,776.00 each and save 8%

Introduction

1-port RS485 to WiFi converters / RS232 to WiFi converters USR-W630 can realize the bi-directional transparent data transmission between RS232/RS485, WiFi and Ethernet. Through simple configuration via Web Server or setup software can assign working details, realize serial data and TCP/IP data package transparent transmission by converter

Features

  • Support WIFI@2.4GHz 802.11b/g/n wireless standards, RS232/RS485to 802.11 a/b/g/n WLAN Serial Device Server
  • Support TCP Server/TCP Client/UDP Server/UDP Client/https Client mode.
  • Support AP, STA, AP+STA.
  • Support RS232 or RS485 serial ports.
  • Support electrostatic protection.
  • Support identity packet function.
  • Support heartbeat packet function.
  • Support Websocket function.
  • Support timeout reset function, timing reset function.
  • Support Web Server, setup software, serial/network AT command to configure module.
  • Support hardware reload.
  • Support usrlink

Specifications

Ethernet
Port Number 1 Ethernet Ports: 1 x WAN/LAN
Buffer Rx/TX: Max 16K bytes
Protection 2 KV Electromagnetic isolation for Ethernet port
Network Protocol IP/TCP/UDP/DHCP/DNS/https/ ARP/ICMP/Web socket/httpsd client
Speed Rate 10/100 Mbps, MDI/MDIX
Wi-Fi
Certificate FCC/CE
WiFi 802.11 b/g/n
Frequency Range 2.412GHz-2.484GHz
Transmit Power 802.11b: +19dBm(Max)
802.11g: +18dBm(Max)
802.11n:+17dBm(Max)
Receive Sensitivity 802.11b: -89dBm
802.11g: -81dBm
802.11n: -73dBm
Hardware
Interface Standard RS232:300~460.8Kbps
RS485:300~230.4Kbps
Input Voltage DC5~36V
Operating Temp. -40℃~ 85℃
Storage Temp. -40℃~ 125℃
Size 86*82.5*25mm(L*W*H)
Software
Network Mode Station/AP/AP+Station
Security WEP/WPA-PSK/WPA2-PSK
Encryption WEP64/WEP128/TKIP/AES
Work Mode Transparent transmission / serial AT command/
https Client、Modbus TCP<=>Modbus RTU
Setting Command AT+command
Networking Protocol TCP/UDP/ARP/ICMP/DHCP/DNS/https
Max. Client Number in TCP Server Mode 24
Configuration Web sever+ AT command

Hardware Interface

Hardware Interface of Serial to WiFi and Ethernet Converter



Functional Block Diagram

Serial to WiFi and Ethernet Converter,Functional Block Diagram



EFT

RS232 to WiFi converter/RS485 to WiFi converter USR-W610 has passed EFT test, when there is instantaneous high current in the circuit (such as lightning, power switch, etc.), it can ensure that the device hardware is not damaged.

Power: 2KV
Ethernet interface 232 485: 2KV

Serial to WiFi and Ethernet Converter has passed EFT test



ESD

Serial to WiFi and Ethernet Converter has passed Esd test



WatchDog

Serial to WiFi and Ethernet Converter,watchdog,hardware circuit, 24 hours stable operation



Work Mode

Transparent Transmission Mode

In this mode, all transmitted/received data is not parsed between the serial port and the WiFi interface.  It minimizes the complexity of user usage.

Transparent Transmission Mode of Serial to WiFi and Ethernet Converter



https Client Mode

In this mode, serial data will be submitted to the https server via https GET/POST/PUT requesting method.

https Client Mode of Serial to WiFi and Ethernet Converter



AT Command Mode

In this mode, user can query/set parameters via serial AT commands or network AT commands.



AT Command Mode of Serial to WiFi and Ethernet Converter



Special Features

Modbus Polling Mode

In this mode, it supports Modbus TCP and Modbus RTU mutual conversion.



Serial to WiFi and Ethernet Converter supports Modbus TCP and Modbus RTU mutual conversion

Heartbeat Packet Function

RS232 to WiFi converter/RS485 to WiFi converter USR-W610 supports network heartbeat packet and serial heartbeat packet. The network heartbeat packet notifies the server that it is in an active state, and it maintains the normal connection with the server by continuously sending the heartbeat packet.Serial port heartbeat packet notifies the serial device that USR-W610 is in an active state, and takes the initiative to grab the sensor data can not be initiative to push.



Heartbeat Packet Function of Serial to WiFi and Ethernet Converter



Socket Distribution Protocol

USR-W610 suppports SDP, you can add certain header in serial data. It will send the data to differetnt socket by different header. The data received from different
socket will be added different header before they are sent to serial.



Socket Distribution Protocol, Serial to WiFi and Ethernet Converter



Regular Restart Function

USR-W610 supports timing and timeout restart function, which makes the system run more stable.

Socket Distribution Protocol of Serial to WiFi and Ethernet Converter



Applications

Intelligent Power Data Acquisition Solutions

1.Build-in routing function, supports wired or WiFi networking method.

2.Remotely monitoring meter data, it not only saves manpower and resources but also facilitates the sudden response measures.

3.Rapid collection of data in the monitoring and management platform, it facilitates the city electricity management then to achieve smart city.

Intelligent Power Data Acquisition Solutions for Serial to WiFi and Ethernet Converter



Smart Agriculture

1.Monitoring the situation in the greenhouse,such as utilization rate about water resources, fertilizers and so on.

2.To obtain farmland information and monitor sudden natural disasters, then to carry out standardized control measures.

3.Fully automated operation without human intervention, saving manpower and achieving the precise control of agriculture.

Smart Agriculture solution for Serial to WiFi and Ethernet Converter



Industrial Detection

1.According to the site environment to choose WiFi or wired networking.

2.Real-time detection of air leakage products mixed in bottle buckles.

3.High sensitivity transmission monitoring data, the accurate data can ensure that monitoring without omission.

Industrial Detection, Serial to WiFi and Ethernet Converter

Part Number USR-W610
Manufacturer USR IoT
Weight (KG) 0.500000
Packing Unit 1pc
Product Availability In Stock
