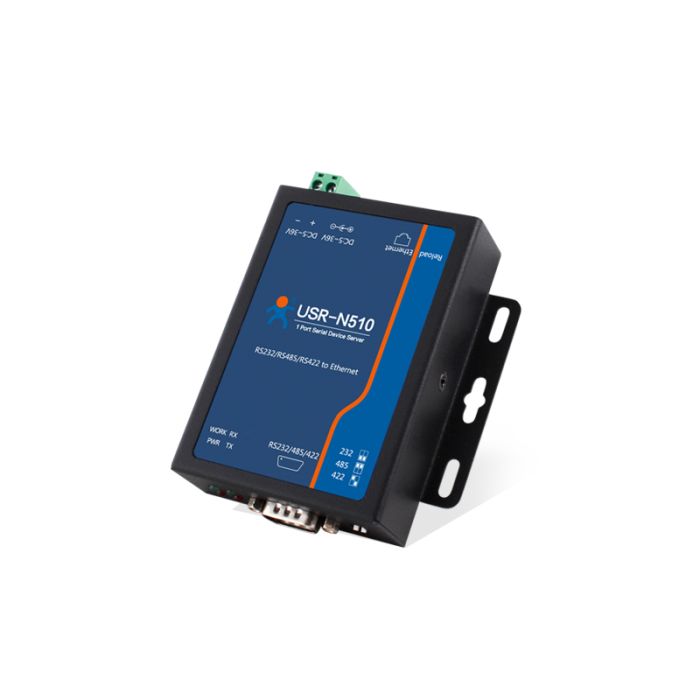

USRIoT: Industrial Serial RS232/RS485/RS422 to Ethernet Converter/Modbus Gateway - USR-N510
SKU
MD-01463
As low as
PKR18,250.00
Available in 15-30 Days
This product is also listed on
USR-N510 is an Industrial Serial to Ethernet Converter to realize bi-directional transparent transmission between RS232/RS485/RS422 and network with function of modbus gateway.
USR-N510 is an Industrial Serial to Ethernet Converter to realize bi-directional transparent transmission between RS232/RS485/RS422 and network with function of modbus gateway.
Categories: Communication Modules, Converters
Introduction of Serial Ethernet converter
USR-N510 is a three-in-one serial ethernet converter which can realize bidirectional transparent transmission between RS232/RS485/RS422 and Ethernet. Simple settings via webpage or setup software can assign working details.
USR-N510 is based on ARM processor and it is internally integrated with TCP/IP protocol. User can easily realize embedded device networking.
Characterstics:
| Industrial Solution | TI Cortex M4 Solution, work temp at -40~85C |
| Power Supply | DC/Terminal type 5V~36V |
| Serial Port | RS232/RS485/RS422, 3-in-1 serial port |
| Serial Signal |
RS232: TX/RX, CTS/RTS RS485:A/B/G |
| Flow Control | Software: XON/XOFF |
| Modbus Gateway |
Modbus TCP to Modbus RTU in bi-directional Modbus Polling |
| Advanced Character |
-Network Printing -Web socket: Serial to Webpage -Modify MAC -Hardware watchdog -ARP of server domain name |
| Certification | CE/FCC/RoHs/WEEE |
| Work Mode | TCP Server/ TCP client/ UDP Server/UDP Client/ HTTPD Client |
| Built-in web page | Customized web page is acceptable |
| Protect | Surge Protection, ESD 2KV, for more harsh industrial environment |
Application Fields:
- Industrial data transmission, industrial automation
- security and protection monitoring, public security
- Smart home, power control, environmental monitoring, intelligent agriculture
- Door check on work attendance system, POS system, rice selling system
- Building automation system, power monitoring, self-service banking system, telecom machine room monitoring
Specifications:
| System Information | |
| Processor | Cortex-M4 |
| Basic Frequency | 120MHz |
| Flash | 512K byte |
| Ethernet | |
| Port Number | 1 |
| Interface Standard | 8 pin RJ45 |
| Rate | 10/100 Mbps, MDI/MDIX, auto switch between cross and direct connection |
| Protection | 2KV electromagnetism isolation, shell insulation blocking |
| Network Protocol | IP,TCP,UDP,DHCP,DNS,HTTP,ARP,ICMP,Web socket,Httpd client |
| Receive Buffer | Max 16k bytes buffer |
| Serial | |
| Port Number | 1 |
| Interface Standard | RS-232: DB9 pin type, RS-485: 2 wire (A+,B-), RS-422 (A,B,Y,Z) |
| Data Bits | 5,6,7,8 |
| Stop Bit | 1,2 |
| Check Bit | None,Even,Odd,Space,Mark |
| Baud Rate | 600bps ~ 230.4Kbps |
| Flow Control | RTS/CTS |
| Buffer | Send and receive 2k bytes respectively |
| Protection | RS-485: anti-static 2KV,lightning protection |
| RS-485 Pull-up and Pull-Down Resistor | 2.2 KΩ |
| Software | |
| Virtual Serial（USR-VCOM） | Windows 2000 or higher(32 bit/64 bit) |
| Configuration | Built-in webpage, computer set-up software, serial command |
| Basic Parameter | |
| Size | 88 x 81 x 24 mm |
| Operating Temp. | -40 ~ 85°C (industry) |
| Storage Temp. | -40 ~ 85°C, 5 ~ 95% RH (no condensation) |
| Input Voltage | DC 5 ~ 36V |
| Working Current | 53mA @ 12V |
| Power | <1W |
| More | |
| Certificate | CE,FCC,ROHS |
| Warranty | 1 Year International |
| Part Number | USR-N510 |
|---|---|
| Weight (KG) | 0.530000 |
| Manufacturer | USR IoT |
