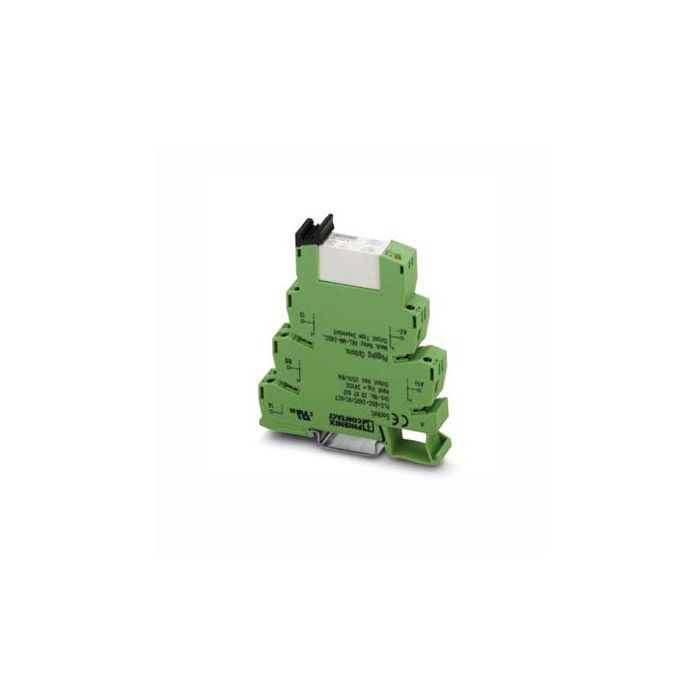

Phoenix Contact Relay Module-PLC-RSP- 24DC/1IC/ACT (2912413)

PLC-INTERFACE for high switch-on currents, consisting of PLC-BSP.../1 IC/ACT basic terminal block with spring-cage connection and plug-in miniature relay, for mounting on DIN rail NS 35/7,5, max. switch-on current up to 130 A, 1 N/O contact, input voltage 24 V DC.

FEATURES:

1. Test voltage relay winding/relay contact: 4 kV AC (50 Hz, 1 min.)
2. Operating mode: 100% operating factor
3. Mechanical service life: 3 x 107 cycles
4. Flammability rating according to UL 94: V0
5. Designation: Standards/regulations
6. Pollution degree: 3
7. Overvoltage category: III
8. Mounting position: any
9. Assembly instructions: In rows with zero spacing

SPECIFICATION:

1. Connection method: Screw connection
2. Stripping length: 8 mm
3. Screw thread: M3
4. Conductor cross section solid: 0.14 mm² ... 2.5 mm²
5. Conductor cross section flexible: 0.14 mm² ... 2.5 mm²
6. AWG conductor cross section: 26 ... 14
7. Nominal input voltage UN: 24V DC
8. Typical input current at UN: 18 mA
9. Typical response time: 8 ms
10. Typical release time: 10 ms
11. Operating voltage display: Yes
12. Power dissipation for nominal condition: 0.43 W

RELATED DOCUMENTS:

1. Datasheet.

PARAMETERS:

1. Width: 14 mm
2. Height: 80 mm
3. Depth: 94 mm

PACKAGE INCLUDES:

1. 1 X Phoenix Contact Relay Module-PLC-RSP- 24DC/1IC/ACT (2912413)
