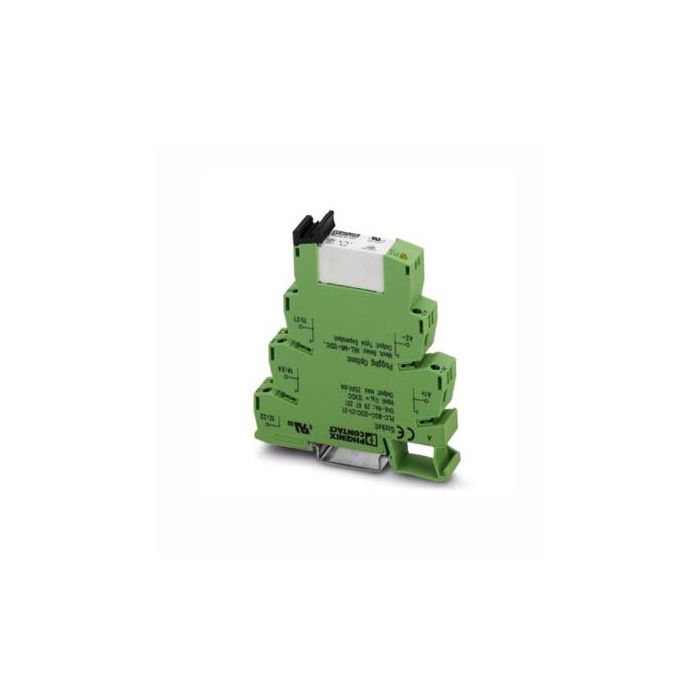

Phoenix Contact Relay Module PLC-RSC-230UC/21-21 (2967099)

SKU
MD-00807
PKR2,215.00
Quantity: 0
Phoenix Contact Relay Module PLC-RSC-230UC/21-21 (2967099)
  • Buy 20 for PKR2,105.00 each and save 5%
  • Buy 50 for PKR1,993.00 each and save 10%

PLC relay, consisting of base terminal block PLC-BSC.../21 with screw connection and pluggable miniature relay with power contact, for assembly on DIN rail NS 35/7.5, 2 PDT, input voltage 230 V AC / 220 V DC.

FEATURES:

  1. Test voltage relay winding/relay contact: 4 kV AC (50 Hz, 1 min.)
  2. Operating mode: 100% operating factor
  3. Mechanical service life: 3 x 107 cycles
  4. Flammability rating according to UL 94: V0
  5. Designation: Standards/regulations
  6. Pollution degree: 3
  7. Overvoltage category: III
  8. Mounting position: any
  9. Assembly instructions: In rows with zero spacing

SPECIFICATION:

  1. Connection method: Screw connection
  2. Stripping length: 8 mm
  3. Screw thread: M3
  4. Conductor cross section solid: 0.14 mm² ... 2.5 mm²
  5. Conductor cross section flexible: 0.14 mm² ... 2.5 mm²
  6. AWG conductor cross section: 26 ... 14
  7. Nominal input voltage UN: 230V AC/220DC
  8. Typical input current at UN: 4.5 mA/4.3 mA
  9. Typical response time: 7 ms
  10. Typical release time: 10 ms
  11. Operating voltage display:      Yes
  12. Power dissipation for nominal condition: 1.04 W

RELATED DOCUMENTS:

  1. Datasheet.

PARAMETERS:

  1. Width: 14 mm
  2. Height: 80 mm
  3. Depth: 94 mm

PACKAGE INCLUDES:

  1. 1 X Phoenix Contact Relay Module PLC-RSC-230UC/21-21 (2967099)
Part Number NA
Weight (KG) 0.078000
Manufacturer phoenix contact
Packing Unit 1 Piece
GTIN 4017918156503
Weight per Piece (excluding packing) 78.000 g
Custom tariff number 85364900
