Phoenix Contact Relay Module-PLC-RSC-230UC/21

SKU
PC-00019
PKR1,500.00
Quantity: 0
Phoenix Contact Relay Module-PLC-RSC-230UC/21
  • Buy 5 for PKR1,425.00 each and save 5%

FEATURES:



  1. Test voltage relay winding/relay contact: 4 kV AC (50 Hz, 1 min.)
  2. Operating mode: 100% operating factor
  3. Mechanical service life: 2 x 107cycles
  4. Flammability rating according to UL 94: V0
  5. Designation: Standards/regulations
  6. Pollution degree: 3
  7. Overvoltage category: III
  8. Mounting position: any
  9. Assembly instructions: In rows with zero spacing

SPECIFICATION:





  1. Connection method: Screw connection
  2. Stripping length: 8 mm
  3. Screw thread: M3
  4. Conductor cross section solid: 0.14 mm² ... 2.5 mm²
  5. Conductor cross section flexible: 0.14 mm² ... 2.5 mm²
  6. AWG conductor cross section: 26 ... 14

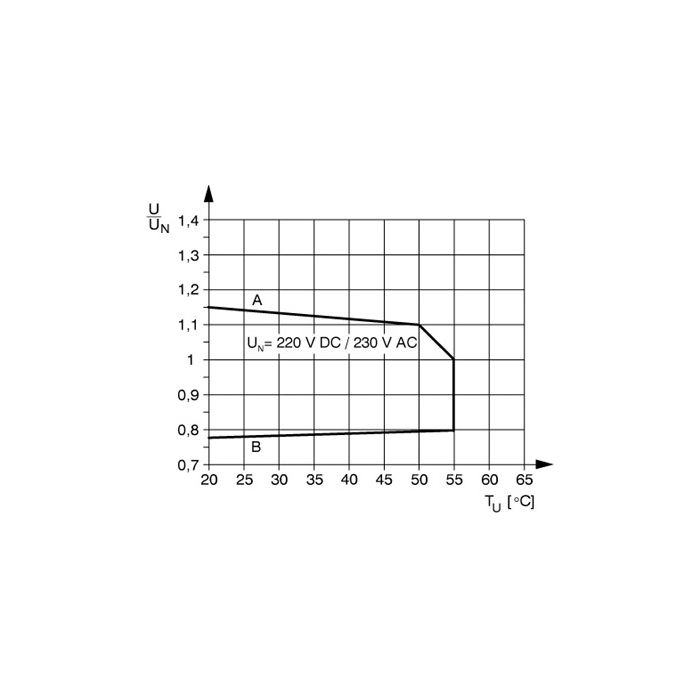

  7. Nominal input voltage UN: 230 V AC (220 V DC)
  8. Typical response time: 7 ms
  9. Typical release time: 15 ms
  10. Operating voltage display: Yes
  11. Power dissipation for nominal condition: 0.74 W



PARAMETERS:







  1. Width: 6.2 mm
  2. Height: 80 mm
  3. Depth: 94 mm



PACKAGE INCLUDES:










  1. 1 X Phoenix Contact Relay Module-PLC-RSC-230UC/21
Weight (KG) 0.033900
Manufacturer phoenix contact
Packing Unit 10 Pieces
GTIN 4017918130695
Weight per Piece (excluding packing) 33.900 g
Custom tariff number 85364900
