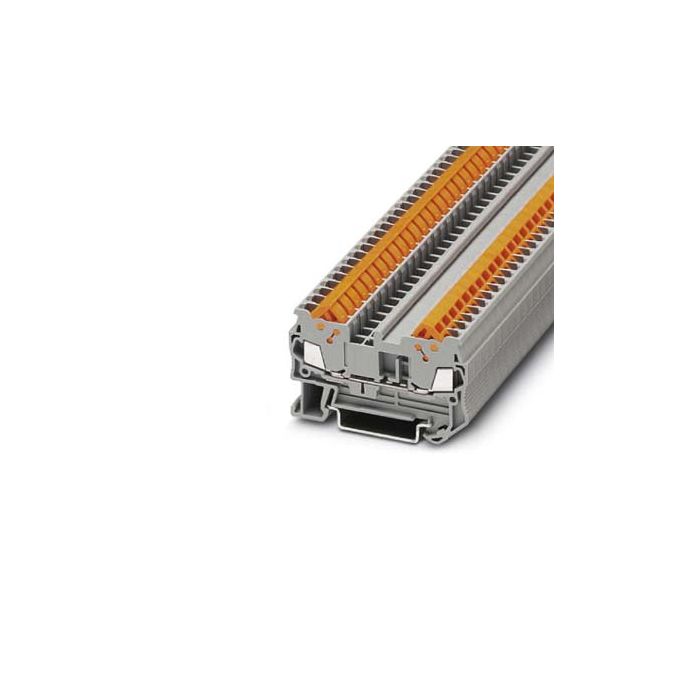

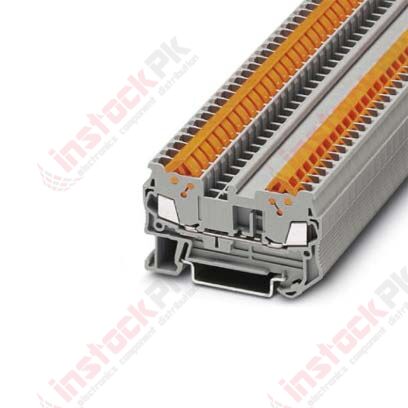

Phoenix Contact Fast Connection Terminal Block QTC 1,5 (3205019)

Phoenix Contact Control Cabinet Solutions offer flexibility, innovation, and cost effective products for every application. From Power Supplies, DIN Rail Terminal Blocks,  Relays, Circuit Breakers, and lighting and more that Phoenix Contact can offer a single source solution for all control cabinet needs. Control cabinet solutions are designed to the required standards and directives, allowing the finished products to meet the highest requirements.

 FEATURES:

1. Number of levels: 1
2. Number of connections: 3
3. Nominal cross section : 1.5 mm²
4. Flammability rating according to UL 94: V0
5. Rated surge voltage: 8 kV
6. Degree of pollution: 3
7. Overvoltage category: III
8. Ambient temperature (actuation): -10 °C ... 90 °C
9. Connection in acc. with standard: IEC 60947-7-1
10. Maximum load current: 17.5 A (with 1.5 mm² conductor cross section)
11. Nominal current IN: 17.5 A
12. Nominal voltage UN: 800 V
13. Connection method: Screw connection
14. Connection in acc. with standard: IEC 60947-7-1
15. Maximum load current: 17.5 A (with 1.5 mm² conductor cross section)
16. Nominal current IN: 17.5 A
17. Nominal voltage UN: 800 V
18. Open side panel: Yes
19. Relative insulation material temperature index (Elec., UL 746 B): 130 °C

SPECIFICATIONS:

1. Connection method: Quick connection
2. Connection in acc. with standard: IEC 60947-7-1
3. Conductor cross section solid min: 0.25 mm²
4. Conductor cross section solid max: 1.5 mm²
5. Conductor cross section AWG min: 24
6. Conductor cross section AWG max: 16
7. Conductor cross section flexible min: 0.25 mm²
8. Conductor cross section flexible max: 1.5 mm²
9. Min. AWG conductor cross section, flexible: 24
10. Max. AWG conductor cross section, flexible: 16
11. Connection in acc. with standard: IEC/EN 60079-7
12. Conductor cross section solid min: 0.25 mm²
13. Conductor cross section solid max: 1.5 mm²
14. Conductor cross section AWG min: 24
15. Conductor cross section AWG max: 16
16. Conductor cross section flexible min: 0.25 mm²
17. Conductor cross section flexible max: 1.5 mm²
18. Material wire insulation: PVC / PE
19. Max. wire diameter incl. insulation: 3 mm

CLASSIFICATIONS:

eCl@ss:

1. eCl@ss 4.0: 27141130
2. eCl@ss 4.1: 27141130
3. eCl@ss 5.0: 27141130
4. eCl@ss 5.1: 27141130
5. eCl@ss 6.0: 27141120
6. eCl@ss 7.0: 27141120
7. eCl@ss 8.0: 27141120
8. eCl@ss 9.0: 27141120

ETIM:

1. ETIM 2.0: EC000897
2. ETIM 3.0: EC000897
3. ETIM 4.0: EC000897
4. ETIM 5.0: EC000897

UNSPSC:

1. UNSPSC 6.01: 30211811
2. UNSPSC 7.0901: 39121410
3. UNSPSC 11: 39121410
4. UNSPSC 12.01: 39121410
5. UNSPSC 13.2: 39121410

RELATED DOCUMENTS:

1. DataSheet

PARAMETERS:

1. Width: 5.2 mm
2. End cover width: 2.2 mm
3. Length : 58.8 mm
4. Height NS 35/7,5: 39.3 mm
5. Height NS 35/15: 46.8 mm

PACKAGE INCLUDES:

1. 1 X Phoenix Contact Fast Connection Terminal Block QTC 1,5 (3205019)
