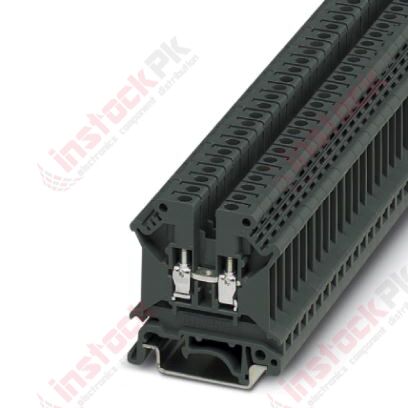

Phoenix Contact Feed Through Terminal Block - TB 4 EI

FEATURES:

1. Number of levels: 1
2. Nominal cross section : 4 mm²
3. Number of connections: 2
4. Rated surge voltage: 8 kV
5. Pollution degree: 3
6. Connection in acc. with standard: IEC 60947-7-1
7. Shock protection test specification: DIN EN 50274 (VDE 0660-514):2002-11
8. Bending test rotation speed: 10 rpm
9. Conductor cross section tensile test: 0.5 mm²
10. Conductor cross section tensile test: 6 mm²
11. Conductor cross section tensile test: 4 mm²
12. Requirements, voltage drop:  ≤ 3.2 mV
13. Conductor cross section short circuit testing: 4 mm²
14. Short-time current: 0.48 kA

SPECIFICATION:

1. Maximum load current: 32 A
2. Nominal current IN: 32 A
3. Nominal voltage UN: 800 V (in the case of enclused clamping space)
4. Surge voltage test setpoint: 9.8 kV
5. Power frequency withstand voltage setpoint: 2 kV
6. Proof of thermal characteristics (needle flame) effective duration: 30 s
7. Temperature index, insulating material (DIN EN 60216-1 (VDE 0304-21)): 125 °C
8. Note: Terminal point
9. Connection method: Screw connection
10. Connection in acc. with standard: IEC 60947-7-1
11. Conductor cross section AWG min: 20
12. Conductor cross section AWG max: 10
13. Min. AWG conductor cross section, flexible: 20
14. Max. AWG conductor cross section, flexible: 12
15. Stripping length: 8 mm
16. Screw thread: M3
17. Tightening torque, min: 0.5 Nm
18. Tightening torque max: 0.6 Nm

PARAMETERS:

1. Width: 6.2 mm
2. End cover width: 1.8 mm
3. Length: 42.5 mm
4. Height NS 35/7,5: 47 mm
5. Height NS 35/15: 54.5 mm
6. Height NS 32: 52 mm

PACKAGE INCLUDES:

1. 1 XPhoenix Contact Feed Through Terminal Block-TB 4 EI
