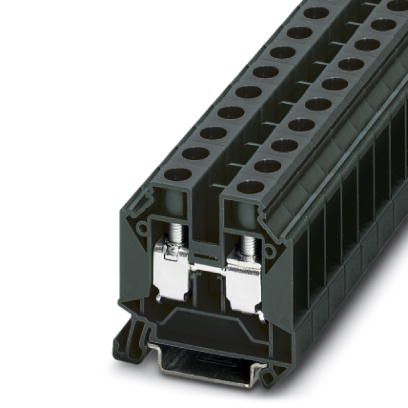

Phoenix Contact Feed Through Terminal Block - TB 16 EI - 5792172
SKU
PC-00022
PKR 110.00
Feed-through terminal block, Connection method: Screw connection, Cross section: 6 mm² - 16 mm², AWG: 10 - 6, Width: 12.2 mm, Color: dark gray, Mounting type: NS 35/7,5, NS 35/15, NS 32
📦 Pre-Order Queue:
0 Units
⚠ Available on Backorder (In 15-30 business days)
Related Products
Category: Phoenix Contact
Feed-through terminal block, Connection method: Screw connection, Cross section: 6 mm² - 16 mm², AWG: 10 - 6, Width: 12.2 mm, Color: dark gray, Mounting type: NS 35/7,5, NS 35/15, NS 32
General
| Number of levels | 1 |
| Number of connections | 2 |
| Nominal cross section | 16 mm² |
| Color | dark gray |
| Insulating material | PA |
| Flammability rating according to UL 94 | V2 |
| Rated surge voltage | 8 kV |
| Degree of pollution | 3 |
| Overvoltage category | III |
| Insulating material group | I |
| Connection in acc. with standard | IEC 60947-7-1 |
| Maximum load current | 76 A |
| Nominal current IN | 76 A |
| Nominal voltage UN | 1000 V |
| Open side panel | Yes |
| Shock protection test specification | DIN EN 50274 (VDE 0660-514):2002-11 |
| Back of the hand protection | guaranteed |
| Finger protection | guaranteed |
| Result of surge voltage test | Test passed |
| Surge voltage test setpoint | 9.8 kV |
| Result of power-frequency withstand voltage test | Test passed |
| Power frequency withstand voltage setpoint | 2.2 kV |
| Result of the test for mechanical stability of terminal points (5 x conductor connection) | Test passed |
| Result of bending test | Test passed |
| Bending test rotation speed | 10 rpm |
| Bending test turns | 135 |
| Bending test conductor cross section/weight | 6 mm2 / 1.4 kg |
| 16 mm² / 2.9 kg | |
| Tensile test result | Test passed |
| Conductor cross section tensile test | 6 mm² |
| Tractive force setpoint | 80 N |
| Conductor cross section tensile test | 16 mm² |
| Tractive force setpoint | 100 N |
| Result of tight fit on support | Test passed |
| Tight fit on carrier | NS 35 |
| Setpoint | 5 N |
| Result of voltage-drop test | Test passed |
| Requirements, voltage drop | ≤ 3.2 mV |
| Result of temperature-rise test | Test passed |
| Short circuit stability result | Test passed |
| Conductor cross section short circuit testing | 16 mm² |
| Short-time current | 1.92 kA |
| Result of thermal test | Test passed |
| Proof of thermal characteristics (needle flame) effective duration | 30 s |
| Relative insulation material temperature index (Elec., UL 746 B) | 125 °C |
| Temperature index of insulation material (DIN EN 60216-1 (VDE 0304-21)) | 125 °C |
| Weight (KG) | 0.015670 |
|---|---|
| Manufacturer | phoenix contact |
| Packing Unit | Pack of 50 |
| Minimum order quantity | 10 pc |
| Weight per Piece (excluding packing) | 15.67 g |
| Custom tariff number | 85369010 |
