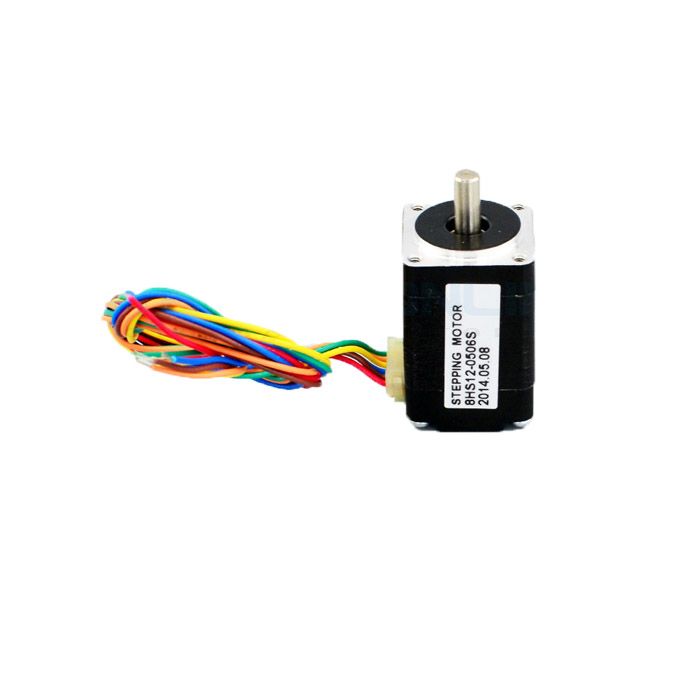

Nema 8 Unipolar Stepper Motor 8HS12-0506S (0.5A/1.8Ncm)
PKR 5,200.00
SKU
MD-00745
- Buy 5 for PKR 4,940.00 each and save 5%
- Buy 20 for PKR 4,680.00 each and save 10%
Nema 8 Unipolar Stepper Motor 8HS12-0506S (0.5A/1.8Ncm)
This is a Nema 8 unipolar stepper motor with 1.8° step angle (200 steps/revolution). Each phase draws 500mA, allowing for a holding torque of 1.8Ncm(2.55oz.in).
SPECIFICATIONS:
|
Manufacturer Part Number |
8HS12-0506S |
|
Motor Type |
Unipolar Stepper |
|
Step Angle |
1.8° |
|
Holding Torque |
1.8Ncm(2.55oz.in) |
|
Rated Current/phase |
0.5A |
|
Phase Resistance |
11.5ohms |
|
Recommended Voltage |
12-24V |
|
Inductance |
1.7mH±20%(1KHz) |
RELATED DOCUMENTS:
PIN CONFIGURATIONS:
|
Wire Color |
RED |
BLW |
YEL |
BLU |
ORG |
GRN |
|
Board Connector |
A |
O |
C |
B |
O |
D |
PACKAGE INCLUDES:
- 1 X Nema 8 Unipolar Stepper Motor 8HS12-0506S (0.5A/1.8Ncm)
| Part Number | NA |
|---|---|
| Weight (KG) | 0.080000 |
| Manufacturer | Made in China |
| Model Number | 8HS12-0506S |
| Voltage (Min) | 12v |
| Voltage (Max) | 24V |
| Temperature Range (Min) | -40°C |
| Step Per Revolution(Min) | NA |
| Step Per Revolution (Max) | NA |
| Torque | 1.8Ncm(2.55oz.in) |
| Motor Type | Unipolar Stepper |
| Motor Step Angle | 1.8° |
