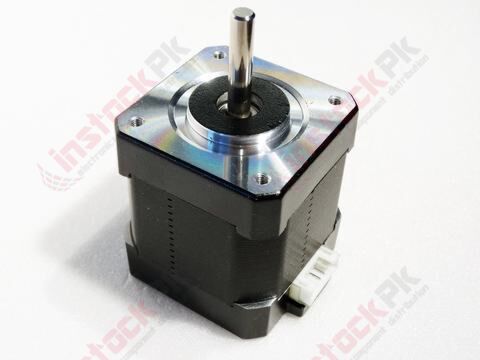

Nema 17 Stepper Motor 4 Lead (17HS8401 1.7A)

SKU
3D-00012
PKR3,650.00
Quantity: 8
NEMA-17 1.7A Stepper Motor – Model 17HS8401 for reprap 3D printer, CNC Machines or for general control and automation needs.
  • Buy 3 for PKR3,467.50 each and save 5%
  • Buy 10 for PKR3,358.00 each and save 8%

17HS8401 stepper motors are used very commonly in a lot of 3d printers / reprap cnc machines. It can also be used in general control, automation and robotics applications.

FEATURES:

  1. Step angle accuracy: + - 5%(full step,not load)
  2. Resistance accuracy: + - 10%
  3. Inductance accuracy: + - 20%
  4. Temperature rise: 80deg Max(rated current,2 phase on)
  5. Ambient temperature : 20deg ~+50deg
  6. Input Voltage:12V
  7. Insulation resistance:100MΩ Min,500VDC
  8. Insultion Strength: 500VAC for one minute

SPECIFICATIONS:

Model             17HS8401B

Step Angle(deg)

 1.8

Motor Length (mm)

 48

Rated Current (A)

 1.7

Phase Resistance (Ohm)

 1.8

Phase Inductance (mH)

 3.2

Holding Torque (N.cm)

 52

Detent Torque (N.cm)

 2.6

Rotor Inertia (g.cm2)

 68

Motor Weight (g)

 400

PACKAGE INCLUDES:

  1.  1 X 4-lead Nema 17 Stepper Motor (17HS8401B 1.7A)
Part Number 17HS8401
Manufacturer QIDI TECH
Weight (KG) 0.365000
Product Availability In Stock
