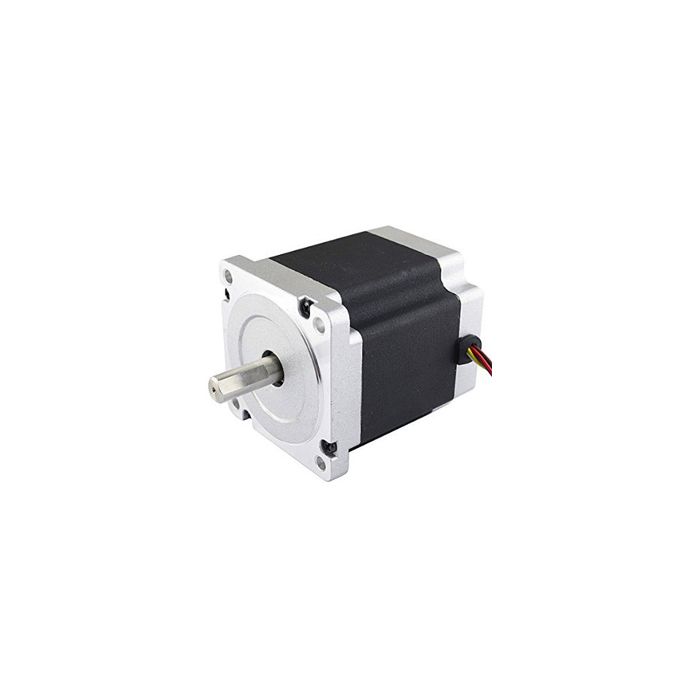

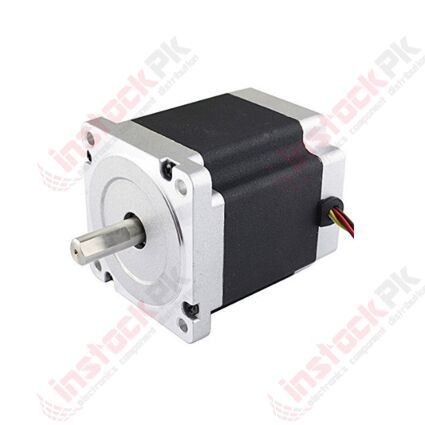

Nema 34 Stepper Motor (34HS38-3008S 3.0A)
PKR 16,400.00
SKU
MD-00301
- Buy 3 for PKR 15,900.00 each and save 3%
- Buy 10 for PKR 15,250.00 each and save 7%
This Nema 34 stepper motor with 1.8 deg. step angle (200 steps/revolution).Each phase draws 3.0A, allowing for a holding torque of 5Nm(708oz.in).
This Nema 34 stepper motor with 1.8 deg. step angle (200 steps/revolution).Each phase draws 3.0A, allowing for a holding torque of 5Nm(708oz.in).
FEATURES:
- Material: Steel, Metal,Copper,Aluminum
- Power Source: DC
- Certification: NEMA
- Frame Size: 86 x 86mm
- Shaft Diameter: 12.7mm
- Shaft Length: 32mm
- D-cut Length: 25mm
- Number of Leads: 8
SPECIFICATIONS:
| Model | 34HS38-3008S |
|
Step Angle(deg) |
1.8 |
|
Motor Length (mm) |
98 |
|
Rated Current (A) |
3.0 |
|
Phase Resistance (Ohm) |
1.6 |
|
Phase Inductance (mH) |
8 |
|
Holding Torque (N.cm) |
5 |
|
Motor Weight (g) |
3200 |
CONNECTION:
- BLU(A+)
- BLK(A-)
- WHT(C-)
- ORG(C+)
- RED(B)
- GRN(B-)
- YEL(D-)
- BRN(D+)
PACKAGE INCLUDES:
- 1 X Nema 34 Stepper Motor (34HS38-3008S 3.0A)
| Weight (KG) | 3.200000 |
|---|---|
| Manufacturer | Made in China |
| Model Number | 34HS38-3008S |
| Voltage (Min) | 4.8V |
| Voltage (Max) | 12V |
| Current (A) | 3 |
| Step Per Revolution(Min) | NA |
| Step Per Revolution (Max) | 200 |
| Size (mm) | 3.4 X 3.4 X 3.9 inches |
