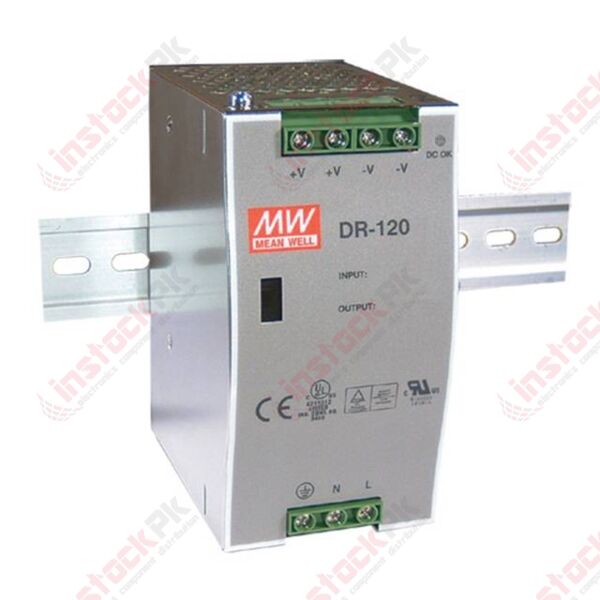

MeanWell - DR-120-12 - AC/DC DIN Rail Power Supply (PSU) 120W, 12VDC, 10A
SKU
MD-01246
PKR 6,980.00
The DR-120-12 is a 12V/120W 1-output DIN-rail mount Power Supply with AC input range selectable by switch. DR-120-series features cooling by free air convection, LED indicator for power on, 100% full load burn-in test, fixed switching frequency at 55KHz. Constant current limiting, recovers automatically after fault condition is removed. 105 to 150% rated output power overload protection. Shut down o/p voltage, re-power on to recover overvoltage protection.
📦 Pre-Order Queue:
0 Units
⚠ Available on Backorder (In 15-30 business days)
- Buy 3 for PKR 6,631.00 each and save 5%
- Buy 10 for PKR 6,421.60 each and save 8%
- Buy 50 for PKR 6,282.00 each and save 10%
Category: Power Supply
| Part Number | DR-120-12 |
|---|---|
| Manufacturer | MEAN WELL |
| Description | AC/DC CONVERTER 12V 120W |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Quantity Available | 2911 pcs |
| Data sheet | DR-120 Series Datasheet |
| Product Photo | DR-120-12.jpg |
| Category | Power Supplies - External/Internal (Off-Board) |
| Detailed Description | Enclosed AC DC Converter 1 Output 12V 10A 88 ~ 132 VAC, 176 ~ 264 VAC, 248 ~ 370 VDC Input |
| Series | DR-120 |
| Operating Temperature | -10°C ~ 60°C (With Derating) |
| Approvals | CB, CE, cULus, cURus, TUV |
| Mounting Type | DIN Rail |
| Size / Dimension | 3.94" L x 2.58" W x 4.93" H (100.0mm x 65.5mm x 125.2mm) |
| Type | Enclosed |
| Voltage - Input | 88 ~ 132 VAC, 176 ~ 264 VAC, 248 ~ 370 VDC |
| Features | Adjustable Output, Universal Input |
| Applications | Industrial, ITE (Commercial) |
| Power (Watts) | 120W |
| Voltage - Isolation | 3kV |
| Number of Outputs | 1 |
| Current - Output (Max) | 10A |
| Voltage - Output 1 | 12V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Efficiency | 80% |
| Minimum Load Required | No |
| Lead Free Status / RoHS Status | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL) | 1 (Unlimited) |
| Other Names | 1866-1003 DR-120-12MW DR-120-12MW-ND |
| Part Number | DR-120-12 |
|---|---|
| Manufacturer | Mean Well |
| Weight (KG) | 0.800000 |
