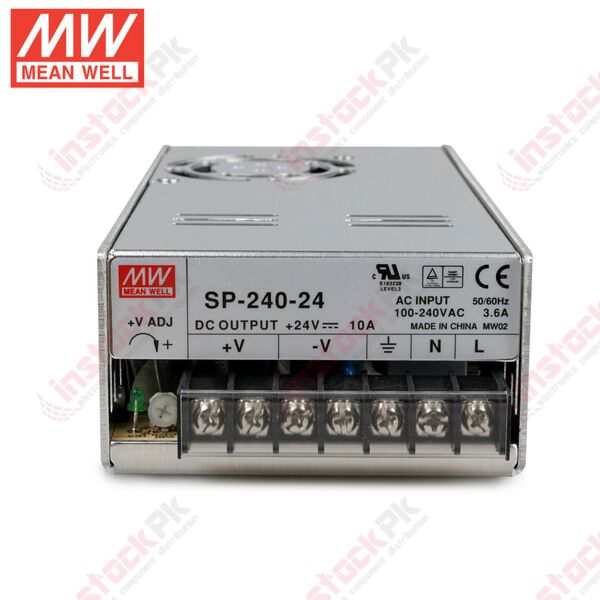

MeanWell - Enclosed Switching Power Supply with Active PFC SP-240-24 - 240W 24V 10A
SKU
MD-01138
PKR8,350.00
Available in 15-30 Days
Enclosed AC DC Converter 1 Output 24V 10A 88 ~ 264 VAC, 124 ~ 370 VDC Input
Categories: Power Supplies, Power Supply
| Categories | Power Supplies - External/Internal (Off-Board) | |
|---|---|---|
| AC DC Converters | ||
| Manufacturer | Mean Well USA Inc. | |
| Series | SP-240 | |
| Part Status | Active | |
| Type | Enclosed | |
| Number of Outputs | 1 | |
| Voltage - Input | 88 ~ 264 VAC, 124 ~ 370 VDC | |
| Voltage - Output 1 | 24V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 10A | |
| Power (Watts) | 240W | |
| Applications | ITE (Commercial) | |
| Voltage - Isolation | 3kV | |
| Efficiency | 87% | |
| Operating Temperature | -20°C ~ 70°C (With Derating) | |
| Features | Adjustable Output, PFC, Universal Input | |
| Mounting Type | Chassis Mount | |
| Size / Dimension | 7.48" L x 3.66" W x 1.97" H (190.0mm x 93.0mm x 50.0mm) | |
| Minimum Load Required | No | |
| Approvals | CB, CE, cURus, TUV |
| Part Number | SP-240-24 |
|---|---|
| Manufacturer | Mean Well |
| Product Availability | In Stock |
| Weight (KG) | 0.800000 |
