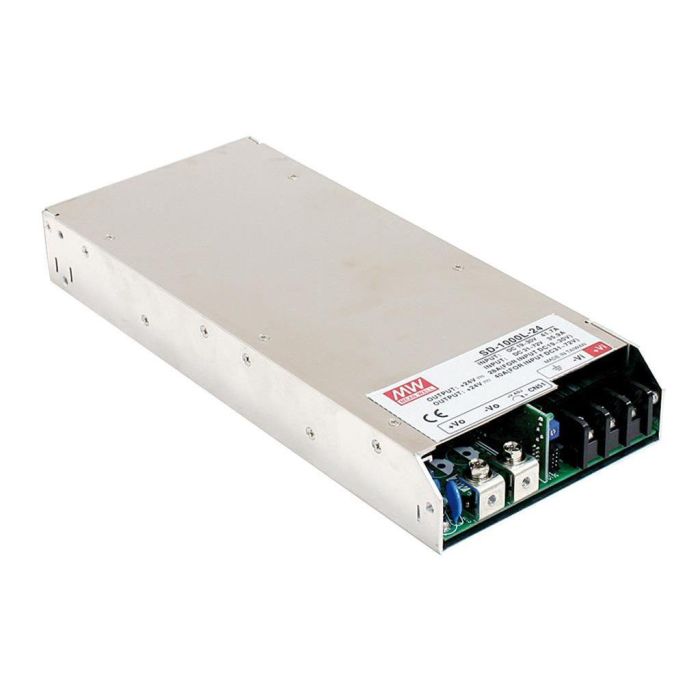

Meanwell: Power Supply DC-DC Enclosed Converter Output 24V 40A - SD-1000L-24
SKU
MD-01202
PKR115,000.00
Quantity: 0
Meanwell - Power Supply DC-DC Enclosed Isolated Converter SD-1000L-24 Input 19-72VDC; Output 24V 40A 960W
- Buy 3 for PKR111,550.00 each and save 3%
- Buy 10 for PKR109,250.00 each and save 5%
Category: Power Supply
| Categories | Power Supplies - External/Internal (Off-Board) |
|---|---|
| DC DC Converters | |
| Manufacturer | MEAN WELL USA Inc. |
| Series | SD-1000 |
| Part Status | Active |
| Type | Enclosed |
| Voltage - Input (Min) | 19V |
| Voltage - Input (Max) | 72V |
| Number of Outputs | 1 |
| Voltage - Output 1 | 24V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 40A |
| Power (Watts) | 960W |
| Voltage - Isolation | 2000V |
| Applications | ITE (Commercial) |
| Efficiency | 88% |
| Operating Temperature | -20°C ~ 60°C (With Derating) |
| Mounting Type | Chassis Mount |
| Size / Dimension | 11.61" L x 5.00" W x 1.61" H (295.0mm x 127.0mm x 41.0mm) |
| Approvals | CB, CE |
| Part Number | SD-1000L-24 |
|---|---|
| Manufacturer | Mean Well |
| Weight (KG) | 1.950000 |
| Packing Unit | 1 Piece |
| Product Availability | In Stock |
| Voltage (V) | NA |
| Output Voltage | 24V |
| Output Impedance | NA |
| Power | 960W |
| Current (A) | 40 |
| Temperature Range (Max) | 60°C |
| Temperature Range (Min) | -20°C |
