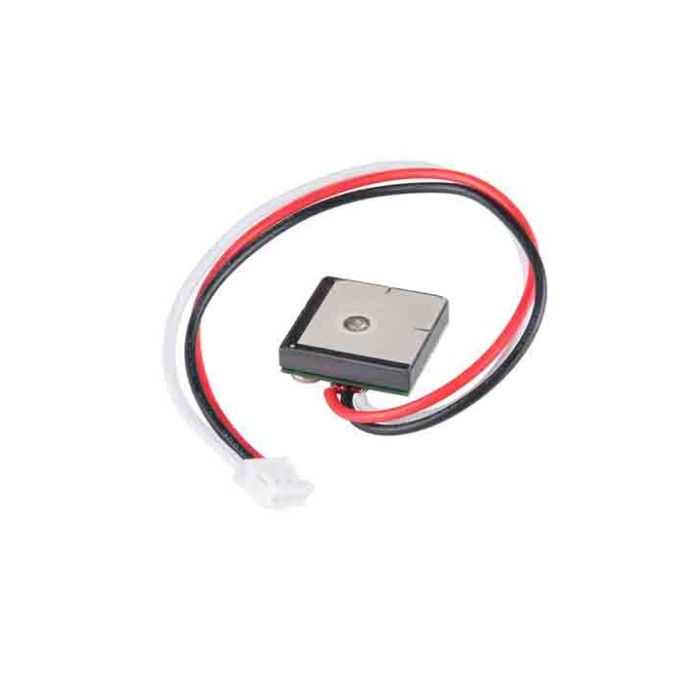

GPS Receiver GP20U7 (56 Channel)

SKU
MD-00545
PKR1,900.00
Quantity: 0
The GP-20U7 is a compact GPS receiver with a built-in high performances all-in-one GPS chipset.

The GP-20U7 is a compact GPS receiver with a built-in high performances all-in-one GPS chipset. The GP-20U7 accurately provides position, velocity, and time readings as well possessing high sensitivity and tracking capabilities. Thanks to the low power consumption this receiver requires, the GP-20U7 is ideal for portable applications such as tablet PCs, smart phones, and other devices requiring positioning capability.

 This 56-channel GPS module, that supports a standard NMEA-0183 and uBlox 7 protocols, has low power consumption of 40mA/3.3V (max), an antenna on board, and -162dBm tracking sensitivity. With 56 channels in search mode and 22 channels “all-in-view” tracking, the GP-20U7 is quite the work horse for its size.

FEATURES:

  1. 56-Channel Receiver (22 Channel All-in-View)
  2. Sensitivity : -162dBm
  3. 2.5m Positional Accuracy
  4. Cold Start : 29s (Open Sky)
  5. 40mA /3.3V
  6. 3-pin JST Terminated Cable

 RELATED DOCUMENTS:

  1. Datasheet.

PACKAGE INCLUDES:

  1. 1 X GPS Receiver GP20U7 (56 Channel)



Part Number NA
Weight (KG) 0.020000
Manufacturer Sparkfun
Voltage (Min) NA
Voltage (Max) 3.4V
Output Voltage NA
Power -162dBm
Current (A) 40m
Frequency 1575.42 MHz
Load Cell (kg) NA
Output Type Digital and Analog
Range 56 Channel
Temperature Range (Min) -40°C
Operating System NA
Resistance Value (Ohm) NA
Baud Rate NA
Interface NA
Num of Pin's NA
Diameter NA
Size (mm) NA
