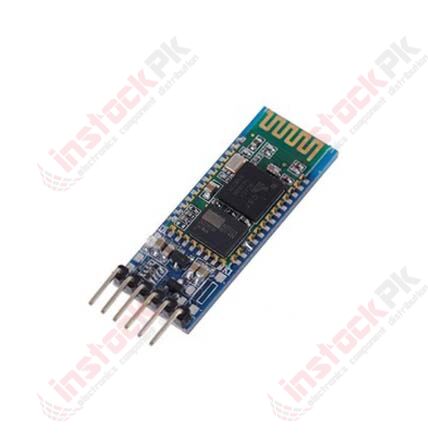

Bluetooth Serial Pass-Through Module HC-06 HC06

HC-06 wireless Bluetooth serial pass through transceiver module can be used for replacing RS232 cable between a microcontroller and PC. The module also can be used for connecting the Cell Phones with Bluetooth Peripheral to Embedded Boards or Machines using standard Bluetooth SPP Profile.

SPECIFICATIONS:

1. Default serial port setting : 9600, N, 8, 1
2. Pairing code : 1234
3. Running in slave role: Pair with BT dongle and master module
4. KEY: according to the data sheet, pull-up this pin while power-on-reset of the module to enforce AT mode.
5. VCC is indicated in the range of 3.6V-6V.
6. GND: Ground
7. TXD: serial output of the module, to be connected to RX of the microcontroller. Note that this signal is using 3.3V logic level
8. RXD: serial input of the module, to be connected to the TX of the microcontroller. Note that this signal is using 3.3V logic levels.
9. STATE: connected to LED2 (Pin32) of the module.

RELATED DOCUMENTS:

1. Bluetooth serial pass-through module HC-06 Tutorial
2. Bluetooth serial pass-through module HC-06 Datasheet

APPLICATIONS:

1. Industrial serial port bluetooth, Drop-in replacement for wired serial connections, transparent usage. You can use it
2. simply for a serial port replacement to establish connection between MCU and GPS, PC to your embedded project and etc.
3. Computer and peripheral devices
4. GPS receiver
5. Industrial control
6. MCU projects

PACKAGE INCLUDES:

1. 1 X Bluetooth serial pass-through module HC-06
