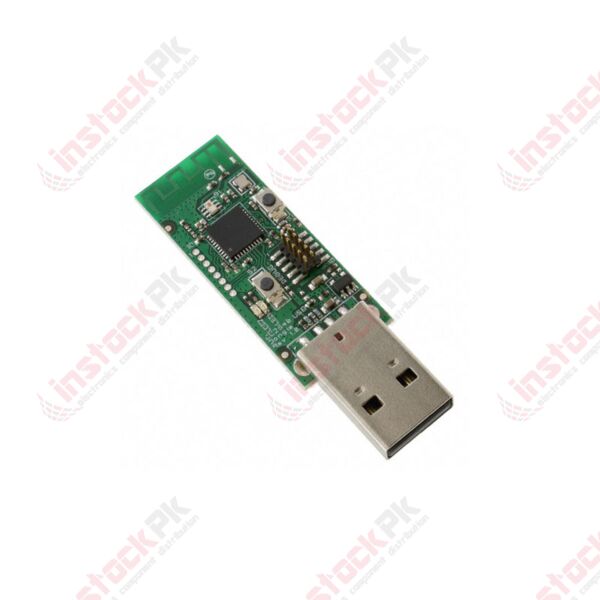

Bluetooth USB Dongle Module CC2540

SKU
MD-00316
PKR2,450.00
Quantity: 6
The dongle can be used to enable Bluetooth low energy on your PC. It can also be used as a packet sniffer for analyzing the BLE protocol and for software and system level debugging.

The CC2540EMK-USB is an evaluation module kit for CC2540 Bluetooth low energy USB Dongle. The dongle can be used to enable Bluetooth low energy on your PC. It can also be used as a packet sniffer for analyzing the BLE protocol and for software and system level debugging.

FEATURES:

  1. True single chip BLE solution
  2. Excellent link budget (up to 97dB), enabling long range
  3. Applications without external front end
  4. Accurate digital received signal strength indicator (RSSI)
  5. Suitable for systems targeting compliance with worldwide radio frequency regulations
  6. TPS62730 compatible
  7. High performance and low power 8051 microcontroller core
  8. Bluetooth v4.0 compliant protocol stack for single mode BLE solution
  9. Sample applications and Profiles
  10. Multiple configuration options

SPECIFICATIONS:

  1. 2.4-GHz IEEE 802.15.4 Compliant RF Transceiver
  2. Excellent Receiver Sensitivity and Robustness to Interference
  3. Programmable Output Power Up to 4.5 dBm
  4. Few External Components
  5. Only a Single Crystal Needed for Asynchronous Networks
  6. 6-mm × 6-mm QFN40 Package
  7. USB 2.0 Certified Full Speed Device (12 Mbps)
  8. 5 Highly Flexible Endpoints
  9. 1-KB Dedicated FIFO
  10. DMA Access to FIFO
  11. No 48-MHz Crystal Required
  12. Active Mode RX (CPU Idle): 24 mA
  13. Active Mode TX at 1 dBm (CPU Idle): 29 mA
  14. Power Mode 1 (4 µs Wake-Up): 0.2 mA
  15. Power Mode 2 (Sleep Timer Running): 1 µA
  16. Power Mode 3 (External Interrupts): 0.4 µA

PIN CONFIGURATIONS:

Pin configurations

RELATED DOCUMENTS:

  1. Bluetooth USB Dongle Module CC2540 Datasheet
  2. Bluetooth USB Dongle Module CC2540 Schmatic
  3. Bluetooth USB Dongle Module CC2540 User Guide

PACKAGE INCLUDES:

  1. 1 X Bluetooth USB Dongle Module CC2540
Part Number NA
Manufacturer Texas Instrument
Weight (KG) 0.005100
Product Availability In Stock
