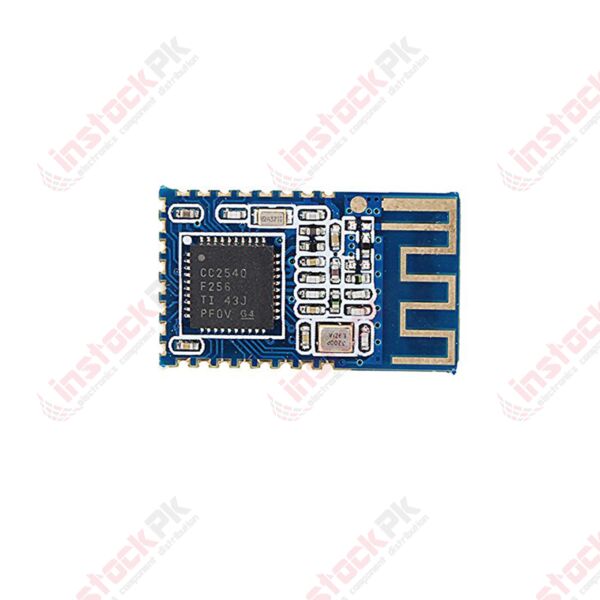

Bluetooth Uart Transceiver Module CC2540

The module supports UART interface, and supports Bluetooth SPP serial protocol, small size, low power consumption, Send and receive sensitivity advantages.This module is mainly used for short-distance wireless transmission of data in the field. And PC can be easily connected Bluetooth devices. Modules can also communicate between two data. Avoid cumbersome cable connections, direct serial cable replacement.

SPECIFICATIONS:

1. Operating frequency: 2.402GHz - 2.480GHz ISM
2. Sensitivity: ≤-88dBm at 0.1% BER
3. Transfer Rate: Asynchronous: 6 kbps Synchronous: 6 kbps
4. Power supply: 1.8V - 3.6V
5. Remote control (SMS alerts, phone calls reminding function)
6. Ultra-low power consumption (static power consumption 10 ua)

APPLICATIONS:

1. Bluetooth Car Handsfree
2. Bluetooth GPS
3. Bluetooth wireless data transmission.
4. Remote control and monitoring.
5. POS systems, wireless keyboard and mouse
6. Transportation, underground locating and alarm.
7. Automated data acquisition system.
8. Wireless data transmission; banking system.
9. Wireless data collection
10. Bluetooth printer
11. Building automation, security, wireless monitoring and control room equipment, access control systems.

PACKAGE INCLUDES:

1. 1 X Bluetooth Uart Transceiver Module CC2540
