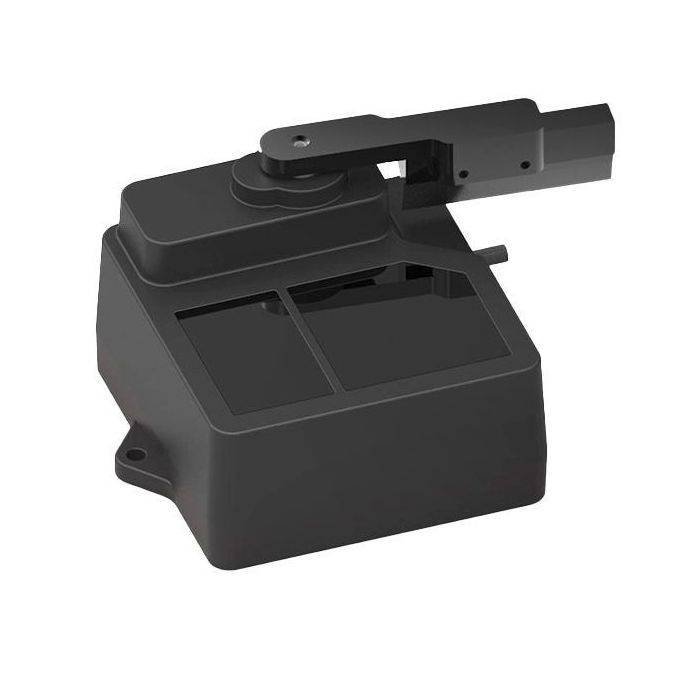

Benewake: Lidar Material Level Detection Sensor with Dust Removal 25M - UART - TF02-Pro-W

• TF02-Pro-W Material Level Detection LiDAR - UART
• Offers a single-point ranging LiDAR
• Based on the ToF principle
• Comes with a 25 m detection range
• Supplied with a unique dust-removal wiper
• Supports UART, I2C, RS485 communication interfaces

The TF02-Pro-W Material Level Detection LiDAR - UART is a single-point ranging LiDAR specially developed for level detection, based on the ToF principle, with a 25 m detection range and cm-level detection accuracy. It is supplied with a unique dust-removal wiper, which automatically cleans the lens of the front panel of LiDAR regularly to solve the soiling problems, and can maintain the accuracy of ranging detection in a heavy dust environment.

The optimized optical design and adaptation algorithm of TF02-Pro-W ensures the stability and accuracy of detection performance under different reflectivity backgrounds and different ambient temperatures and achieves stable detection results without interference from ambient light outdoors. The product is equipped with a unique dust-removal wiper, which can maintain the ranging accuracy in a heavy dust environment.

TF02-Pro-W is small and easy to integrate and install, supports battery power, with a self-cleaning function, and reduces manual maintenance costs. Based on the ToF principle, non-contact detection, to avoid material and sensor pollution; 3° FoV, to improve the ranging accuracy of the siloed monitoring.

TF02-Pro-W supports UART, I2C, RS485 communication interfaces, and Modbus protocol for easy system integration. It can provide LoRaWAN, 4G, Wi-Fi, and other data transmission solutions. TF02-Pro-W supports battery power, no additional wiring is required.
