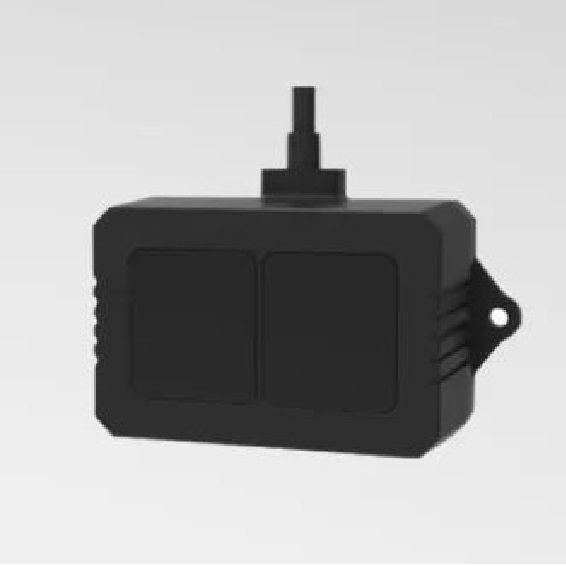

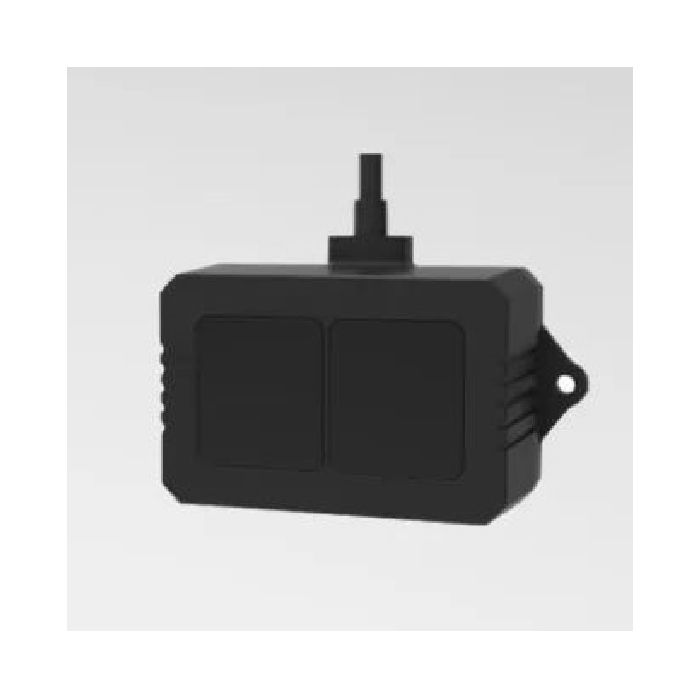

Benewake: LIDAR Distance Measuring Range Finder 40M - TF02-Pro

SKU
MD-01211-40-Pro
-19%
Special Price PKR29,400.00 was PKR36,500.00
Quantity: 6

Description

  • Benewake TF02-Pro LIDAR LED Rangefinder IP65
  • Features a single-point ranging LiDAR
  • Can achieve stable, accuracy, sensitive and high-frequency range detection
  • Offers a sensor range up to 40 meters
  • Has an ambient light resistance up to 100 Klux

The Benewake TF02-Pro LIDAR LED Rangefinder IP65 (40m) is a single-point ranging LiDAR based on TF02 upgrade. The performance and accuracy of different reflectivity are improved, it can achieve stable, accuracy, sensitive and high frequency range detection.

Benewake TF02-Pro LIDAR LED Rangefinder IP65 (40m) - Click to Enlarge

The protection design of the TF 02 is based on the IP65 level, which prevents it from the dust, water, and corrosion. It is anti-interferential from the strong light outdoors. It can work under 100K lux light without the interference from the temperature, humidity, light, electronics and airflow. High sensitivity, measuring distance up to 22 meters, accuracy in cm level.

Benewake TF02-Pro LIDAR LED Rangefinder IP65 (40m) - Click to Enlarge

Scan frequency up to 100 Hz, real-time detection of distance with a 100 times/second refresh rate for more accurate data. TF02 has a complete system, containing a protective shell made of materials with a high transmittance of infrared, which doesn't affect the optical performance. It has been widely used in height fixing and terrain following of drones, especially in agriculture.

What's Included

  • 1 x Benewake TF02-Pro LIDAR LED Rangefinder IP65 (40m)

Dimensions

Size

Benewake TF02-Pro LIDAR LED Rangefinder IP65 (40m) - Click to Enlarge

  • 69 x 41.5 x 26 mm (L x W x H)
  •

Specifications

Product performance

Operating Range:

  • 0.05 ~40 m @90% reflectivity
  • 0.05 ~13.5 m @10% reflectivity
  • 0.05 ~40 m @90% reflectivity (100 Klux)
  • 0.05 ~13.5 m @10% reflectivity (100 Klux)
  • Accuracy: ±5 cm (0.05 ~5 m), ±1% (5~40 m)
  • Distance Resolution: 1 cm
  • Frame rate: 100 Hz
  • Repeatability: 1σ: <2 cm (0.05 ~35 m @90% reflectivity)
  • Ambient light resistance: 100 Klux
  • Operation t temperature: -20 ~ 60 °C
  • Protection Level: IP65

Optical Parameters

  • Light source: VCSEL
  • Central wavelength: 850 nm
  • FOV: 3°
  • Photobiological safety: Class 1 (EN60825)

Electrical Parameters

  • Supply voltage: DC 5 V ~ 12 V
  • Average Current: ≤200 mA
  • Power consumption: ≤1 W
  • Peak Current: 300 mA
  • Communication level: LVTTL (3.3 V)
  • Communication interface: UART/I2C

Other Parameters

  • Weight: 50 g (with cables)
  • Enclosure material: PC/ABS
  • Storage temperature: -30 ~80 °C
  • Cable length: 80 cm
Part Number TF02-Pro
Manufacturer Benewake
Weight (KG) 0.020000
Measuring Range 40 Meter
Product Availability In Stock
Sampling Rate NA
