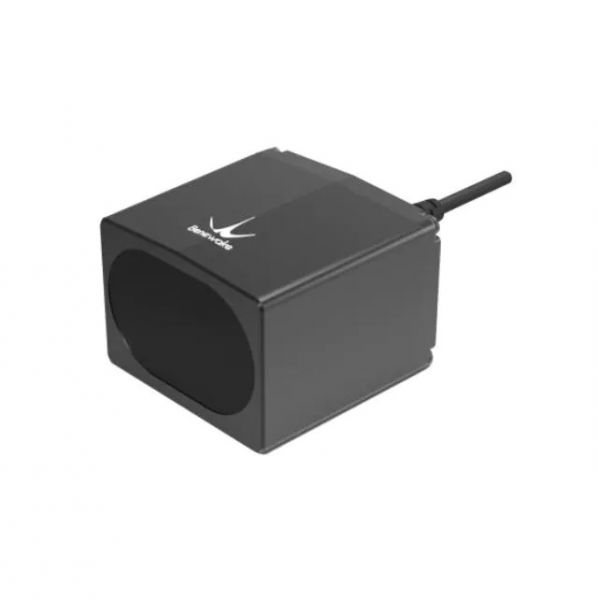

Benewake: Long-Distance LiDAR Module TF03-100 Meter
Description
The Benewake TF03 Long Range LiDAR adopts the pulsed time-of-flight (ToF) principle. The unique design of the optical system and the signal processing circuit improves the detecting range, while maintains a compact size. In addition to increasing the range to more than 100 meters, the key parameters also have excellent performance in the whole range, such as distance resolution, accuracy, repeatability and detection frequency.
The shell of TF03 is made of aluminum alloy and infrared band-pass glass to improve the overall strength of the machine. The level of protection is IP67, which can be applied in various extreme environments. The TF03 supports multiple interfaces, including UART, CAN, RS232 and RS485, which can satisfy different applications.
Multiple parameters of TF03 can be configured by customers, such as the measuring frequency, baud rate, trigger mode, over-range assignment, etc. TF03 is also equipped BootLoader function, enabling users to upgrade product firmware locally. For more details about the parameter configuration, please refer to TF03 Operation manual.
Features
- Maximum range of up to 180 meters with 1% accuracy
- Up to 10,000 readings per second
- Not affected by natural light up to 100Klux
- Industrial level: anti-shock and anti-vibration
- IP67 rating in aluminum alloy shell
- Configurable parameters such as frequency, baud, trigger mode, and more
| Part Number | TF03-100 |
|---|---|
| Manufacturer | Benewake |
| Weight (KG) | 0.080000 |
| Measuring Range | 100 Meter |
| Product Availability | In Stock |
| Sampling Rate | NA |
