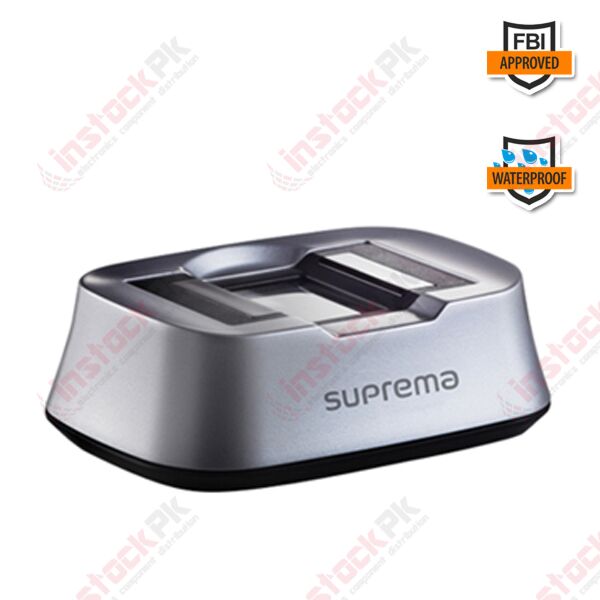

Suprema - Fingerprint Scanner BioMini Slim S20 FBI Certified (Refurbished)

PKR 13,800.00

SKU

MD-01126

FBI PIV and Mobile ID FAP20 Certified USB Fingerprint Scanner BioMini Slim has been designed to provide a high level security solution for identity access management solutions for authentication. With IP65 grade dust and waterproof form factor, BioMini Slim features a sleek ergonomic design with the latest 500dpi slim optical sensor, which boasts a large platen size for easy and reliable fingerprints capturing as well as advanced LFD (Live Finger Detection) technology.

Details

BioMini Slim

FBI PIV and Mobile ID FAP20 Certified USB Fingerprint Scanner

BioMini Slim has been designed to provide a high level security solution for identity access management solutions for authentication. With IP65 grade dust and waterproof form factor, BioMini Slim features a sleek ergonomic design with the latest 500dpi slim optical sensor, which boasts a large platen size for easy and reliable fingerprints capturing as well as advanced LFD (Live Finger Detection) technology.

Features

Multi-Dynamic Range Technology

BioMini Slim can acquire fingerprint regardless of external light or fingerprint conditions, applying Suprema’s proprietary MDR technology, an improvement on existing HDR technology. It can get normal fingerprints even under 100,000 LUX direct light, which is equivalent to direct sunlight.

Advanced Live Finger Detection (LFD) Technology

BioMini Slim provides advanced Live Finger Detection technology by applying a machine learning method that analyzes and categorizes image patterns according to optical characteristics

FBI PIV and Mobile ID FAP20 Certified Image Quality

BioMini Slim is the world’s thinnest PIV certified FAP20 optical scanner. The Scanner features Large Platen that spans 0.71” x 1.0” (18mm x 25.4mm) wide, which is well above the FAP20 Standard that spans 0.6” x 0.8”

Rugged IP65 rated Dust and Waterproof Form Factor

BioMini Slim Improves environment protection for authentication by offering IP65 rating that features dust tight exterior that will prevent any dust particles invading inside the sensor. It will also withstand moisture and water spills that may occur during usage in outdoor settings.

Automatic Finger Placement Detection

Automatic Finger Placement Detection function allows BioMini Slim to capture your fingerprint by triggering with finger placement on the sensor. The function makes the capturing of fingerprint easier by eliminating manual process.

Specification

Main	Sensor Type	Optical
	Resolution	500dpi / 256 gray
	Platen Size	18.0 x 25.4 mm (0.71” X 1.0”)
	Sensing Area	17.0 x 25.0 mm (0.67” X 0.99”)
	Image Size	320 x 480 pixels
	Compression Standards	WSQ
	Template Format	Suprema, ISO19794-2, ANSI-378
	Image Format	ISO19794-4
	IP Rating	IP65
Interface	USB	2.0 High-speed
Hardware	Operating Temperature	-10°C ~ 50°C
	Certification	CE, FCC, KC, UL, WHQL, USB-IF, WEEE
	Dimensions	82.0 x 57.7 x 27.0 mm (W x L x H)
Compatibility	Operating System	Android 4.1 (Jelly Bean) and Above Windows Linux

Applications

PC/Network Security
Smartcard Application
Time and Attendance System
Public Application
Health and Medical
Telecommunication
Banking/Finance
POS/mPOS
ATM/Kiosk
Enterprise

More Information

More Information
Part Number	S20
Manufacturer	Suprema
Weight (KG)	0.120000
