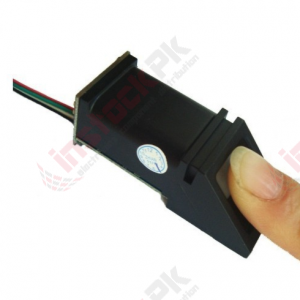

Optical Fingerprint Sensor Module (FPM10A)

Optical fingerprint / biometeric sensor module – FPM10A with TTL/UART interface with full firmware support.

Specifications:

1) Power supply voltage: DC 3.6~6.0V
2) Supply current: working current: <120mA
3) Peak current: <140mA
4) The time of fingerprint image input: < 1 seconds
5) The window size: 14 x 18 mm
6) Profile: 256 bytes
7) Template file: 512 bytes
8) Storage capacity: 1000
9) False accept rate (FAR): < 0.001% (safety grade 3)
10) FRR (FRR): < 1% (safety grade 3)
11) The search time: < 1 seconds (1:500, mean)
12) Computer interface: UART (TTL logic level)
13) The communication baud rate (UART): (9600 x N) BPS where N=1 ~ 12 (the default value of N=6, namely 57600bps)
Working environment: temperature: -20°C to +50°C
14) Relative humidity: 40%RH to 85%RH (no treatment) 15) Storage conditions: temperature: -40°C to +85°C 16) Relative humidity: < 85%H (no treatment) 17) Dimensions (L * W * H): 56 x 20 x 21.5mm

Pinouts:
1) VCC (RED)
2) GND (BLACK)
3) RXD (YELLOW)
4) TXD (GREEN)
