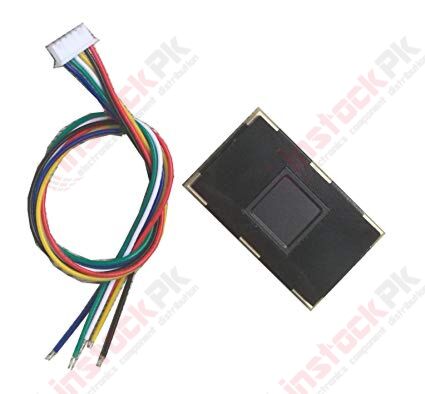

Semiconductor Fingerprint Module R302
SKU
MD-00354
PKR2,850.00
Quantity: 0
Fingerprint reader R302 has adapted to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have a high recognition rate.
- Buy 2 for PKR2,790.00 each and save 2%
- Buy 5 for PKR2,720.00 each and save 5%
Categories: Smart Boards, Sensors, Sensor Modules, Biometric Sensors
Fingerprint reader R302 has adapted to the conditions was the fingers, whether it is dry fingers, wet fingers, light texture fingerprints fingers, and old fingers, all have a high recognition rate.
FEATURES:
- False Accept Rate FAR ( the actual test value ): 0.0001%
- FRR FRR ( actual test value ): 0.01%
- 50 Mei average matching speed: 0.5 Miao
- The number of stored fingerprints: 500 Mei (standard configuration)
- Antistatic ability: Standard 15KV
- High abrasion strength: 1 million
- Working humidity: 0-90%
- Interface Standard: RS232 (TTL), USB.
SPECIFICATIONS:
- Fingerprint capacity: 500
- FAR< 0.001 %(Security Level:3 )
- FRR< 0.1 %(Security Level:3 )
- Fingerprint template size: 820 Bytes
- Security level: 1-5,default is 3
- Time of Response: Fingerprint pretreatment < 0.2 s
- UART Communication: Parity = NONE, Stop Bit = 1
- Baud rate support: Default is 57600BPS
CIRCUIT DIAGRAM:
APPLICATIONS:
- Can be embedded into a variety of end products.
- Access control.
- Attendance.
- Safety deposit box
PACKAGE INCLUDES:
- 1 X Semiconductor Fingerprint Module R302
| Part Number | NA |
|---|---|
| Weight (KG) | 0.020000 |
| Manufacturer | Made in China |
| Voltage (Min) | 4.3V |
| Voltage (Max) | 6V |
| Output Voltage | NA |
| Power | NA |
| Current (A) | 100m |
| Frequency | NA |
| Load Cell (kg) | NA |
| Output Type | NA |
| Range | NA |
| Temperature Range (Min) | -25°C |
| Temperature Range (Max) | 55°C |
| Operating System | NA |
| Num of Pin's | NA |
| Diameter | NA |
| Size (mm) | 45X25mm |
