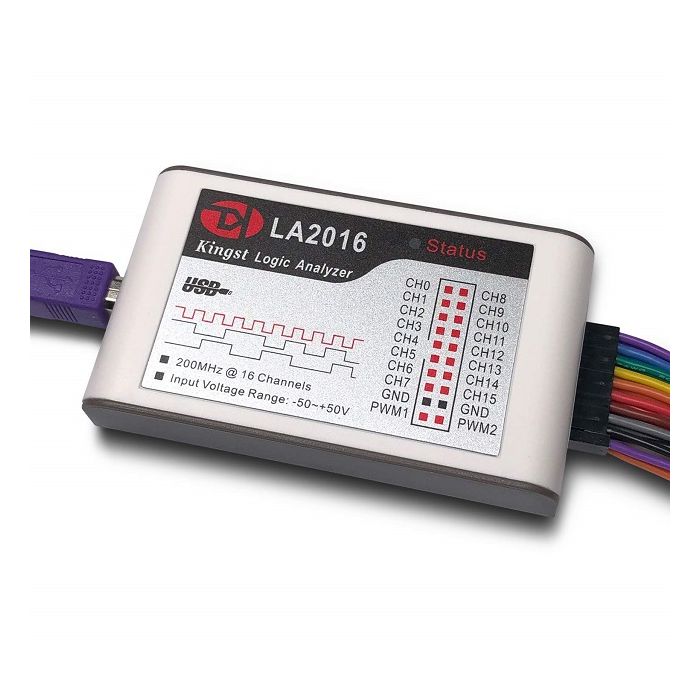

Kingst: Real Time USB Logic Analyzer 16-Channel (100MHz/200MHz)

SKU
MD-00572
PKR24,500.00
Quantity: 5
Logic16 is a 16 channel logic Analyzer capable of 100M max sample rate
  • Buy 3 for PKR23,275.00 each and save 5%

Logic16 is a 16 channel logic Analyzer capable of 100M/200M max sample rate. Logic16 has a much larger hardware-side buffer than Logic, considerably enhancing its reliability for extremely long captures at high speeds.

FEATURES:

  1. Logic16 Logic Analyzer saleae16 USB Logic Analyzer 200M max sample rate,16CH,10B
  2. Can analyse : UART, I2C, SPI, 1-Wire, Atmel SWI, Biss C, CAN, DMX-512, HDMI CEC, I2S/PCM, JTAG, LIN, MDIO, Manchester, PS/2 keyboard/mouse, Simple Parallel, UNI/O and USB1.1 protocols
  3. Samples,MCU,ARM,FPGA,DSP debug TOOL
  4. Support Original software 1.1.15&1.1.16&1.1.17
  5. Logic Analyzer USB Saleae 100M –3CH, 50M–6CH,32M–9CH,16M–16CH,
  6. Billions of samples Logic16 can save as many as 10B samples, letting you capture even the most elusive events. No more dealing with frustratingly small sample buffers
  7. Enhanced hardware-side buffer

SPECIFICATIONS:

  1. No of Channels: 16
  2. Logic levels Supported: 1.8V to 5V. Logic16 works with 1.8V logic levels, as well as 2.0V, 2.5V, 3.3V and 5V (and the others in between).

COMPATIBLE WITH:

  1. supports Win7 (32&64), 2K,XP, VISTA, Linux(32&64), and mac os.

PACKAGE INCLUDES:

  1. 1x 16 Channel Logic Analyzer
  2. 1x Female to Female probes (16 data + 4 GND connections)
  3. 1x High quality USB cable
  4. 18x multi colored data capture clamps
  5. 1x Software CD



Part Number LA1010 / LA2016
Manufacturer Made in China
Weight (KG) 0.020000
Size (mm) NA
Packing Unit 1pc
Product Availability In Stock
