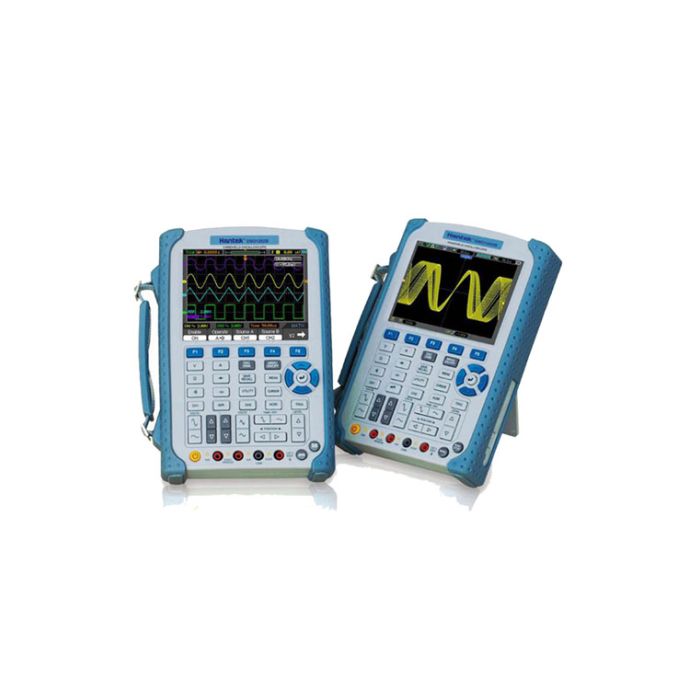

Digital Handheld Oscilloscope With DMM DSO1202B (200MHz)
SKU
MD-00450
PKR74,000.00
Quantity: 0
Digital Handheld Oscilloscope With DMM DSO1202B (200MHz)
- Buy 3 for PKR70,300.00 each and save 5%
- Buy 5 for PKR66,600.00 each and save 10%
Categories: Tools, Oscilloscopes
Digital Handheld Oscilloscope With DMM DSO1202B (200MHz)
FEATURES:
- High Bandwidth 60MHz-200MHz Oscilloscope, 1GS/s sample rate, and 6000 Counts DMM with analog bargraph.
- 1M Memory Depth.
- High Refresh Rate (2500 frames).
- One-touch automatic setup optimizes the position, range, timebase, and triggering to assure a stable display of virtually any waveform.
- Easy-to-use pop-up menu with built-in multi-language help system.
- 32 Automatic Measurements.
- Waveform Math: Add, Subtract, Multiply, and Divide.
- Store and recall over.
- Automatic cursor tracking measurements.
- XY Mode.
- Built-in FFT function converts a time-domain signal into its frequency components to measure harmonic content and distortion in systems.
- Waveform Recorder to capture/replay input waveforms from CH1 and CH2 with a maximum record length of 1000 frames.
- Pass/Fail function compares a stored waveform to an unknown input.
- Average Mode for smoothing waveforms.
- Square Wave Output (2V, 1kHz) for probe adjustment.
- USB Host/Device 2.0 full-speed interface ,support removeable disk, LAN Optional ,Easy to control by PC or long-distance.
FUNCTIONAL DIAGRAM:
RELATED DOCUMENTS:
RELATED VIDEO:
PACKAGE INCLUDES:
- 1 X Digital Handheld Oscilloscope With DMM DSO1202B (200MHz)
| Weight (KG) | 2.800000 |
|---|---|
| Manufacturer | Hantek |
| Maximum Input Voltage | DC Input:12--17VDC, 1500mA |
| Input Coupling | AC, DC, GND |
| Input Impedance | 1MΩ±2% ‖20pF±3pF |
| Probe Attenuation | 1X, 10X |
| Sampling Mode | Real-Time Sample: 1GS/s,Equivalent Sample: 25GS/s |
| Sampling Rate | 1GSa/s |
| Storage Depth | Single-channel: Maximum 1M; Dual-channel:Maximum 512k |
| Acquire Mode | Sampling, peak value detection, average value |
| Average Time | 2nS/div-2000S/div (in a 2, 4, 8 sequence) |
| Channel Amount | 2 |
| Bandwidth | 200MHz |
| Vertical Resolution | 8-bit resolution, all channel sampled simultaneously |
| Vertical Coupling | AC,DC,GND |
| Hold-off Range | 100ns-10s |
| Edge Trigger | Trigger on the rising or falling edge |
| Reading Resolution Ratio | 8 bits |
| Display Resolution (Pixels) | 640 x 480 |
| Contrast Ratio | Adjustable (16 gears) with the progress bar |
| Power Supply | AC Input:100-240VACRMS,0.6A MAX,50Hz~60Hz; DC Output:9V,2A |
| Power | <30W |
| Frequency | 1kHz |
| Background Intensity (typical) | NA |
| Waveform Display Range | NA |
| Afterglow | NA |
| Menu display | NA |
| Screen Saver | NA |
| Interpolation Mode | NA |
| Screen Color Mode | NA |
| Display Language | English |
| Temperature Range (Min) | -40°C |
| Humidity | +104℉ or below (+40℃ or below): ≤90% relative humidity; 106℉ to 122℉ (+41℃ to 50℃): ≤60% relative humidity |
| Size (mm) | 245mm x 163mm x 52mm |
