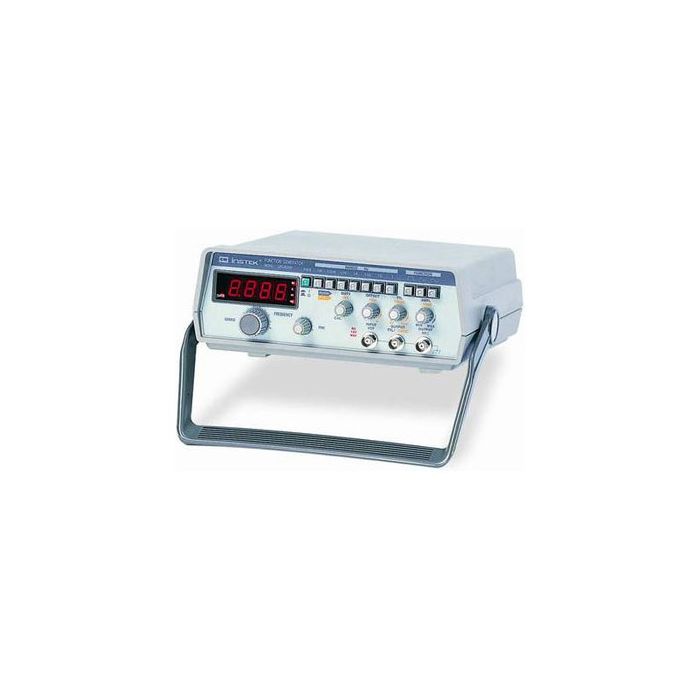

Instek 1-Channel Function Generator GFG-8020H (0.2Hz ~2MHz)
PKR 35,500.00
SKU
MD-00442
- Buy 5 for PKR 26,505.00 each and save 25%
- Buy 20 for PKR 25,110.00 each and save 29%
The GFG-8020H Function Generator delivers one of the most economic and feature-rich solutions available in the 2MHz frequency range.
The GFG-8020H Function Generator delivers one of the most economic and feature-rich solutions available in the 2MHz frequency range. The GFG-8020H offers extra value with CMOS output, a built-in 4-digit counter, Coarse and Fine tuning with a 1000 : 1 Tuning Range, and a digital LED display. Combined with functions, such as Variable DC Offset Control, Output Overload Protection, and VCF input.
FEATURES:
- Frequency Range : 0.2Hz ~ 2MHz
- Coarse and Fine Tuning
- Waveform : Sine, Triangle, Square, TTL Pulse
- CMOS Output
- Built-In 4 Digits Counter
- Large 0.5" LED Display
- Variable DC Offset Control
- Output Overload Protection
- VCF Input Function
PHYSICAL DIAGRAM:
RELATED DOCUMENTS:
APPLICATIONS:
- Test & Measurement
- Maintenance & Repair
PACKAGE INCLUDES:
- 1 X Instek1-Channel Function Generator GFG-8020H (0.2Hz ~2MHz)
| Weight (KG) | 0.050000 |
|---|---|
| Manufacturer | GWIntsek |
| Product Availability | In Stock |
| Power | AC 100V/120V/220V/230V±10%, |
| DC Voltage (V) | NA |
| AC Voltage(V) | NA |
| AC Current (A) | NA |
| DC Current (A) | NA |
| Operating Voltage | NA |
| Inductance | NA |
| Capacitance (F) | NA |
| Resistance (Ω) | NA |
| Range | 7 Range (1, 10, 100, 1k, 10k, 100k, 1M) |
| Target Distance | NA |
| Frequency | 0.2Hz - 2MHz(7 Ranges) |
| Test Parameters | NA |
| Frequency Response | NA |
| Measurement Mode | NA |
| Display Count | 4 digit LED display |
| Output Impedance | NA |
| Duty Cycle | NA |
| Temperature Range (Min) | -40°C |
| USB/RS232 Interface | No |
| True RMS (TRMS) | No |
| Auto Range | No |
| Manual Range | No |
| Diode Test | No |
| Transistor Test | No |
| Continuity Test | No |
| Bluetooth Interface | No |
| Low Battery Indication | No |
| Relatively Measuring | No |
| Data Hold | No |
| Min-Max / Peak Hold | No |
| Auto Power-off | No |
| Overload Protection | Yes |
| Shockproof Protection | No |
| Backlight | No |
| "Analogue" Bargraph | No |
| Size (mm) | NA |
