LED Diode Red SMD 0805 620nm-625nm

SKU
MD-01318

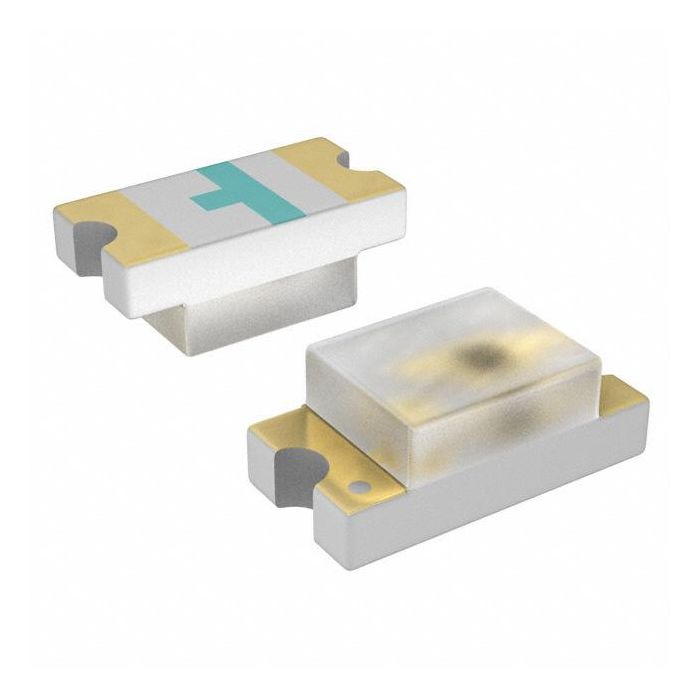

main product photo
PKR10.00
Quantity: 1450
  • Clear Red Output
  • arrowIdeal for Power or Charging Indication LED on PCB
  • arrowStandard SMD 0805 Size
  • arrowRoHS Compliant
  • Buy 25 for PKR8.00 each and save 20%
  • Buy 100 for PKR5.00 each and save 50%
  • Buy 500 for PKR4.00 each and save 60%
  • Buy 2500 for PKR3.00 each and save 70%
Notify me when the price drops
Category: Light Emitting Diode (LED)

Absolute Maximum Ratings

Operating Free Air Temperature:

0°C to +70°C

Storage Temperature Range:

-65°C to +150°C



Electrical Characteristics

Symbol Parameter Conditions Min Typ Max Units
Vf Forward Voltage Vcc=Min, Ii=-20mA 1.6 2.0 2.4 V
Vr Reverse Voltage Vcc=Min, Ioh=MAX, Vil=MAX     5.0 V
Ir Reverse Current Vr=5V     10 µA
If Max DC Forward Current Vcc=Min, Iol=MAX, Vih=MAX     25 mA
Ipeak Peak DC Forward Current Vcc=Min, Iol=MAX, Vih=MAX     100 mA
Pd Max Power Dissipation Vcc=Max, Vi=5.5V     80 mW
  Typical Viewing Angle     120   Deg
  Typical Luminous Intensity   8 20   MCD
  Dominant Wavelength Vcc=Max, If=20mA   640   nm
Part Number SMDLED0805RED
Weight (KG) 0.000100
Product Availability In Stock
