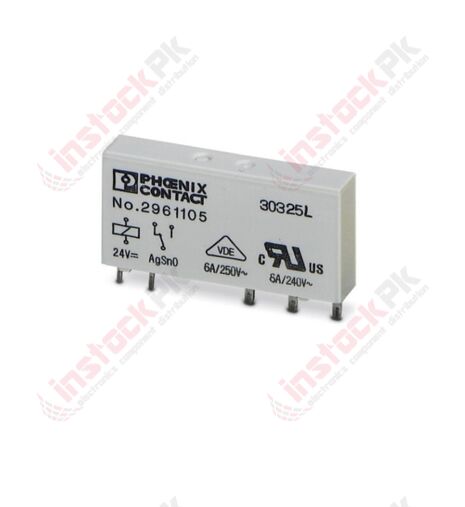

Phoenix Contact Single Relay- REL-MR- 24DC/21 (2961105)

SKU
MD-00473
PKR1,150.00
Quantity: 3
Phoenix Contact Single Relay- REL-MR- 24DC/21 (2961105)
  • Buy 50 for PKR1,092.50 each and save 5%
  • Buy 250 for PKR1,058.00 each and save 8%

Safe isolation according to DIN EN 50178 between coil and contact.High degree of protection up to RT III depending on type (wash-proof) and Power contacts up to 6 A.

FEATURES:

  1. Test voltage relay winding/relay contact: 4 kV AC (50 Hz, 1 min.)
  2. Operating mode: 100% operating factor
  3. Degree of protection:  RT III (wash-proof)
  4. Mechanical service life: 2 x 107 cycles
  5. Standards/regulations: IEC 60664
  6. Degree of pollution: 3
  7. Overvoltage category: III
  8. Mounting position: any
  9. Assembly instructions: In rows with zero spacing

SPECIFICATIONS:

  1. Nominal input voltage UN: 24 V DC
  2. Typical input current at UN: 7 mA
  3. Typical response time: 5 ms
  4. Typical release time: 2.5 ms
  5. Coil resistance: 3390 Ω ±10 % (at 20 °C)
  6. Power dissipation for nominal condition: 0.17 W
  7. Contact material: AgSnO
  8. Maximum switching voltage: 250 V AC/DC
  9. Minimum switching voltage: 5 V (at 100 mA)
  10. Min. switching current : 10 mA (at 12 V)
  11. Maximum inrush current: 10 A (4 s)
  12. Limiting continuous current: 6 A
  13. Interrupting rating (ohmic load) max: 140 W (at 24 V DC)
  14. Switching capacity in acc. with DIN VDE 0660/IEC 60947: 2 A (at 24 V, DC13)

CLASSIFICATIONS:

eCl@ss:

  1. eCl@ss 4.0: 27371104
  2. eCl@ss 4.1: 27371104
  3. eCl@ss 5.0: 27371001
  4. eCl@ss 5.1: 27371001
  5. eCl@ss 6.0: 27371001
  6. eCl@ss 7.0: 27371001
  7. eCl@ss 8.0: 27371601
  8. eCl@ss 9.0: 27371601

ETIM:

  1. ETIM 2.0: EC000196
  2. ETIM 3.0: EC000196
  3. ETIM 4.0: EC000196
  4. ETIM 5.0: EC001437

UNSPSC:

  1. UNSPSC 6.01: 30211916
  2. UNSPSC 7.0901: 39121515
  3. UNSPSC 11: 39121515
  4. UNSPSC 12.01: 39121515
  5. UNSPSC 13.2: 39121515

RELATED DOCUMENTS:

  1. DataSheet

PARAMETERS:

  1. Depth:15 mm
  2. Width: 5 mm
  3. Height: 28 mm

PACKAGE INCLUDES:

  1.  1 x Phoenix Contact Single Relay- REL-MR- 24DC/21 (2961105)
Part Number 2961105
Weight (KG) 0.006000
Manufacturer phoenix contact
Product Availability In Stock
Packing Unit 1 Piece
Minimum order quantity 10 pc
GTIN 4017918130893
Weight per Piece (excluding packing) 6.000 g
Custom tariff number 85364190
