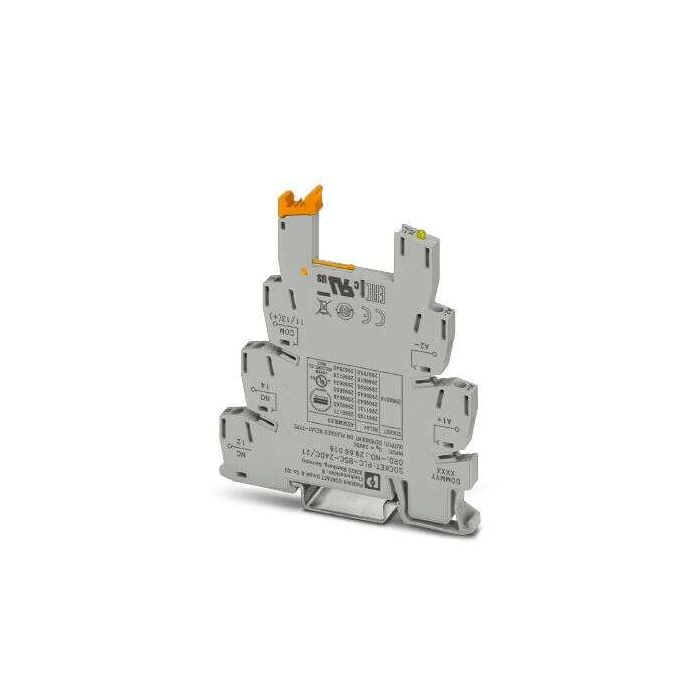

Phoenix Contact Relay Socket PLC-BSC- 24DC/21 - 2966016

FEATURES:

1. Connection name : Input side
2. Connection method : Screw connection
3. Stripping length : 8 mm
4. Screw thread : M3
5. Conductor cross section solid : 0.14 mm² ... 2.5 mm²
6. Conductor cross section flexible : 0.14 mm² ... 2.5 mm²
7. Conductor cross section AWG : 26 ... 14
8. Protective circuit : Damping diode, polarity protection diode
9. Operating mode : 100% operating factor
10. Flammability rating according to UL 94 : V0
11. Mounting position : any
12. Assembly instructions : In rows with zero spacing

SPECIFICATION:

1. Nominal input voltage UN : 24 V DC
2. Status display : LED
3. Protective circuit : Damping diode, polarity protection diode
4. Ambient temperature (operation) : -40 °C ... 60 °C
5. Ambient temperature (storage/transport) : -40 °C ... 85 °C
6. Connection name : Output side
7. Connection method : Screw connection
8. Stripping length : 8 mm
9. Screw thread : M3
10. Conductor cross section solid : 0.14 mm² ... 2.5 mm²
11. Conductor cross section flexible : 0.14 mm² ... 2.5 mm²
12. Conductor cross section AWG : 26 ... 14

RELATED DOCUMENTS:

1. Datasheet.

PARAMETERS:

1. Width: 6.2 mm
2. Height: 80 mm
3. Depth: 94 mm

PACKAGE INCLUDES:

1. 1 X Phoenix Contact Relay Socket PLC-BSC- 24DC/21 (2966016)
