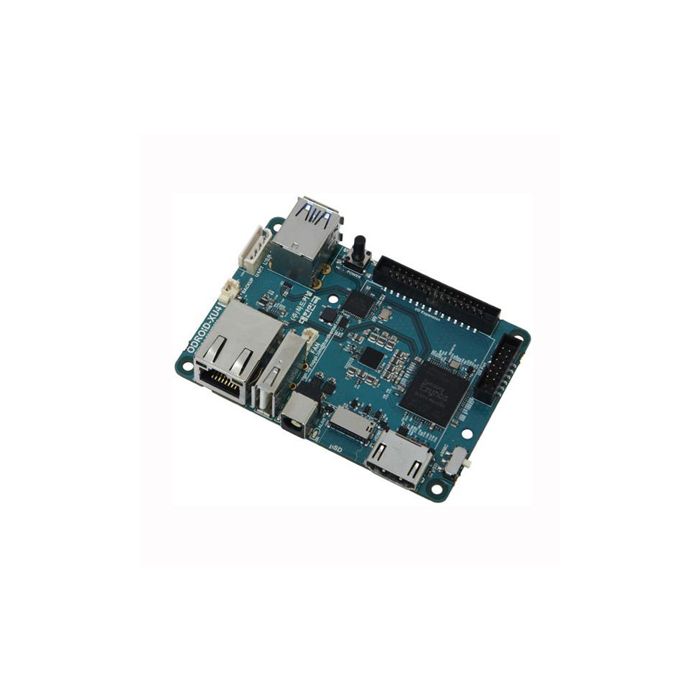

ODROID Model XU4 2GHz-Quad Core Mini Computer with A15/2Gb RAM
SKU
MD-00867
PKR15,600.00
Quantity: 0
ODROID Model XU4 2GHz-Quad Core Mini Computer with A15/2Gb RAM
- Buy 5 for PKR14,900.00 each and save 4%
Categories: Smart Boards, Electronics Parts, Development Boards
ODROID-XU4 is powered by ARM big.LITTLE™ technology, the Heterogeneous Multi-Processing (HMP) solution. ODROID-XU4 is a new generation of computing device with more powerful, more energy-efficient hardware and a smaller form factor. Offering open source support, the board can run various flavors of Linux, including the latest Ubuntu 16.04 and Android 4.4 KitKat, 5.0 Lollipop and 7.1 Nougat.By implementing the eMMC 5.0, USB 3.0 and Gigabit Ethernet interfaces, the ODROID-XU4 boasts amazing data transfer speeds, a feature that is increasingly required to support advanced processing power on ARM devices. This allows users to truly experience an upgrade in computing, especially with faster booting, web browsing, networking, and 3D games.
FEATURES:
- Samsung Exynos5422 Cortex™-A15 2Ghz and Cortex™-A7 Octa core CPUs
- Mali-T628 MP6(OpenGL ES 3.1/2.0/1.1 and OpenCL 1.2 Full profile)
- 2Gbyte LPDDR3 RAM PoP stacked
- eMMC5.0 HS400 Flash Storage
- 2 x USB 3.0 Host, 1 x USB 2.0 Host
- Gigabit Ethernet port
- HDMI 1.4a for display
- Size : 83 x 58 x 20 mm approx.(excluding cooler)
- Linux Kernel 4.9 LTS
SPECIFICATIONS:
| Processor | Samsung Exynos5422 ARM® Cortex™-A15 Quad 2.0GHz/Cortex™-A7 Quad 1.4GHz |
| Memory | 2Gbyte LPDDR3 RAM PoP (750Mhz, 12GB/s memory bandwidth, 2x32bit bus) |
| 3D Accelerator | Mali™-T628 MP6 OpenGL ES 3.1 / 3.0 / 2.0 / 1.1 and OpenCL 1.2 Full profile |
| Audio | HDMI Digital audio output. Optional SPDIF optical output (USB module) |
| USB3.0 Host | SuperSpeed USB standard A type connector x 2 port |
| USB2.0 Host | HighSpeed USB standard A type connector x 1 port |
| Display | HDMI 1.4a with a Type-A connector |
| Storage (Option) | eMMC module socket : eMMC 5.0 Flash Storage (up to 64GByte) MicroSD Card Slot (up to 128GByte) |
| Fast Ethernet LAN | 10/100/1000Mbps Ethernet with RJ-45 Jack ( Auto-MDIX support) |
| WiFi (Option) | USB IEEE 802.11 ac/b/g/n 1T1R WLAN with Antenna (External USB adapter) |
| HDD/SSD SATA interface (Optional) | SuperSpeed USB (USB 3.0) to Serial ATA3 adapter for 2.5"/3.5" HDD and SSD storage |
| Power Input | 4.8Volt~5.2Volt (5V/4A Power supply is recommended) |
| System Software | Ubuntu 16.04 + OpenGL ES + OpenCL on Linux Kernel 4.9 LTS Android 4.4.2 on Kernel LTS 3.10 Android 7.1 is available as a community driven OS development. |
| Size | 83 x 58 x 20mm approx. (weight: 38gram without cooler) |
RELATED DOCUMENTS:
RELATED VIDEO:
PACKAGE INCLUDES:
- 1 X ODROID Model XU4 2GHz-Quad Core Mini Computer with A15/2Gb RAM
| Part Number | NA |
|---|---|
| Weight (KG) | 0.034000 |
| Manufacturer | ODROID |
| Voltage (V) | 4.8~5.2 |
| Current (A) | 4 |
| Model | ODROID XU4 |
| Processor | Samsung Exynos5422 Cortex™-A15 2Ghz and Cortex™-A7 Octa core CPUs |
| Operating System | Ubuntu 16.04 + OpenGL ES + OpenCL on Linux Kernel 4.9 LTS / Android 4.4.2 on Kernel LTS 3.10 / Android 7.1 is available as a community driven OS development |
| Frequency | 2GHz |
| Hardrive | Optional-(eMMC 5.0 Flash Storage (up to 64GByte) , MicroSD Card Slot (up to 128GByte)) |
| Wifi | Optional |
| Bluetooth | No |
| Output Port | Audio and HDMI Port For Display |
| Num of Core | Quad |
| Num of Ports | 8 |
| Size (mm) | 83 x 58 x 20mm |
