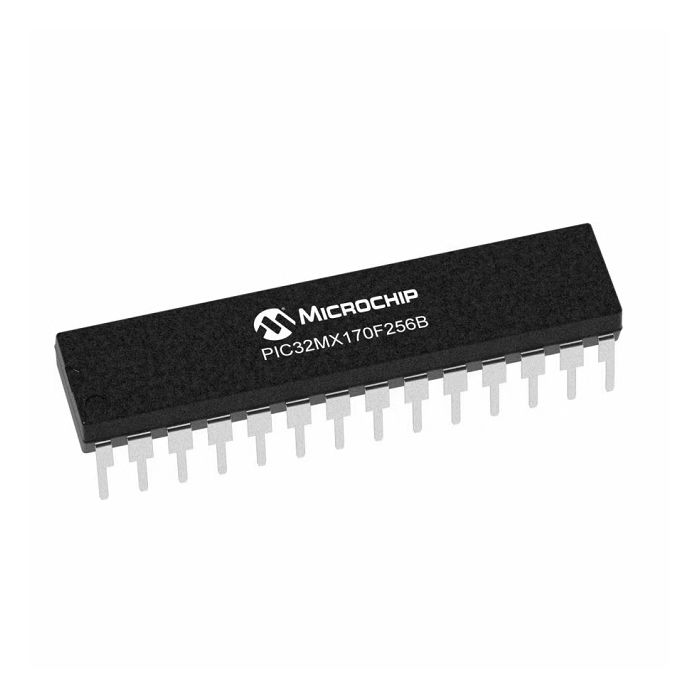

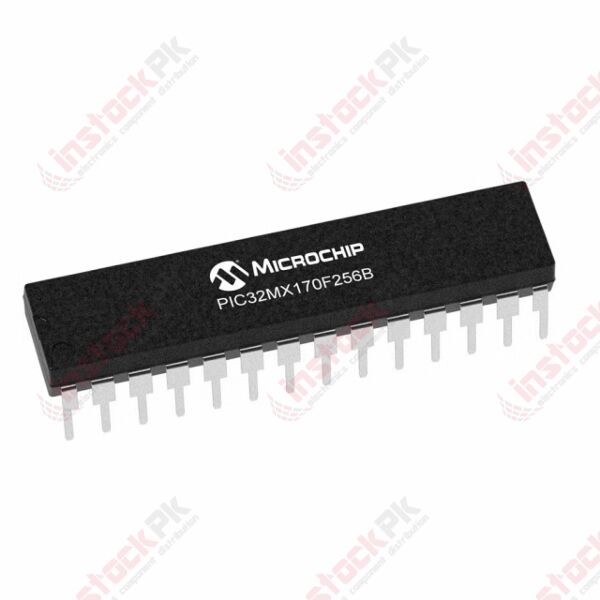

Microchip: 32-bit RISC Microcontroller 50-MHz, 83 DMIPS, 256KB/64KB - PIC32MX170F256B-50I/SP
SKU
IC-02152
PKR2,350.00
Quantity: 70
- Buy 3 for PKR2,232.50 each and save 5%
- Buy 10 for PKR2,162.00 each and save 8%
- Buy 50 for PKR1,997.50 each and save 15%
Category: Micorocontroller
Product Features
- Up to 50 MHz/83 DMIPS, 32-bit RISC CPU with 0.5 mA/MHz current consumption (Typical)
- Two I2S/SPI modules for Codec and serial communications
- Peripheral Pin Select (PPS) functionality
- Parallel Master Port (PMP) for graphics interfaces
- Supports mTouchTM Capacitive touch buttons and sliders
- Provides high-resolution time measurement (1 ns)
- On-chip temperature measurement capability
- Temperature Range - 40°C to 105°C
- Operating voltage range of 2.3V to 3.6V
- 256KB Flash memory (plus an additional 3 KB of Boot Flash)
- 64K SRAM memory
- 1.65 DMIPS/MHz (Dhrystone 2.1) performance
- MIPS32® M4K® core with MIPS16e® mode for up to 40% smaller code size
- Pin-compatible with most Microchip 16-bit devices
- Multiple power management modes
- Configurable WDT with on-chip Low-Power RC oscillator for reliable operation
- Peripheral Pin Select (PPS) functionality
- Up to 4 channels of hardware DMA with automatic data size detection
- Two UART and I2C™ modules
- Separate PLLs for CPU and USB clocks
- Hardware Real-Time Clock and Calendar (RTCC)
- Five 16-bit Timers/Counters (two 16-bit pairs combine to create two 32-bit timers)
- Five Capture inputs and Five Compare/PWM outputs
- Data communication: I2S, LJ, RJ, DSP modes
- Control interface: SPI and I2C™
- Generation of fractional clock frequencies
- Can be synchronized with USB clock
- Can be tuned in run-time
- Up to 13-channel, 10-bit ADC
- Three Analog Comparators
- Charge Time Measurement Unit (CTMU)
- Four programming and debugging Interfaces
- IEEE Standard 1149.2 compatible (JTAG) boundary scan
Parametrics
| Part Family | PIC32MX1xx |
| CPU Type | 32-bit MIPS MCU |
| MaxSpeed (MHz) | 50 |
| Program Memory Size (KB) | 256 |
| SRAM (KB) | 64 |
| Temp. Range Min. | -40 |
| Temp. Range Max. | 105 |
| Operation Voltage Min.(V) | 2.3 |
| Operation Voltage Max.(V) | 3.6 |
| SPI | 2 -SPI |
| I2C | 2 |
| UART | 2 |
| Crypto Engine | No |
| Internal Oscillator | 8 MHz, 32 kHz |
| Pin Count | 28 |
| Part Number | PIC32MX170F256B-50I/SP |
|---|---|
| Manufacturer | Microchip |
| Weight (KG) | 0.010000 |
| Connectivity | NA |
| Frequency | External MaxSpeed (MHz): 50 || Internal Oscillator: 8 MHz, 32 kHz |
| SMD_Package | PDIP-28 |
| Memory | 256 KB |
| memory_type | SDRAM |
| Product Availability | In Stock |
