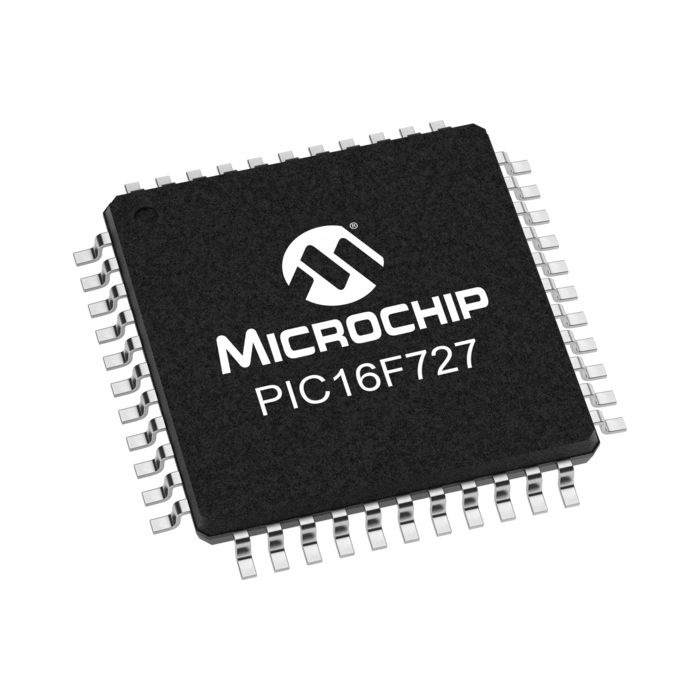

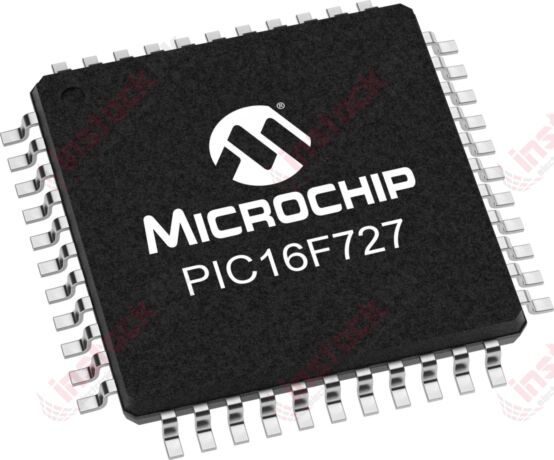

Microchip: PIC Microcontroller PIC16F727 20MHz 14KB TQFP-44 PIC16F727-I/PT 16F727
PKR 480.00
Only 8 left
SKU
MD-01567
- Buy 3 for PKR 456.00 each and save 5%
- Buy 10 for PKR 441.60 each and save 8%
- Buy 50 for PKR 408.00 each and save 15%
- Buy 250 for PKR 384.00 each and save 20%
MICROCHIP TECHNOLOGY PIC16F727-I/P | PIC microcontroller; Memory: 14kB; SRAM: 368B; THT; DIP40 - This product is available in Transfer Multisort ...
This versatile 40-pin device is also a member of Microchip's Extreme Low Power family of MCUs featuring nanoWatt XLP(TM) Technology.
Features:
- Mid-Range core with 35 Instruction, 8 Stack Levels
- Flash Program Memory
- Internal 16MHz oscillator
- I²C, SPI, AUSART
- 2 X CCP (Caputure/Compare/PWM)
- 14 Channel 8b ADC
Additional Features
- Mid-Range core with 35 Instruction, 8 Stack Levels
- Flash Program Memory
- Internal 16MHz oscillator
- I²C, SPI, AUSART
- 2 X CCP (Caputure/Compare/PWM)
- 14 Channel 8b ADC
- 25mA Source/Sink current I/O
- One 8-bit Timer (TMR0)
- Two 16-bit Timer (TMR1/TMR2)
- Watchdog Timer (WDT)
- Enhanced Power-On/Off-Reset
- Brown-Out Reset (BOR)
- In Circuit Serial Programming™ (ICSP™)
- Built-in mTouch™ capacative sensing module
- Wide Operation Voltage Variant ‘F’ (1.8V – 5.5V)
- eXtreme Low Power (XLP) ‘LF’ Variant (1.8V – 3.6V)
| Part Number | PIC16F727-I/PT |
|---|---|
| Manufacturer | Microchip |
| Weight (KG) | 0.001000 |
| Connectivity | NA |
| Frequency | NA |
| SMD_Package | TQFP-48 |
| Memory | NA |
| memory_type | Flash |
| Product Availability | In Stock |
