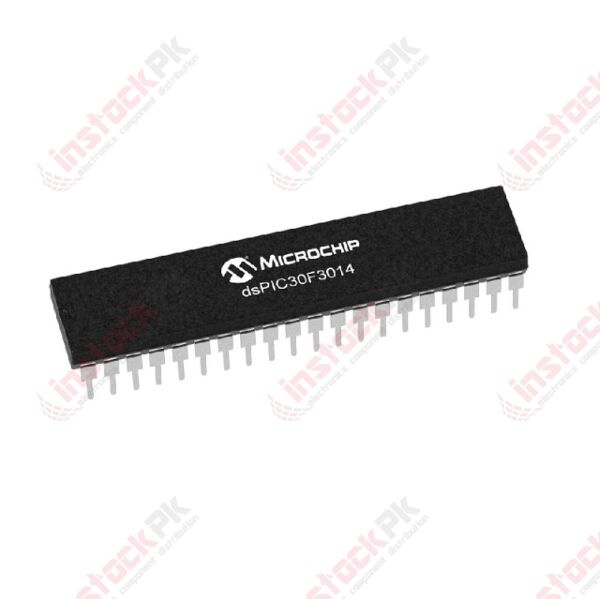

MicroChip: dsPIC30F Motor Control 16-bit Digital Signal MicroController - dsPIC30F3014-30I/P
SKU
MD-01807
PKR2,950.00
Quantity: 0
dsPIC30F Motor Control 16-bit Digital Signal Controller. Seamless migration options from this device to dsPIC33F and PIC24 devices in similar packages.
- Buy 3 for PKR2,802.50 each and save 5%
- Buy 10 for PKR2,714.00 each and save 8%
Category: Micorocontroller
Product Features
- High-Performance dsPIC30F core
- Modified Harvard architecture
- C compiler optimized instruction set architecture
- 24-bit wide instructions, 16-bit wide data path
- Up to 30 MIPS operation
- DSP Engine for math intensive operations
- Modulo and Bit-Reversed Addressing modes
- Two, 40-bit wide accumulators with optional saturation logic
- 17-bit x 17-bit single cycle hardware fractional/ integer multiplier
- Single cycle Multiply-Accumulate (MAC) operation
- 40-stage Barrel Shifter
- Dual data fetch
- Operating Conditions
- Wide operating voltage range (2.5V to 5.5V)
- Industrial and Extended temperature ranges
- Peripheral Features
- High current sink/source I/O pins: 25 mA/25 mA
- Optionally pair up 16-bit timers into 32-bit timer modules
- 3-wire SPI™ modules (supports 4 Frame modes)
- I2C™ module supports Multi-Master/Slave mode and 7-bit/10-bit addressing
- Addressable UART modules with FIFO buffers and selectable pins
- Data Converter Interface (DCI) supports common audio Codec protocols, including I2S and AC’97
- Analog Features
- 12-bit 200 Ksps Analog-to-Digital Converter (A/D)
- A/D Conversion available during Sleep and Idle
- 1 Sample/Hold
- Multiple Conversion Sequencing Options
- Special Microcontroller Features
- Enhanced Flash program memory with 10,000 erase/write cycle (min.) for industrial temperature range, 100K (typical)
- Data EEPROM memory with 100,000 erase/write cycle (min.) for industrial temperature range, 1M (typical)
- Self-reprogrammable under software control
- Power-on Reset (POR), Power-up Timer (PWRT) and Oscillator Start-up Timer (OST)
- Flexible Watchdog Timer (WDT) with on-chip low power RC oscillator for reliable operation
- Fail-Safe clock monitor operation
- Detects clock failure and switches to on-chip low power RC oscillator
- Programmable code protection
- In-Circuit Serial Programming™ (ICSP™)
- DC to 40 MHz external clock input
- Internal FRC input with PLL active (4x, 8x, 16x)
- 4 MHz-10 MHz oscillator input with PLL active (4x, 8x, 16x)
- 10 MHz - 20 MHz oscillator input in HS/2 or HS/3 with PLL active (4x, 8x, 16x)
- Programmable Brown-out Detection and Reset generation
- Sleep, Idle and Alternate Clock modes for power management
Parametrics
Click on a property to perform a parametric search for other products with that property.
| Max ADC Resolution (bits) | 12 |
| Number of ADCs | 1 |
| Max ADC Sampling Rate (ksps) | 200 |
| Architecture | 16 |
| Program Memory Size (KB) | 24 |
| Type of CAN module | None |
| Class B Safety Library | False |
| CPU Speed (MIPS/DMIPS) | 30 |
| Peripheral Pin Select (PPS)/Pin Muxing | No |
| DigitalTimerQty_16bit | 3 |
| DigitalTimerQty_32bit | 1 |
| Multiple Flash Panels | False |
| LCD/Graphics Interface | No |
| Hardware RTCC | No |
| I2C | 1 |
| MaxPWMoutputs | 2 |
| MaxSpeed (MHz) | 120 |
| mtrlcntrlinputcapture | 2 |
| ADC Channels | 13 |
| Number of PWM Time Bases | 1 |
| Low Power | No |
| Operating Voltage | 2.5 - 5.5 |
| Output Compare Channels | 2 |
| Pin Count | 40 |
| PTG | False |
| Crypto Engine | No |
| SPI | 1 |
| Temp Range (°C) | -40 - 125 |
| USART | 2 |
| USB Interface | None |
| Part Number | dsPIC30F3014-30I/P |
|---|---|
| Manufacturer | Microchip |
| Packing Unit | 1 Piece |
| Product Availability | Available on Demand |
