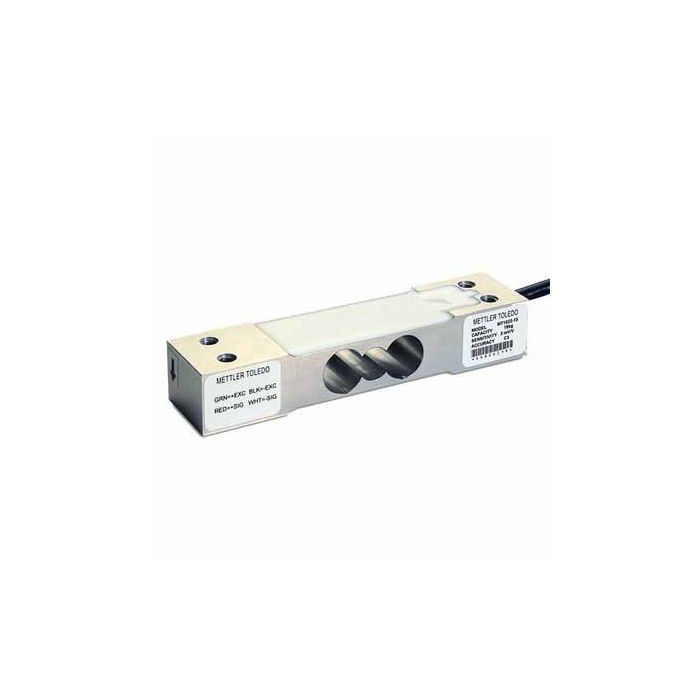

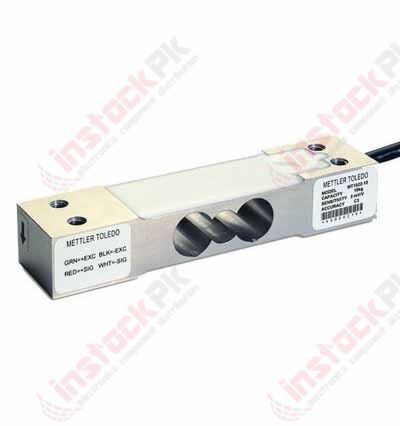

Mettler Toledo Electronic Weight Sensor MT1022 Load Cell (3~30Kg)
SKU
MD-00752
Special Price
PKR 87,500.00
was
PKR 97,500.00
Mettler Toledo Electronic Weight Sensor-MT1022 Load Cell (3~30Kg)
📦 Pre-Order Queue:
0 Units
⚠ Available on Backorder (In 15-30 business days)
Categories: Smart Boards, Sensors, Sensor Modules, Electronics Parts, Others
MT1022 is a low capacity single point load cells and can be used individually in smaller bench scales and retail scales. The moment insensitive design allows for simple installations. This load cell is available in the capavities: 3, 5, 7, 10, 15, 20, 30 kg.
SPECIFICATIONS:
- Maximum Capacity: 3kg - 30kg (7lb - 66lb)
- Material: Aluminium
- Applications: Bench and retail scales with max. platform 350x350mm
- Cable length: 1m ,3m
- Protection class: Potted IP67
- Approval: OIML C3, NTEP III M 3000
- Hazardous area approval: ATEX standard on each load cell
- Material Number(s): 71207450
RELATED DOCUMENTS:
PACKAGE INCLUDES:
- 1 X Mettler Toledo Electronic Weight Sensor-MT1022 Load Cell (3~30Kg)
| Part Number | MT1022 |
|---|---|
| Weight (KG) | 0.020000 |
| Manufacturer | Mettler Toledo |
| Product Availability | Available on Demand |
| Voltage (Min) | 5V |
| Voltage (Max) | 15V |
| Output Voltage | NA |
| Power | NA |
| Frequency | NA |
| Load Cell (kg) | 3~30Kg |
| Output Type | Voltage Signal |
| Range | 3/5/7/10/15/2030kg |
| Temperature Range (Min) | -20°C |
| Operating System | NA |
| Resistance Value (Ohm) | NA |
| Baud Rate | NA |
| Interface | NA |
| Num of Pin's | 4 |
| Diameter | NA |
| Size (mm) | NA |
