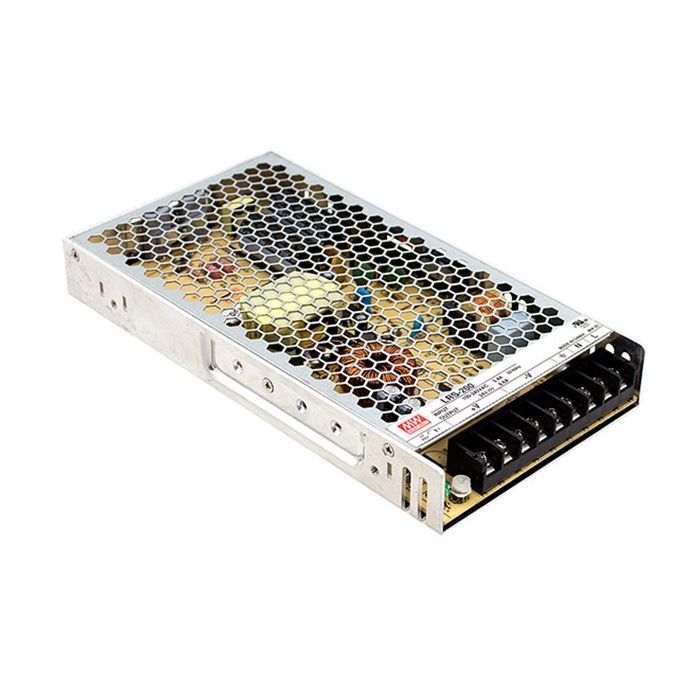

MeanWell: Switching Power Supply 200W 5V 40A - LRS-200-5
SKU
MD-01425
PKR10,600.00
Quantity: 1
Product features
- Primary output voltage (vdc): 5
- Output current (a): 40
- Maximum output power (w): 200
- Family: lrs-200
- Input voltage (vac): 90 to 132, 180 to 264
- Buy 3 for PKR10,070.00 each and save 5%
- Buy 10 for PKR9,752.00 each and save 8%
- Buy 25 for PKR9,540.00 each and save 10%
Category: Power Supply
Product Attributes
| Type | Description |
| Categories | Power Supplies - External/Internal (Off-Board) |
|---|---|
| AC DC Converters | |
| Manufacturer | MEAN WELL USA Inc. |
| Series | LRS-200 (200W) |
| Part Status | Active |
| Type | Enclosed |
| Number of Outputs | 1 |
| Voltage - Input | 90 ~ 132 VAC, 180 ~ 264 VAC, 240 ~ 370 VDC |
| Voltage - Output 1 | 5V |
| Voltage - Output 2 | - |
| Voltage - Output 3 | - |
| Voltage - Output 4 | - |
| Current - Output (Max) | 40A |
| Power (Watts) | 200W |
| Applications | ITE (Commercial) |
| Voltage - Isolation | 3kV |
| Efficiency | 87% |
| Operating Temperature | -25°C ~ 70°C (With Derating) |
| Features | Adjustable Output, Universal Input |
| Mounting Type | Chassis Mount |
| Size / Dimension | 8.46" L x 4.53" W x 1.18" H (215.0mm x 115.0mm x 30.0mm) |
| Part Number | LRS-200-5 |
|---|---|
| Manufacturer | Mean Well |
| Weight (KG) | 0.800000 |
| Product Availability | In Stock |
| Voltage (V) | 5 |
| Output Voltage | 5V |
| Output Impedance | NA |
| Power | 200W |
| Current (A) | 40 |
| Temperature Range (Max) | NA |
| Temperature Range (Min) | NA |
