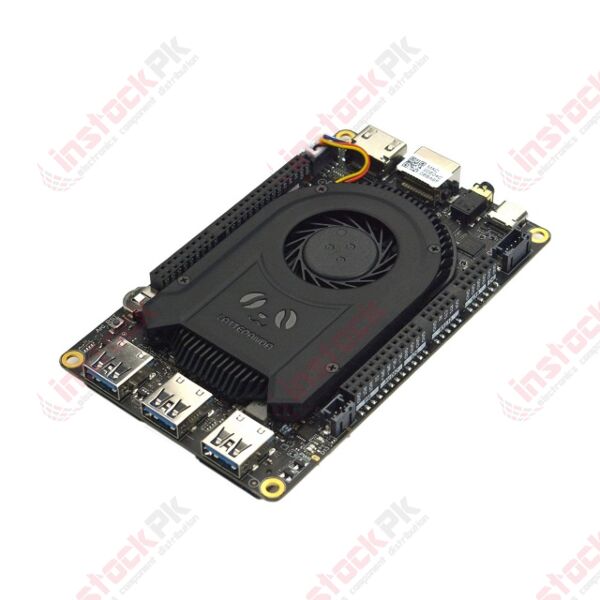

LattePanda: 3 Delta 864 Pocket-Sized Windows/Linux Single Board Computer (8GB RAM/64GB eMMC)
LattePanda 3 Delta Single Board Computer now features a 2.5G Ethernet port for superior performance!
ULTRA PERFORMANCE IN A POCKET SIZE
LattePanda 3 Delta is an x86 single board computer powered by the Intel N5105 quard-core processor. With the Intel turbo boost technology, it can reach speeds of up to 2.9 GHz. Compared to the previous LattePanda 2 Delta, the CPU speed has been doubled, while the GPU speed has been tripled. It's ideally suited for tasks such as image processing, edge computing, automation control, and more.
.png "LattePanda 3 Delta x86 single board computer CPU")
.png "LattePanda 3 Delta windows 10 SBC Faster than ever")
POCKET SIZE
The ultra-slim and pocket size of the LattePanda 3 Delta Windows 10 single board computer allows for integration into space-constrained devices, delivering powerful computation without occupying much space.
The dimensions, interfaces, and layout of the LattePanda 3 Delta closely resemble those of the previous LattePanda 2 Delta, ensuring a seamless migration or upgrading of your projects.
FASTER MEMORY，LARGER STORAGE
LattePanda 3 Delta is equipped with 8GB 2933MHz LPDDR4 high-speed memory, twice as much as LattePanda 2 Delta, ensuring smooth performance during large data processing and multitasking. Moreover, its eMMC storage capacity has been upgraded to 64GB, doubling that of the previous version, allowing for more professional software and data without requiring additional storage.
WINDOWS & LINUX COMPATIBLE
LattePanda 3 Delta comes pre-installed with the Windows 10 operating system and offers seamless compatibility with both Windows 11 and various Linux operating systems.
3-WAY VIDEO OUTPUT
The LattePanda 3 Delta x86 single board computer provides three video outputs: HDMI, Type C, and eDP, all supporting dual 4K HDR. This not only ensures the display of high-definition and realistic images but can also fulfill several displays either showing the same content collectively or presenting different content.
RICH EXPANDABLE INTERFACES
This industrial single-board computer is equipped with a multitude of interfaces, such as USB, HDMI, RS232, GPIO, Ethernet, eDP, and more. These versatile interfaces cater to a diverse range of industry demands.
In addition, LattePanda 3 Delta x86 SBC features M.2 B Key and M.2 M Key slots, allowing for the expansion of M.2 NVMe or SATA SSDs as well as 4G/5G communication modules.
PROFESSIONAL AND INSTANT TECHNICAL SUPPORT
To meet the needs of industry users, LattePanda team provides fast and efficient technical support services. Whether it's installation and configuration, troubleshooting, or system integration, the dedicated technical team at LattePanda is always here to ensure the stability and smoothness of your project. Kindly reach out to techsupport@lattepanda.com.
CUSTOMIZED SOLUTIONS
LattePanda series single board computer supports special customization, including hardware and interface modifications, customized boot screens, BIOS feature adjustments, customized operating systems, and so on. If you have any specific requirements, please feel free to contact lattepanda@outlook.com. The LattePanda team is dedicated to providing prompt and professional support to cater to your customization needs.
RIGOROUS CERIFICATIONS
LattePanda series single-board computer has obtained multiple international certifications, such as CE, FCC, KC, and RoHS, ensuring device safety and reliability. These certifications not only enhance the market competitiveness of the products but also simplify the certification process for the whole system.
TWO MODELS
The LattePanda 3 Delta presents two models for your consideration. This page features the LattePanda 3 Delta x86 SBC without Win10 IoT Enterprise License.
Features
- Low-Power, High-Performance, Intel N5105 quad-core mobile processor with the 10W TDP
- 8GB RAM and 64GB eMMC, ensure smooth multitasking and reliable app performance
- ULTRA-FAST connectivity: With a lightning-fast Wi-Fi 6 and 2.5 Gigabit Ethernet, stream videos or download massive files quickly
- High-Speed Data Transfer: 1 x USB3.2 gen2, 2x USB 3.2 gen1, up to 20X faster than USB2.0
- Dual 4K HDR and 3-Way Video Output, including HDMI, DisplayPort over USB-C, and eDP for superb flexibility
- Dual M.2 Slot Expansion, M.2 B key for 4G/5G module and SATA SSD, M.2 M key for NVMe SSD
- Rich GPIOs and Integrated Arduino Coprocessor ATmega32U4, compatible with 200+ sensors and actuators
- Multiple OS Support,Windows (Windows 10 and Windows 11) & Linux (ubuntu, etc.) OS
- Enhanced BIOS Function: Auto Power On, Watchdog Timer, Serial Port Redirection, etc.
Applications
Specification
| Porcessor: | Intel® Celeron® N5105 |
| CPU: | 2.0~2.9GHz Quad-Core, Four-Thread |
| Graphics: | Intel® UHD Graphics (Frequency: 450 – 800MHz) |
| Memory: | LPDDR4 8GB 2933MHz |
| Storage: | 64GB eMMC V5.1 |
| Expansion Slots: | 1x M.2 M Key (2280), PCIe 3.0 2x, Supports NVMe SSD 1x M.2 B Key (2242/2252/2280), USB 2.0, USB 3.0, SIM, SATA (Option support PCIe 3.0 1x), Supports 4G & 5G module |
| Network Connectivity: |
1x Wi-Fi 6 @ 2.4GHz &5 GHz (160MHz) 1x Bluetooth 5.2 1x Intel 2.5 Gigabit Ethernet |
| USB Ports: | 2x USB 3.2 Gen1 Type A 1x USB 3.2 Gen2 Type A 1x USB Type C, Supports PD, DP, USB 2.0 1x USB 2.0 Pin Header |
| Display: | 1x HDMI 2.0b: Up to 4096x2160 @ 60Hz HDR 1x DP 1.4: Up to 4096x2160 @ 60Hz HDR 1x eDP: 30 Pins, 2 lanes, Extendable Touch Displays up to 1920*1080 |
| TPM: | built-in TPM (2.0) |
| Co-processor: | Arduino Leonardo ATMEGA32U4 |
| Audio: | Microphone + Headphone Combo Connector |
| GPIO & Other Features | Up to 12x Analog Inputs Up to 20x Digital Input/Output (7 PWM) 1x UART 1x I2C 1x SPI 1x Audio Header 1x RS232 Header 1x USB 2.0 Header 1x Fan Port (4 Pins, 1.25mm, PWM, 5V) 1x 4-Pin Header (Power and Switch) |
| OS Support: | Windows 10 & Windows 11 & Linux |
| Input Power: | PH2.0 - 4Pin DC Input: 12V USB Type-C PD Input: 15V DC |
| RTC Battery: | CR927 |
| Dimension: | 125 x 78 x 16mm |
| Operating Temperature: | 0°C~60°C |
| Certification: | CE, FCC, KC, RoHS |
Whats in the Box
- LattePanda 3 Delta x1
- Active Cooling Fan (Assembled) x1
- 45w PD Power Adapter (with EU & US Standard Power Cord) x1
- Dual-band Antenna x2
- RTC Battery (Assembled）x 1
- User Manual x 1
| Part Number | DFR0981 |
|---|---|
| Manufacturer | LattePanda |
| Weight (KG) | 0.200000 |
| Packing Unit | 1 Piece |
| Product Availability | Available on Demand |
