LattePanda - Alpha 864s (Win10 Pro activated) - DFR0547

SKU

MD-01590

Skip to the beginning of the images gallery

PKR238,000.00

Quantity: 0

Alpha Edition - Generally refers to the leader in a wolf pack, α / Alpha. It will also be the leader in the LattePanda series, the most powerful in performance. Known as the leader of the Pandas, or "AlphaPanda" for short.

Buy 3 for PKR226,100.00 each and save 5%
Buy 10 for PKR218,960.00 each and save 8%

Notify me when the price drops

Category: Single Board Computer

Details

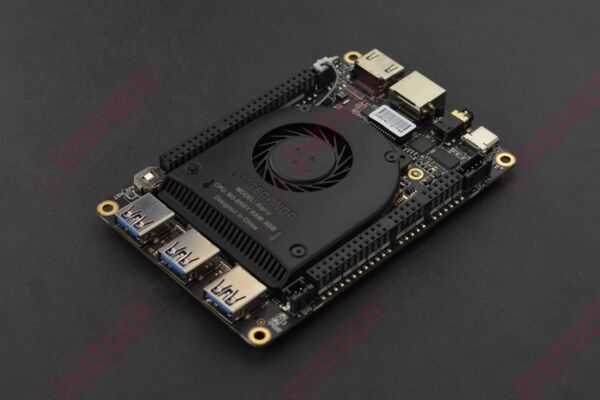

LattePanda Alpha uses Intel Core m3 processor, which is the same as the latest MacBook. The Core m3 processor is the perfect choice for superior performance and low power consumption. With its own 8GB RAM and 64GB eMMC, M.2 interface SSD support and rich GPIO extension ports, Alpha can meet most of the application needs.

We are shipping Windows 10 Pro this time but we have also added Linux Compatibility, Windows and Linux dual OS support. Because we saw the different needs of users from our 1st Gen products.

The LattePanda Alpha & Delta Lineup

Solid Spec and extreme design
Dual OS support - Windows / Linux
Ultimate networking on Cloud and Things
Up to 42 Extendable interfaces bring rich playabilities
Ultra-thin Design, minimizing space occupation
Rebuild how to code efficiently with Multible OS

CPU：Intel 8th m3--8100y
Core：1.1-3.4GHz Dual-Core，Four-Thread
Benchmark (PassMark): Up to 4128, double computing power compared with same price range products in the market
Graphics：Intel HD Graphics 615, 300-900MHz
RAM：8G LPDDR3
eMMC：64GB
External Memory：

1x M.2 M Key, PCIe 4x, Supports NVMe SSD and SATA SSD
1x M.2 E Key, PCIe 2x，Supports USB2.0, UART, PCM

Connectivity：WIFI 802.11 AC, 2.4G & 5G
Dual Band Bluetooth 4.2
Gigabyte Ethernet
USB Ports：3x USB 3.0 Type A / 1x USB Type C, supports PD, DP, USB 3.0
Display：HDMI Output / Type-C DP Support / Extendable eDP touch displays
Co-processor：Arduino Leonardo
GPIO & Other Features：2x 50p GPIOs including I2C, I2S, USB, RS232, UART, RTC，Power Management，Extendable power button，everything you need
OS Support：Windows 10 Pro / Linux Ubuntu
Dimension: 115mm * 78mm * 14 mm
